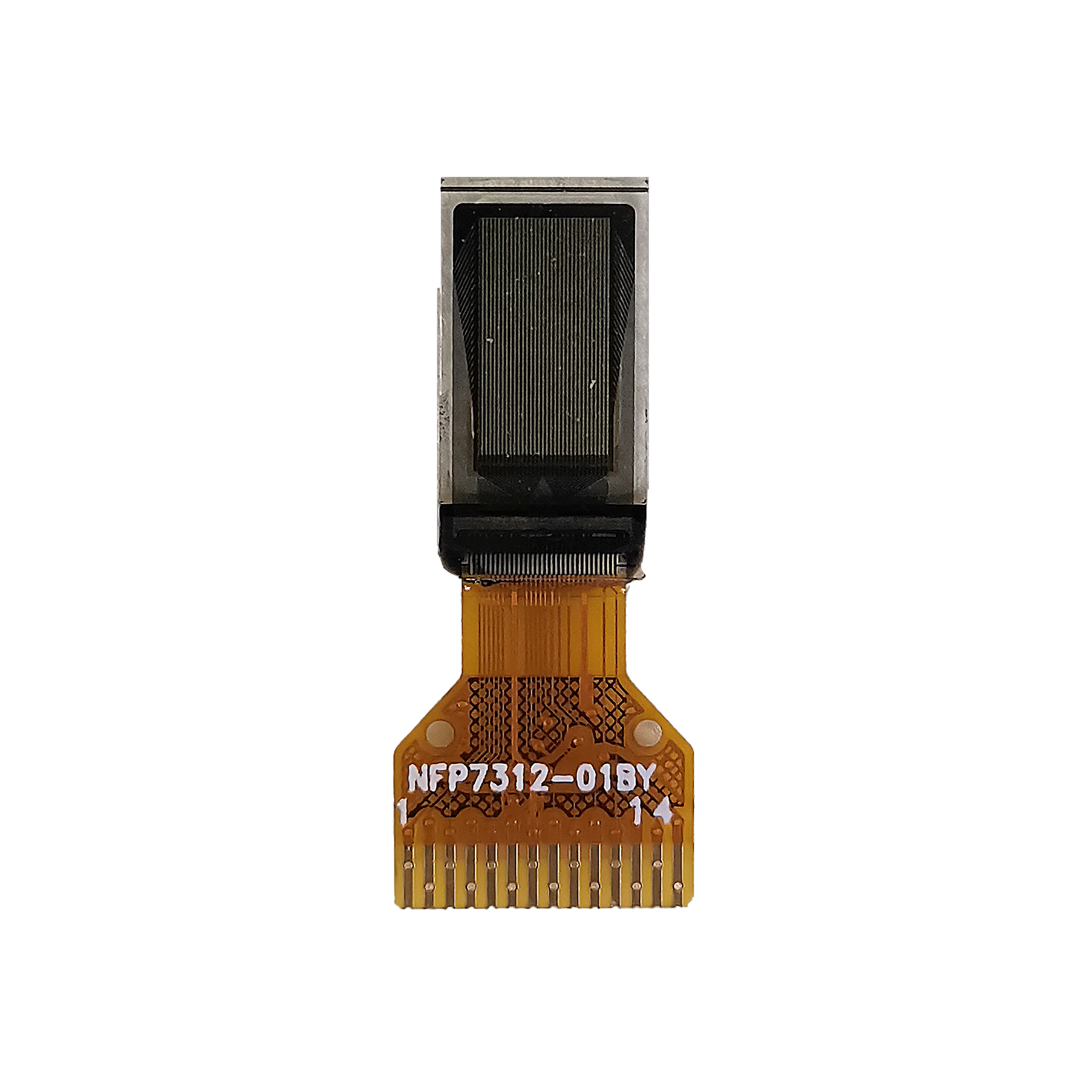

0.31“ Micro 32 × 62 Dots OLED Display Module Screen

Short Description:


  • Model No: X031-3262TSWFG02N-H14
  • Size: 0.31 inch
  • Pixels: 32 x 62
  • A.A: 3.82 x 6.986 mm
  • Outline: 6.2×11.88×1.0 mm
  • Brightness: 580 (Min)cd/m²
  • Interface: I²C
  • Driver IC: ST7312
  • Product Detail

    Product Tags

    General Description

    Display Type OLED
    Brand name WISEVISION
    Size 0.31 inch
    Pixels 32 x 62 Dots
    Display Mode Passive Matrix
    Active Area (A.A) 3.82 x 6.986 mm
    Panel Size 76.2×11.88×1.0 mm
    Color White
    Brightness 580 (Min)cd/m²
    Driving Method Internal supply
    Interface I²C
    Duty 1/32
    Pin Number 14
    Driver IC ST7312
    Voltage 1.65-3.3 V
    Weight TBD
    Operational Temperature -40 ~ +85 °C
    Storage Temperature -65 ~ +150°C

    Product Information

    X031-3262TSWFG02N-H14 is a 0.31-inch passive matrix OLED display module which is made of 32 x 62 dots. The module has the outline dimension of 6.2×11.88×1.0 mm and Active Area size 3.82 x 6.986 mm. The OLED micro display is built in with ST7312 IC, it supports I²C interface, 3V power supply. The OLED Display Module is a COG structure OLED display which is no need of backlight (self-emissive); it's lightweight and low power consumption. the supply voltage for logic is 2.8V (VDD), and the supply voltage for display is 9V(VCC). The current with 50% checkerboard display is 8V (for white color), 1/32 driving duty.

    The OLED display module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -65℃ to +150℃.This small sized OLED module is suitable for mp3, portable device, voice recorder pen, health device, E-Cigarette, etc.



    X031-3262TSWFG02N-H14 is a 0.31-inch passive matrix OLED display module which is made of 32 x 62 dots.  The module has the outline dimension of 6.2×11.88×1.0 mm and Active Area size 3.82 x 6.986 mm.

    Below Are The Advantages Of This Low-power OLED Display

    1、Thin–No need of backlight, self-emissive

    ►2、Wide viewing angle :Free degree

    3、High Brightness: 650 cd/m²

    4、High contrast ratio(Dark Room): 2000:1

    ►5、High response speed(<2μS)

    6、Wide Operation Temperature

    ►7、Lower power consumption

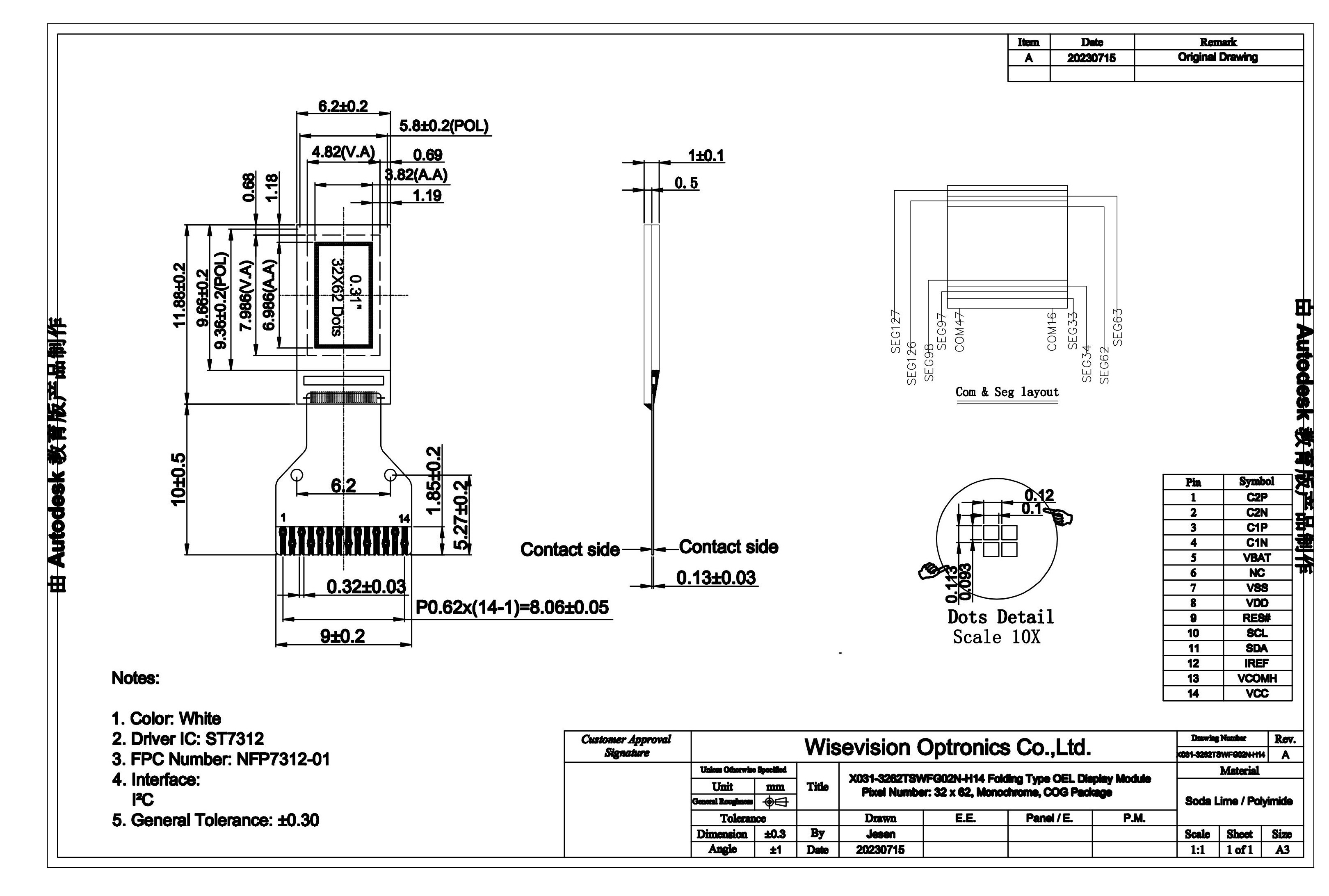

    Mechanical Drawing

    X031-3262TSWFG02N-H14-Model(1)
