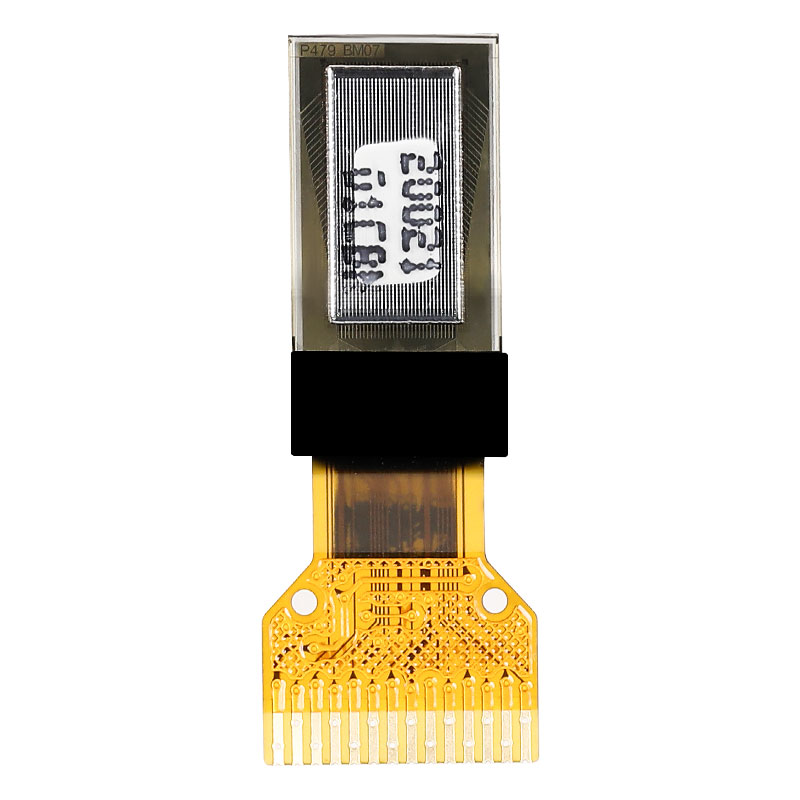

0.33“ Micro 32 x 62 Dots OLED Display Module Screen
General Description
| Display Type | OLED |
| Brand name | WISEVISION |
| Size | 0.33 inch |
| Pixels | 32 x 62 Dots |
| Display Mode | Passive Matrix |
| Active Area (A.A) | 8.42×4.82 mm |
| Panel Size | 13.68×6.93×1.25 mm |
| Color | Monochrome (White) |
| Brightness | 220 (Min)cd/m² |
| Driving Method | Internal supply |
| Interface | I²C |
| Duty | 1/32 |
| Pin Number | 14 |
| Driver IC | SSD1312 |
| Voltage | 1.65-3.3 V |
| Weight | TBD |
| Operational Temperature | -40 ~ +85 °C |
| Storage Temperature | -40 ~ +85°C |
Product Information
N033-3262TSWIG02-H14 is a 0.33-inch passive matrix OLED display module which is made of 32 x 62 dots.
The module has the outline dimension of 13.68×6.93×1.25 mm and Active Area size 8.42×4.82 mm.
The OLED micro display is built in with SSD1312 IC, it supports I²C interface, 3V power supply.
The OLED Display Module is a COG structure OLED display which is no need of backlight (self-emissive); it's lightweight and low power consumption.
The supply voltage for logic is 2.8V (VDD), and the supply voltage for display is 9V(VCC).
The current with 50% checkerboard display is 8V (for white color), 1/32 driving duty.
The OLED display module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.
This small sized OLED module is suitable for mp3, portable device, voice recorder pen, health device, E-Cigarette, etc.
Below are the advantages of this low-power OLED display:
1. Thin–No need of backlight, self-emissive;
2. Wide viewing angle :Free degree;
3. High Brightness: 270 cd/m²;
4. High contrast ratio(Dark Room): 2000:1;
5. High response speed(＜2μS）;
6. Wide Operation Temperature;
7. Lower power consumption.

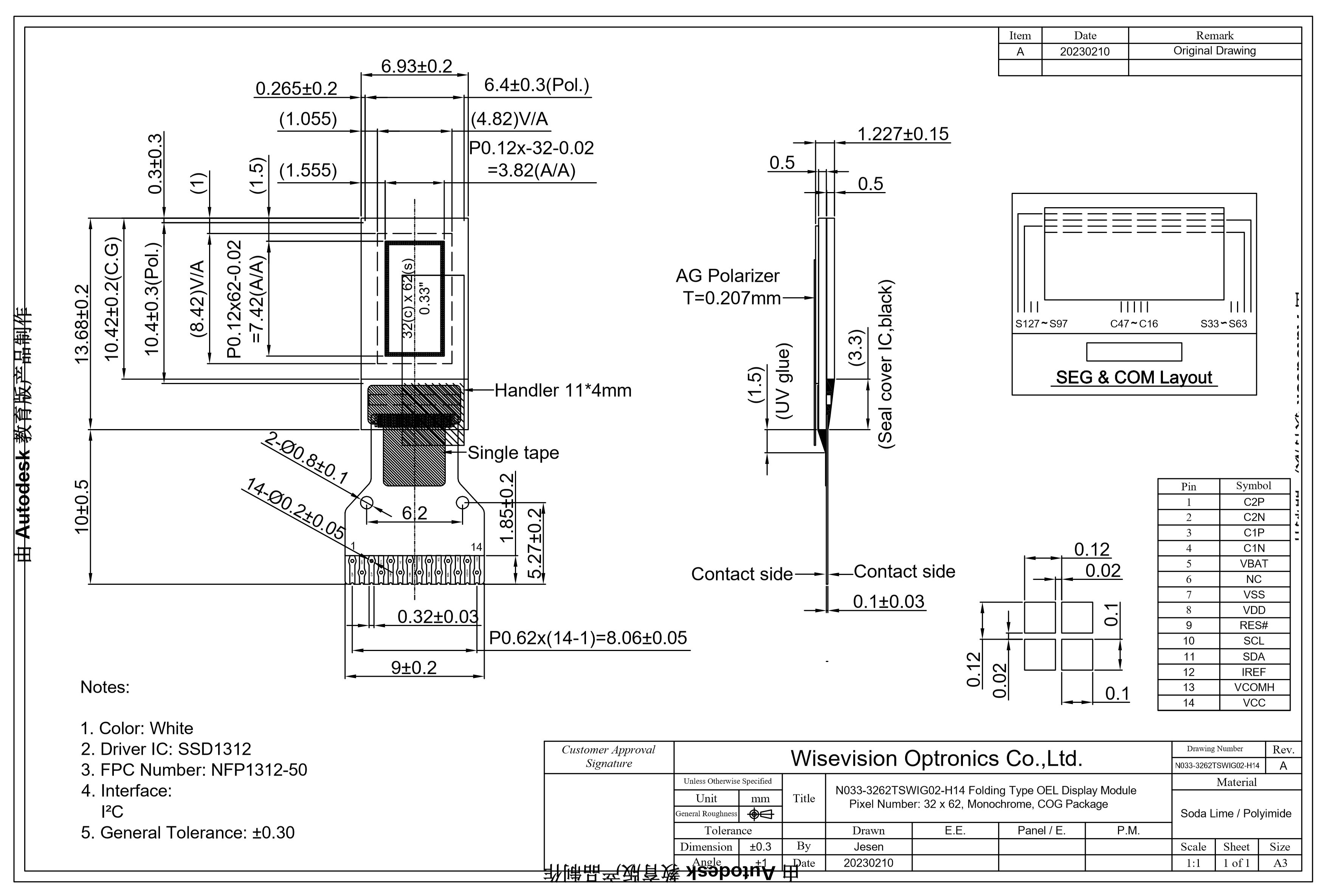

Mechanical Drawing
