0.35“ Micro OLED Display Module Screen

Short Description:


  • Model No: X035-0504KSWAG01-H09
  • Size: 0.35 inch
  • Pixels: 20 Icon
  • A.A: 7.7582×2.8 mm
  • Outline: 12.1×6×1.2 mm
  • Brightness: 300 (Min)cd/m²
  • Interface: MCU-IO
  • Driver: IC
  • Product Detail

    Product Tags

    General Description

    Display Type OLED
    Brand name WISEVISION
    Size 0.35 inch
    Pixels 20 Icon
    Display Mode Passive Matrix
    Active Area (A.A) 7.7582×2.8 mm
    Panel Size 12.1×6×1.2 mm
    Color White/Green
    Brightness 300 (Min)cd/m²
    Driving Method Internal supply
    Interface MCU-IO
    Duty 1/4
    Pin Number 9
    Driver IC
    Voltage 3.0-3.5 V
    Operational Temperature -30 ~ +70 °C
    Storage Temperature -40 ~ +80°C

    Product Information

    One of the main features of our 0.35-inch segment OLED screen is its excellent display effect. The screen uses OLED technology to ensure vivid, clear visuals, allowing users to easily navigate menus and view information with the clearest possible clarity. Whether checking the battery level of your e-cigarette or monitoring the progress of your smart skipping rope, our OLED screens guarantee an immersive and enjoyable user experience.

    Our OLED segment screen is not limited to a single application; rather, it has its uses in a variety of electronic devices. From e-cigarettes to data cables, from smart skipping ropes to smart pens, this multi-functional screen can be seamlessly integrated into many products. Its adaptability makes it a top choice for manufacturers looking to enhance their devices with modern and visually appealing displays.

    What makes our 0.35-inch segment OLED screen unique is its cost-effectiveness. Unlike traditional OLED displays, our segment screens do not require integrated circuits (ICs). By removing this component, we significantly reduced manufacturing costs, resulting in a more affordable product without compromising performance. This makes our OLED screens an attractive option for businesses looking to integrate high-quality displays while maintaining a competitive price.

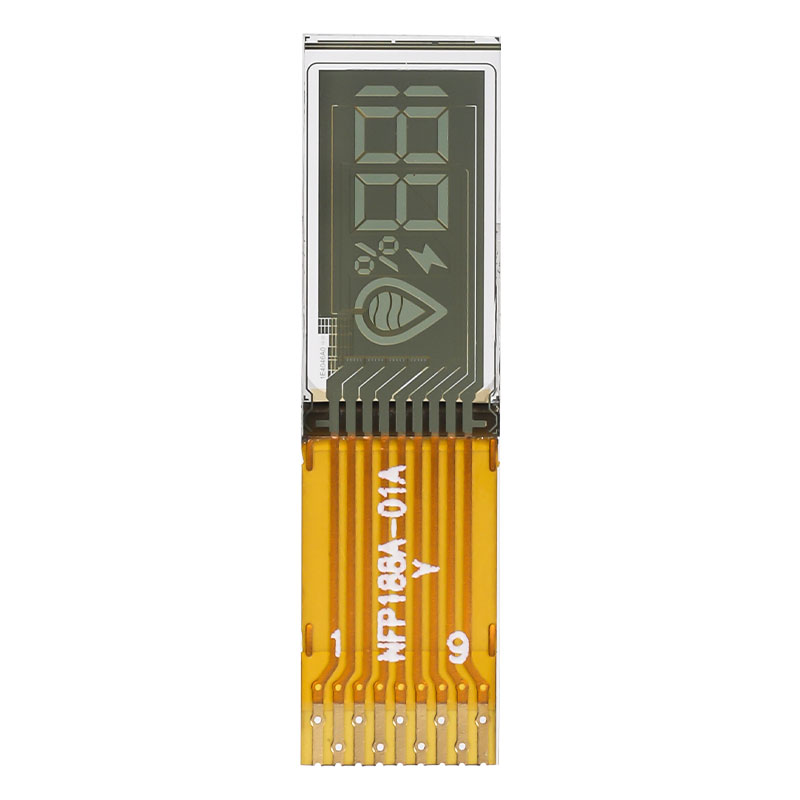

    035-OLED (2)

    Below are the advantages of this low-power OLED display:

    1. Thin–No need of backlight, self-emissive;

    2. Wide viewing angle :Free degree;

    3. High Brightness: 270 cd/m²;

    4. High contrast ratio(Dark Room): 2000:1;

    5. High response speed(<2μS);

    6. Wide Operation Temperature;

    7. Lower power consumption.

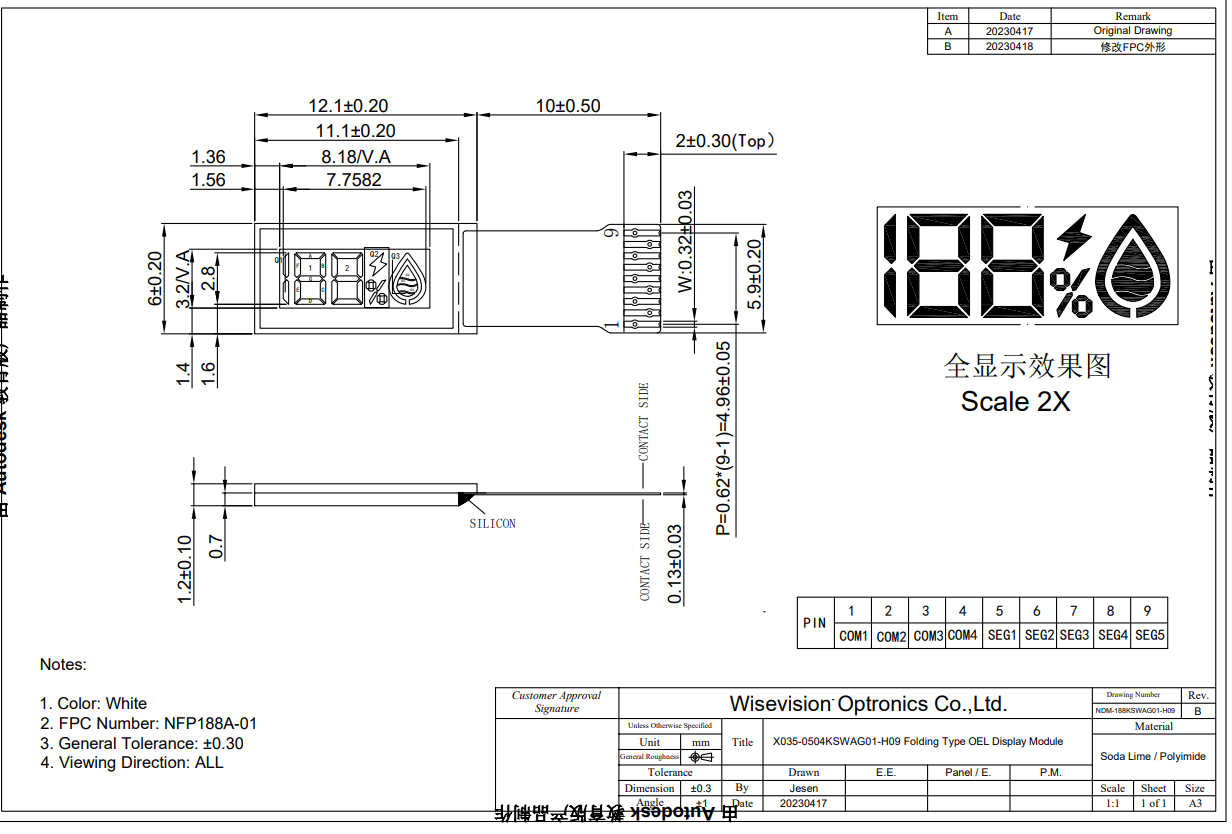

    Mechanical Drawing

    035-OLED (3)
