0.50“ Micro 48×88 Dots OLED Display Module Screen
General Description
| Display Type | OLED |
| Brand name | WISEVISION |
| Size | 0.50 inch |
| Pixels | 48x88 Dots |
| Display Mode | Passive Matrix |
| Active Area (A.A) | 6.124×11.244 mm |
| Panel Size | 8.928×17.1×1.227 mm |
| Color | Monochrome (White) |
| Brightness | 80 (Min)cd/m² |
| Driving Method | Internal supply |
| Interface | SPI/I²C |
| Duty | 1/48 |
| Pin Number | 14 |
| Driver IC | CH1115 |
| Voltage | 1.65-3.5 V |
| Weight | TBD |
| Operational Temperature | -40 ~ +85 °C |
| Storage Temperature | -40 ~ +85°C |
Product Information
X050-8848TSWYG02-H14 is a small OLED display which is made of 48x88 dots, diagonal size 0.50 inch. X050-8848TSWYG02-H14 has the module outline of 8.928×17.1×1.227 mm and Active Area size 6.124×11.244 mm; it is built in with CH1115 controller IC; it supports 4-wire SPI/I²C interface, 3V power supply. The X050-8848TSWYG02-H14 is a COG structure PMOLED display which is no need of backlight (self-emissive); it's lightweight and low power consumption. The display module has a minimum brightness of 80 cd/m², providing excellent clarity even in bright environments.is suitable for wearable device, E-Cigarette, portable device, personal care appliance, voice recorder pen, health device, etc.
it's lightweight and low power consumption. the supply voltage for logic is 2.8V (VDD), and the supply voltage for display is 7.5V(VCC). The current with 50% checkerboard display is 7.4V (for white color), 1/48 driving duty. the module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.
Below are the advantages of this low-power OLED display:
1. Thin–No need of backlight, self-emissive;
2. Wide viewing angle :Free degree;
3. High Brightness: 100 cd/m²;
4. High contrast ratio(Dark Room): 2000:1;
5. High response speed(＜2μS）;
6. Wide Operation Temperature;
7. Lower power consumption.

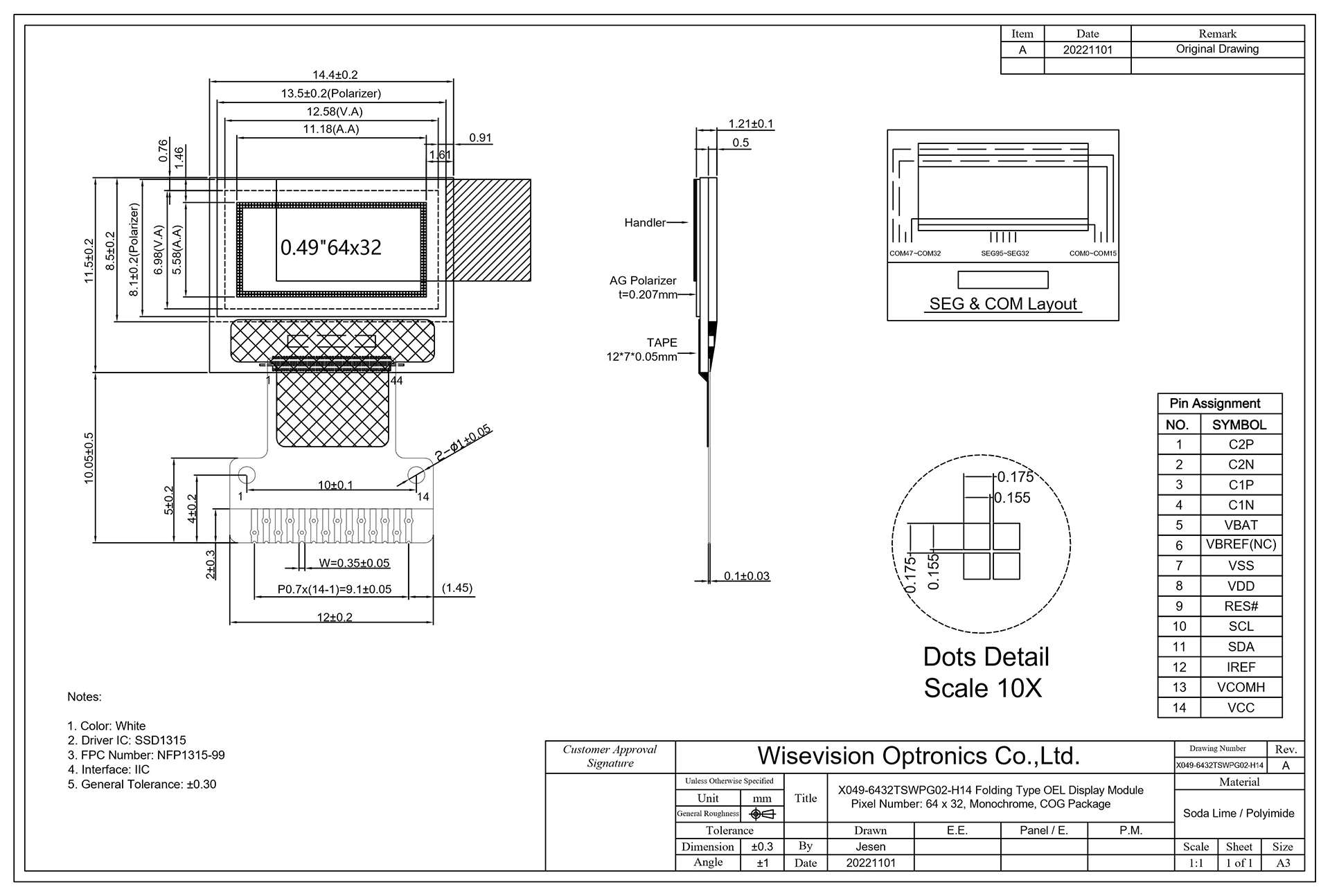

Mechanical Drawing
