0.63“ Micro 120×28 Dots OLED Display Module Screen

Short Description:


  • Model No: N063-2028TSWIG02-H14
  • Size: 0.63 inch
  • Pixels: 120x28 Dots
  • A.A: 15.58×3.62 mm
  • Outline: 21.54×6.62×1.22 mm
  • Brightness: 220 (Min)cd/m²
  • Interface: I²C
  • Driver IC: SSD1312
  • Product Detail

    Product Tags

    General Description

    Display Type OLED
    Brand name WISEVISION
    Size 0.63 inch
    Pixels 120x28 Dots
    Display Mode Passive Matrix
    Active Area (A.A) 15.58×3.62 mm
    Panel Size 21.54×6.62×1.22 mm
    Color Monochrome (White)
    Brightness 220 (Min)cd/m²
    Driving Method Internal supply
    Interface I²C
    Duty 1/28
    Pin Number 14
    Driver IC SSD1312
    Voltage 1.65-3.3 V
    Weight TBD
    Operational Temperature -40 ~ +85 °C
    Storage Temperature -40 ~ +85°C

    Product Information

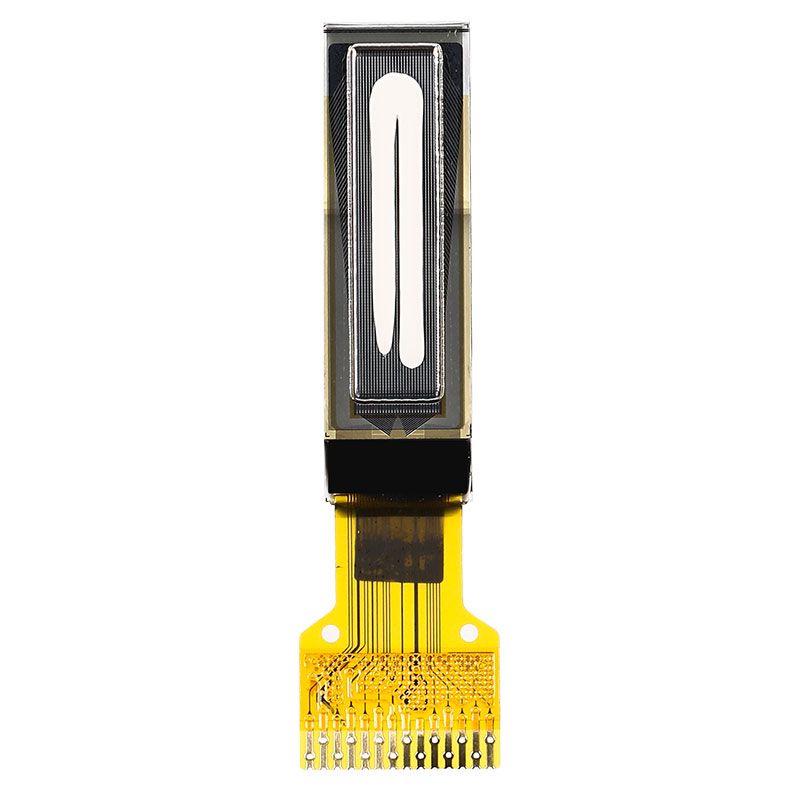

    N063-2028TSWIG02-H14 measure only 0.63 inches, providing a compact and versatile solution for your display needs. The module has a pixel resolution of 120x28 dots and a brightness of up to 270 cd/m², ensuring clear and vivid images.  The AA size of 15.58×3.62mm and the overall outline of 21.54×6.62×1.22mm make it easy to integrate into various electronic devices and systems. This 0.63 inch 120x28 small OLED display is suitable for wearable device, E-Cigarette, portable device, personal care appliance, voice recorder pen, health device, etc.

    One of the main features of our OLED display modules is their high-quality interface I²C, which enables seamless communication and control. This ensures smooth operation and easy integration into your existing setup. In addition, the display module is equipped with an SSD1312 driver IC, which further enhances the performance and reliability of the display module.

    063-OLED3

    Below Are The Advantages Of This Low-power OLED Display

    1. Thin–No need of backlight, self-emissive;

    2.Wide viewing angle :Free degree;

    3. High Brightness: 270 cd/m²;

    4. High contrast ratio(Dark Room): 2000:1;

    5. High response speed(<2μS);

    6. Wide Operation Temperature;

    7. Lower power consumption.

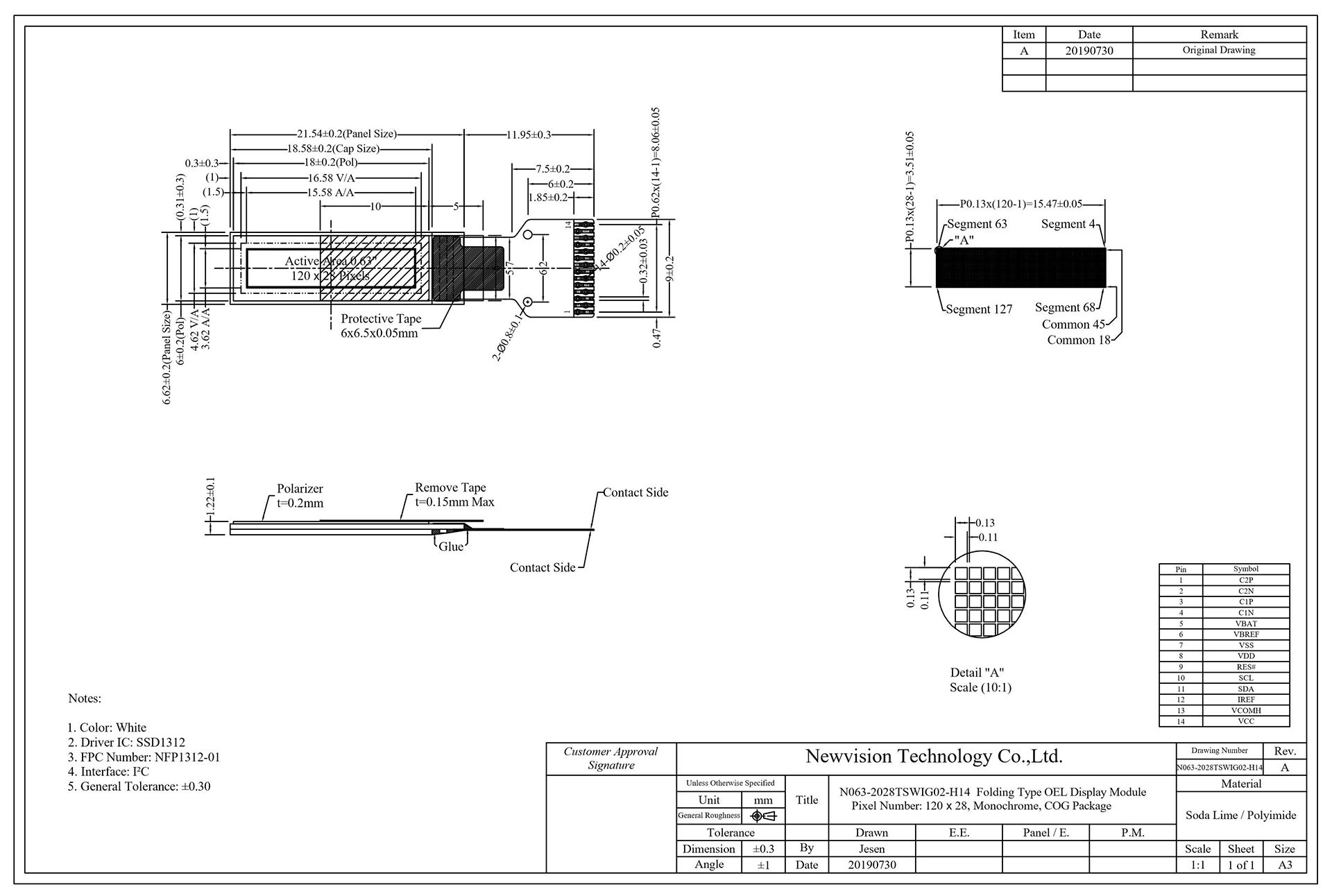

    Mechanical Drawing

    063-OLED1
