0.66“ Micro 48×88 Dots OLED Display Module Screen

Short Description:


  • Model No: N066-6448TSWPG03-H28
  • Size: 0.66 inch
  • Pixels: 64x48 Dots
  • A.A: 13.42×10.06 mm
  • Outline: 16.42×16.9×1.25 mm
  • Brightness: 80 (Min)cd/m²
  • Interface: Parallel/ I²C /4-wireSPI
  • Driver IC: SSD1315
  • Product Detail

    Product Tags

    General Description

    Display Type OLED
    Brand name WISEVISION
    Size 0.66 inch
    Pixels 64x48 Dots
    Display Mode Passive Matrix
    Active Area (A.A) 13.42×10.06 mm
    Panel Size 16.42×16.9×1.25 mm
    Color Monochrome (White)
    Brightness 80 (Min)cd/m²
    Driving Method Internal supply
    Interface Parallel/ I²C /4-wireSPI
    Duty 1/48
    Pin Number 28
    Driver IC SSD1315
    Voltage 1.65-3.5 V
    Weight TBD
    Operational Temperature -40 ~ +85 °C
    Storage Temperature -40 ~ +85°C

    Product Information

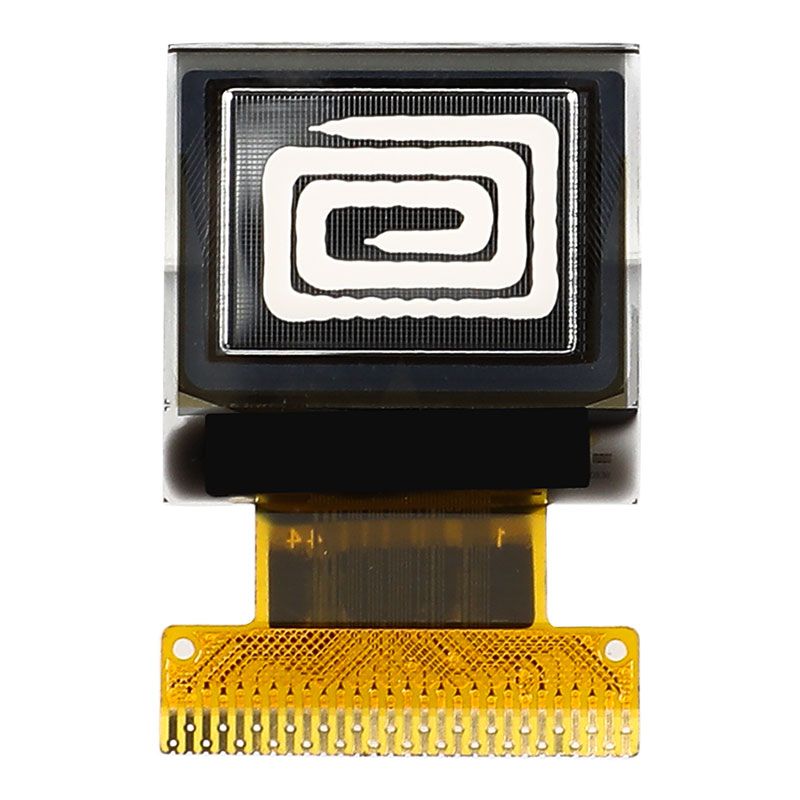

    N066-6448TSWPG03-H28 module is a consumer-grade COG OLED display, diagonal size 0.66 inch, made of resolution of 64x48 dots. This OLED module is built-in with SSD1315 IC; it supports Parallel/ I²C /4-wireSPI interface; t the supply voltage for logic is 2.8V (VDD), and the supply voltage for display is 7.5V(VCC). The current with 50% checkerboard display is 7.25V (for white color), driving duty 1/48. N066-6448TSWPG03-H28 module supports internal Charge Pump supply and external VCC supply.
    The module is suitable for wearable devices, portable devices, etc. It can be operated at temperatures from –40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.

    066-OLED3

    Below Are The Advantages Of This Low-power OLED Display

    1. Thin–No need of backlight, self-emissive;

    2. Wide viewing angle :Free degree;

    3. High Brightness: 430 cd/m²;

    4. High contrast ratio(Dark Room): 2000:1;

    5. High response speed(<2μS);

    6. Wide Operation Temperature;

    7. Lower power consumption.

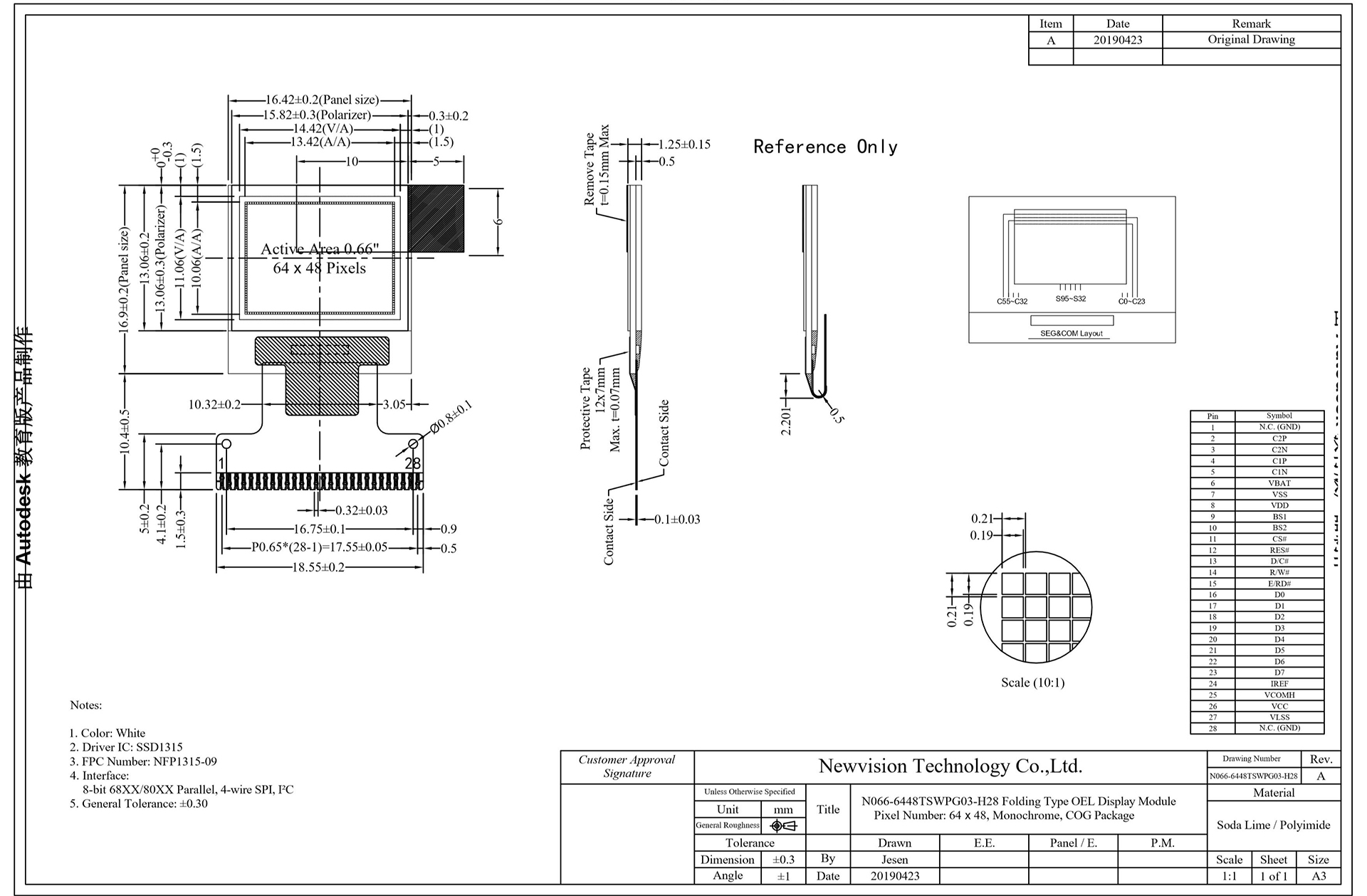

    Mechanical Drawing

    066-OLED1
