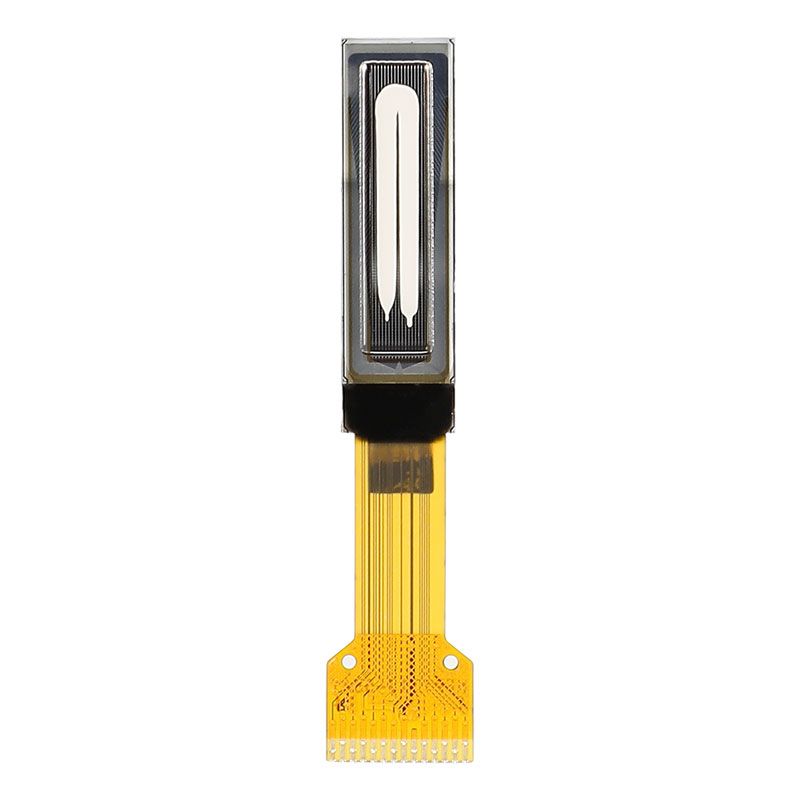

0.69“ Micro 96×16 Dots OLED Display Module Screen
General Description
| Display Type | OLED |
| Brand name | WISEVISION |
| Size | 0.33 inch |
| Pixels | 32 x 62 Dots |
| Display Mode | Passive Matrix |
| Active Area (A.A) | 8.42×4.82 mm |
| Panel Size | 13.68×6.93×1.25 mm |
| Color | Monochrome (White) |
| Brightness | 220 (Min)cd/m² |
| Driving Method | Internal supply |
| Interface | I²C |
| Duty | 1/32 |
| Pin Number | 14 |
| Driver IC | SSD1312 |
| Voltage | 1.65-3.3 V |
| Weight | TBD |
| Operational Temperature | -40 ~ +85 °C |
| Storage Temperature | -40 ~ +85°C |
Product Information
N069-9616TSWIG02-H14 is a consumer-grade COG OLED display, diagonal size 0.69 inch, made of resolution 96x16 pixels. This 0.69 inch OLED Display module is built-in with SSD1312 IC; it supports the I²C interface, the supply voltage for logic is 2.8V (VDD), and the supply voltage for display is 8V(VCC). The current with 50% checkerboard display is 7.5V (for white color), driving duty 1/16.
This N069-9616TSWIG02-H14 is a small-size 0.69 inch COG OLED display that is ultra-thin, lightweight, and has low power consumption. It is very suitable for smart home applications, medical instruments, handheld devices, smart wearable, etc. It can be operated at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.
Below Are The Advantages Of This Low-power OLED Display:
1. Thin–No need of backlight, self-emissive;
2. Wide viewing angle :Free degree;
3. High Brightness: 430 cd/m²;
4. High contrast ratio(Dark Room): 2000:1;
5. High response speed(＜2μS）;
6. Wide Operation Temperature;
7. Lower power consumption.
