0.71 “ Small Size Circle 160×160 Dots TFT LCD Display Module Screen

Short Description:

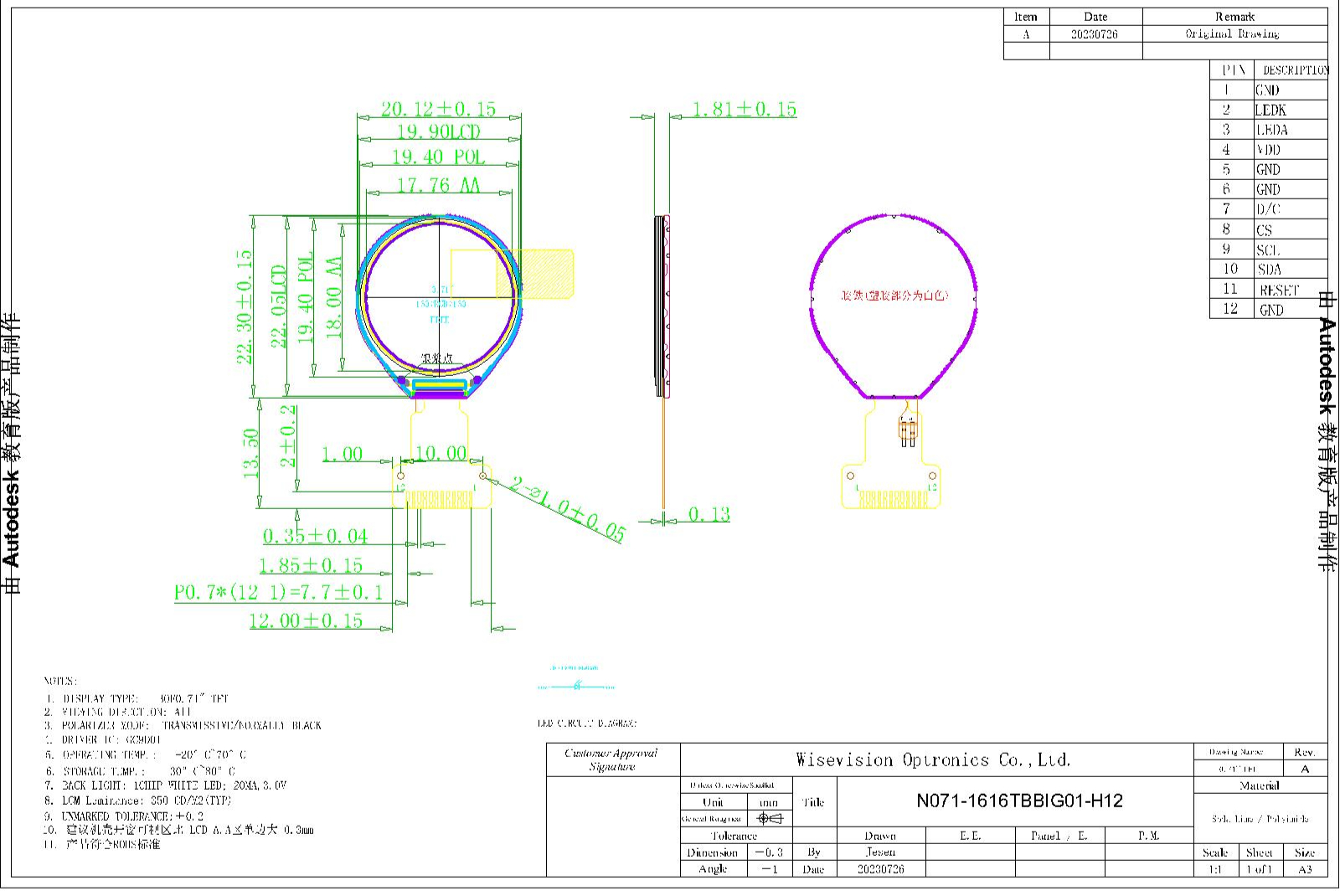

Model No: N071-1616TBBIG01-H12

Size: 0.71 inch

Pixels: 160×160 Dots

A.A: 18×18 mm

Outline: 20.12×22.3×1.81 mm

View Direction: IPS/Free

Interface: SPI / MCU

Brightness(cd/m²): 350

Driver IC: GC9D01

Touch Panel: Without Touch Panel

Send email to us Download as PDF

Product Detail

Product Tags

General Description

Display Type	IPS-TFT-LCD
Brand name	WISEVISION
Size	0.71 inch
Pixels	160×160 Dots
View Direction	IPS/Free
Active Area (A.A)	18×18 mm
Panel Size	20.12×22.3×1.81 mm
Color arrangement	RGB Vertical stripe
Color	65K
Brightness	350 (Min)cd/m²
Interface	RGB
Pin Number	12
Driver IC	GC9D01
Backlight Type	1 CHIP-WHITE LED
Voltage	2.5~3.3 V
Weight	TBD
Operational Temperature	-20 ~ +70 °C
Storage Temperature	-30 ~ +80°C

Product Information

N071-1616TBBIG01-H12 is a circle IPS TFT-LCD screen with a 0.71-inch diameter display with resolution 160x160 pixels. This round TFT display comprises an IPS TFT-LCD panel built with a GC9D01 driver IC that can communicate via SPI interface.

N071-1616TBBIG01-H12 is adopted IPS (In plane Switching) panel, which has the advantage of higher contrast, true black background when the display or pixel is off and wider viewing angle of Left:80 / Right:80 / Up:80/ Down:80 degree (typical), contrast ratio 1,200:1 (typical value), brightness 350 cd/m².

The power supply voltage of LCM is from 2.4V to 3.3V, the typical value of 2.8V. The display module is suitable for compact devices, wearable devices, home automation products, white products, video systems, etc. It can be operating at temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃.
