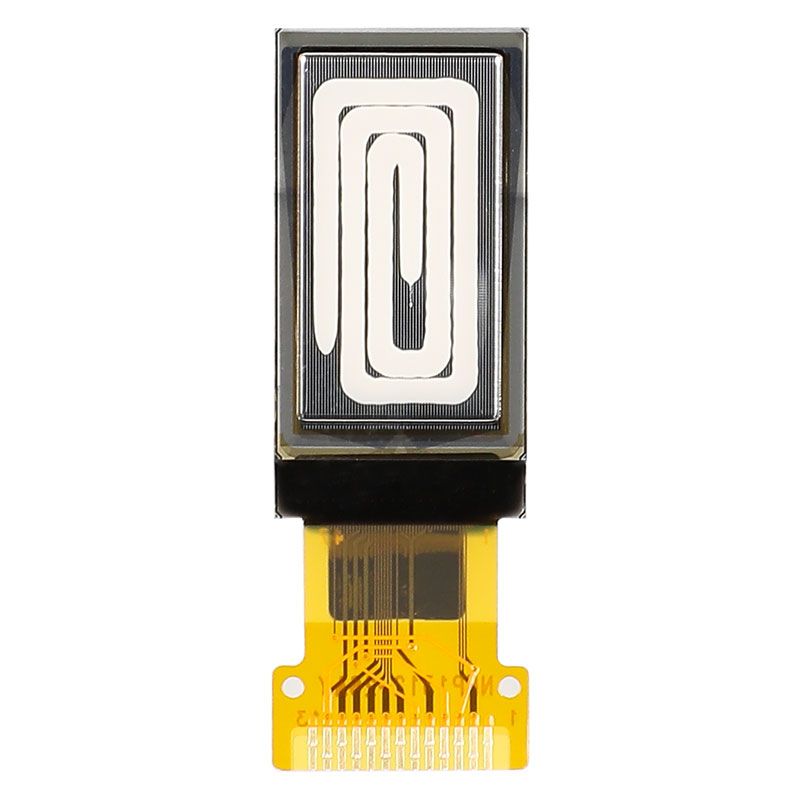

0.77“ Micro 64×128 Dots OLED Display Module Screen
General Description
| Display Type | OLED |
| Brand name | WISEVISION |
| Size | 0.77 inch |
| Pixels | 64×128 Dots |
| Display Mode | Passive Matrix |
| Active Area(A.A) | 9.26×17.26 mm |
| Panel Size | 12.13×23.6×1.22 mm |
| Color | Monochrome (White) |
| Brightness | 180 (Min)cd/m² |
| Driving Method | Internal supply |
| Interface | 4-wire SPI |
| Duty | 1/128 |
| Pin Number | 13 |
| Driver IC | SSD1312 |
| Voltage | 1.65-3.5 V |
| Weight | TBD |
| Operational Temperature | -40 ~ +70 °C |
| Storage Temperature | -40 ~ +85°C |
Product Information
X077-6428TSWCG01-H13 is a small OLED display which is made of 64×128 dots, diagonal size 0.77 inch. X077-6428TSWCG01-H13 has the module Outline of 12.13×23.6×1.22 mm and Active Area size 9.26×17.26 mm; it is built in with SSD1312 controller IC; it supports 4-wire SPI interface, 3V power supply.
The module is a COG structure PMOLED display which is no need of backlight (self-emissive); it's lightweight and low power consumption.
This 0.77inch 64×128 small OLED display is suitable for wearable devices, portable devices, personal care appliance, voice recorder pen, health devices, etc.
This 0.77” module is portrait mode; it also supports landscape mode.
X077-6428TSWCG01-H13 module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.
Below Are The Advantages Of This Low-power OLED Display
1. Thin–No need of backlight, self-emissive;
2. Wide viewing angle :Free degree;
3. High Brightness: 260 (Min)cd/m²;
4. High contrast ratio(Dark Room): 10000:1;
5. High response speed(＜2μS）;
6. Wide Operation Temperature;
7. Lower power consumption.

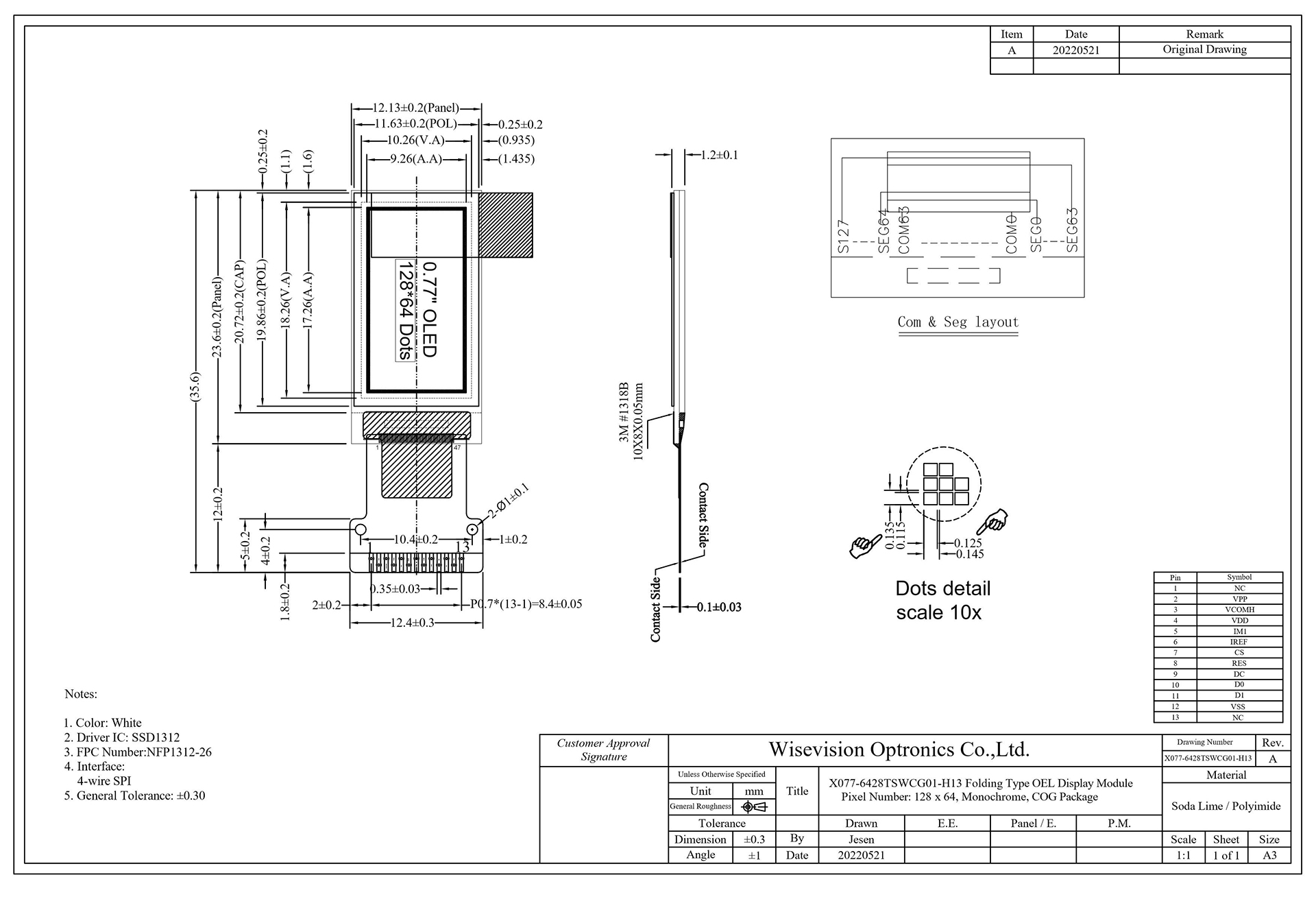

Mechanical Drawing
Product Information
Introducing our latest innovation in display technology - the cutting-edge 0.77-inch micro 64×128 dot OLED display module screen. This compact, high-resolution OLED display module is designed to revolutionize the viewing experience and will become the new standard for visual displays.
Featuring a stylish design and impressive 64×128 dot resolution, this OLED display module delivers vivid, clear images that will captivate users. Whether you are designing wearables, gaming consoles, or any other electronic device that requires a visual interface, our OLED display modules will deliver superior performance.
The 0.77-inch micro OLED display module screen has an ultra-thin structure and is ideal for devices with limited space. It only weighs a few grams, ensuring it doesn't add unnecessary weight or bulk to your creations. It is ideal for applications where portability and compactness are critical.
In addition, OLED display modules also feature excellent color reproduction, high contrast and wide viewing angles. This means users can enjoy stunning visuals from virtually any angle, enhancing the overall user experience. OLED technology also ensures perfect black levels for unparalleled image clarity and depth.
Our OLED display modules are not only beautiful, they are also extremely durable. It is designed to withstand a variety of environmental conditions, making it resistant to temperature changes and shock. This ensures your equipment continues to deliver outstanding performance even in challenging environments.
In addition, this OLED display module is very energy efficient. Low power consumption extends the battery life of the device, ensuring users can enjoy longer use without frequent charging.
We are committed to providing cutting-edge technology that enhances the functionality and visual impact of electronic devices. The launch of the 0.77-inch miniature 64×128 dot OLED display module screen demonstrates our commitment to bringing superior displays to the market. Upgrade your device with our OLED display modules to take your visual experience to new heights.
