0.85“ Small Size 128 RGB×128 Dots TFT LCD Display Module Screen

Short Description:


  • Model No: N085-1212TBWIG42-H12
  • Size: 0.85 inch
  • Pixels: 128×128 Dots
  • A.A: 15.2064x 15.2064 mm
  • Outline: 17.58 x 20.82 x1.5 mm
  • View Direction: IPS/ Free
  • Interface: SPI / MCU
  • Brightness(cd/m²): 300
  • Driver IC: GC9107
  • Touch Panel: Without Touch Panel
  • Product Detail

    Product Tags

    General Description

    Display Type IPS-TFT-LCD
    Brand name WISEVISION
    Size 0.85 inch
    Pixels 128×128 Dots
    View Direction IPS/Free
    Active Area(A.A) 15.2064x 15.2064 mm
    Panel Size 17.58 x 20.82 x1.5 mm
    Color arrangement RGB Vertical stripe
    Color 65K
    Brightness 300 (Min)cd/m²
    Interface SPI / MCU
    Pin Number 12
    Driver IC GC9107
    Backlight Type 1 CHIP-WHITE LED
    Voltage 2.4~3.3 V
    Weight TBD
    Operational Temperature -20 ~ +70 °C
    Storage Temperature -30 ~ +80°C

    Product Information

    N085-1212TBWIG42-H12 is a small-sized 0.85-inch IPS wide-angle TFT-LCD display module. This small-sized TFT-LCD panel has a resolution of 128x128 pixels, built-in GC9107 controller IC, supports 4-wire SPI interface, a supply voltage (VDD) range of 2.4V~3.3V, module brightness of 300 cd/m², and contrast of 1200.

    This module is in direct screen mode, and the panel adopts wide angle IPS (In plane Switching) technology. The viewing range is left: 80/right: 80/up: 80/down: 80 degrees. The IPS panel has a wide range of viewing angles, bright colors, and high-quality images that are saturated and natural. It is very suitable for applications such as wearable devices and medical instruments. The operating temperature of this module is -20 ℃ to 70 ℃, and the storage temperature is -30 ℃ to 80 ℃.

    N085-1212TBWIG42-H12 is equipped with the advanced GC9107 driver IC, ensuring smooth and responsive performance. This ensures your content is delivered flawlessly without any lag or distortion. Whether you're playing high-resolution video or displaying detailed graphics, this TFT display module can handle it with ease.

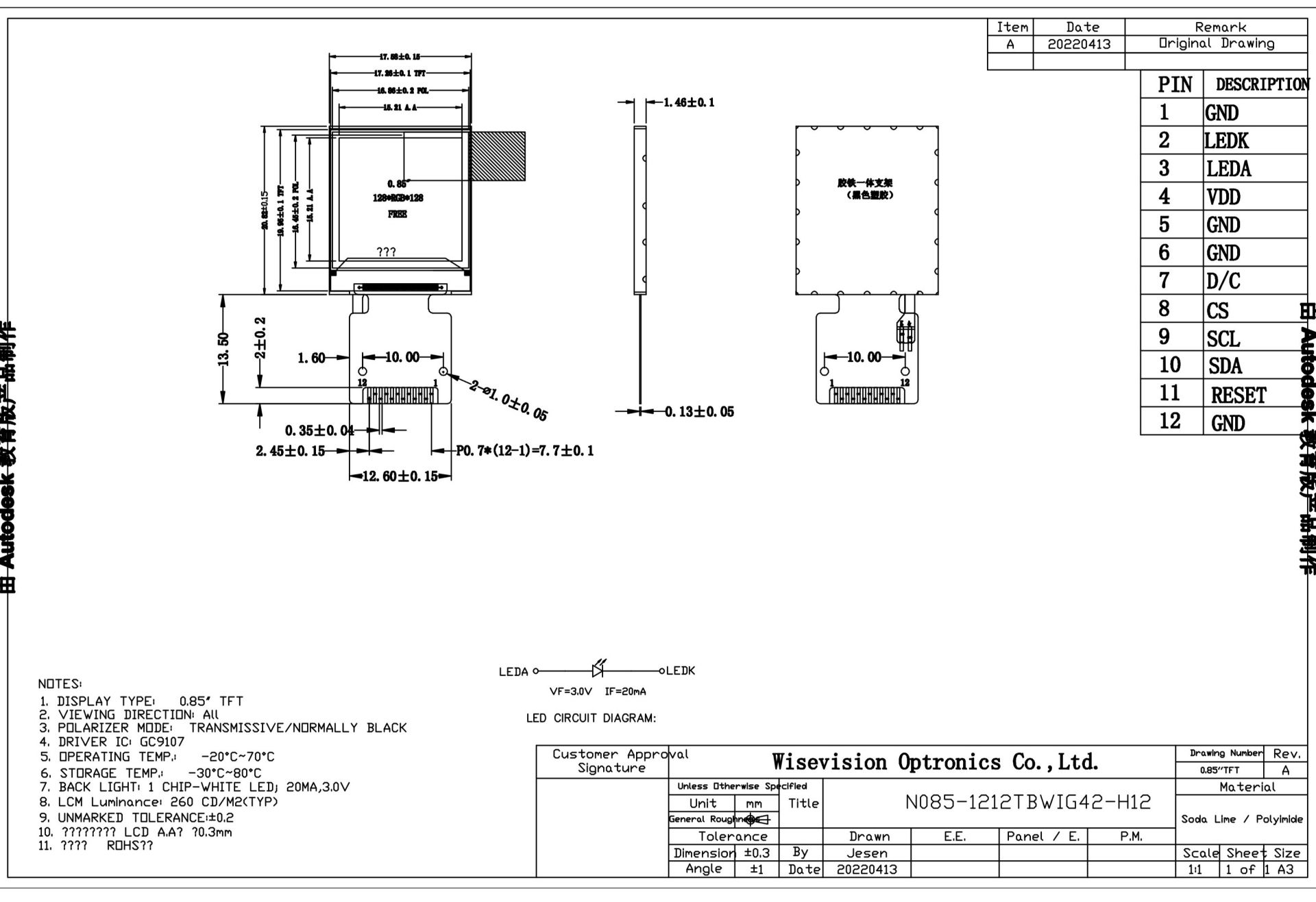

    Mechanical Drawing
