0.87“ Micro 128×32 Dots OLED Display Module Screen
General Description
| Display Type | OLED |
| Brand name | WISEVISION |
| Size | 0.77 inch |
| Pixels | 64×128 Dots |
| Display Mode | Passive Matrix |
| Active Area(A.A) | 9.26×17.26 mm |
| Panel Size | 12.13×23.6×1.22 mm |
| Color | Monochrome (White) |
| Brightness | 180 (Min)cd/m² |
| Driving Method | Internal supply |
| Interface | 4-wire SPI |
| Duty | 1/128 |
| Pin Number | 13 |
| Driver IC | SSD1312 |
| Voltage | 1.65-3.5 V |
| Weight | TBD |
| Operational Temperature | -40 ~ +70 °C |
| Storage Temperature | -40 ~ +85°C |
Product Information
X087-2832TSWIG02-H14 is a 0.87 inch Graphic passive matrix OLED display module which is made of 128x32 dots.
This 0.87" display has the module outline of 28.54×8.58×1.2 mm and Active Area size 22.38×5.58 mm.
The module is built in with SSD1312 IC, it supports I²C interface, 3V power supply.
The module is a COG structure OLED display which is no need of backlight (self-emissive); it's lightweight and low power consumption.
The supply voltage for logic is 2.8V (VDD), and the supply voltage for display is 9V(VCC). The current with 50% checkerboard display is 9V (for white color), 1/32 driving duty.
This 0.87 inch small sized OLED display is suitable for wearable devices, E-cigarette, personal care appliance, portable devices, voice recorder pen, health devices, etc. X087-2832TSWIG02-H14 module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.
Choose the X087-2832TSWIG02-H14 OLED panel and experience the future of display technology. Its small form factor, crisp resolution, excellent brightness and versatile interface options make it perfect for any project. Upgrade the visual experience of your products and engage your audience with the X087-2832TSWIG02-H14OLED panel.
Below Are The Advantages Of This Low-power OLED Display
1. Thin–No need of backlight, self-emissive;
2. Wide viewing angle :Free degree;
3. High Brightness: 120 (Min)cd/m²;
4. High contrast ratio(Dark Room): 10000:1;
5. High response speed(＜2μS）;
6. Wide Operation Temperature;
7. Lower power consumption.

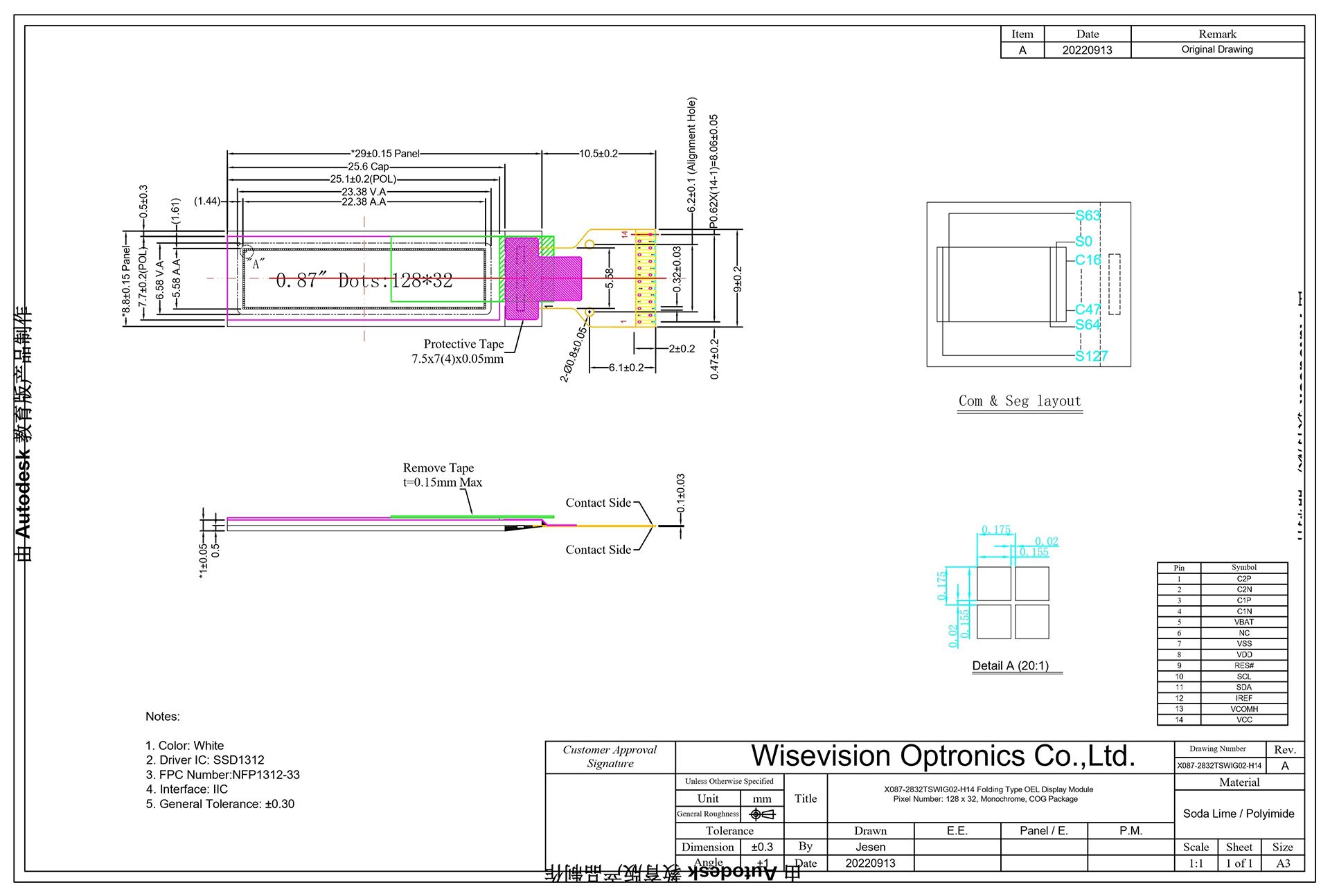

Mechanical Drawing
Product Introduction
Introducing the most advanced 0.87-inch micro 128x32 dot OLED display module screen, a cutting-edge technological marvel designed to revolutionize your visual experience. This compact and stylish display module offers incredible functionality and unparalleled performance, making it the perfect choice for a variety of applications.
Featuring a high resolution of 128x32 dots, this OLED display module is capable of displaying images and text with superior clarity and clarity. Whether you're viewing complex graphics or reading tiny characters, the display delivers an immersive and superior visual experience. OLED technology ensures vibrant colors, deep blacks and a wide color gamut, making every image come alive and vivid.
The 0.87-inch micro OLED display module screen not only offers stunning visual effects, but also incredible versatility. Its compact size and low power consumption make it ideal for portable devices such as wearables, smartwatches, and other IoT applications. The module's small size allows seamless integration into a variety of designs without compromising display quality.
The OLED display module features fast response time and wide viewing angles, ensuring smooth transitions between images and excellent visibility at different viewing angles. Equipped with a high-performance controller, the module provides seamless connectivity and compatibility with a wide range of microcontrollers.
In addition, this OLED display module has excellent durability and service life. Its self-illuminating pixels require no backlight, extending lifespan and reducing power consumption. The module's rugged construction ensures resistance to shock, vibration and extreme temperatures, making it suitable for demanding environments.
The 0.87" Micro OLED display module screen makes installation and operation easy. Its user-friendly interface and comprehensive documentation guide users seamlessly through the setup process. The module supports a variety of communication interfaces, including I2C and SPI, for interoperability with different devices Connections provide flexibility.
In summary, the 0.87" micro 128x32 dot OLED display module screen is a remarkable innovation that takes visual display to new heights. Its high resolution, vibrant colors, compact size, unparalleled versatility and superior durability Making it the perfect choice for any display application. Experience the future of display technology with this exceptional OLED display module.
