0.91“ Micro 128×32 Dots OLED Display Module Screen

Short Description:


  • Model No: X091-2832TSWFG02-H14
  • Size: 0.91 inch
  • Pixels: 128×32 Dots
  • A.A: 22.384×5.584 mm
  • Outline: 30.0×11.50×1.2 mm
  • Brightness: 150 (Min)cd/m²
  • Interface: I²C
  • Driver IC: SSD1306
  • Product Detail

    Product Tags

    General Description

    Display Type OLED
    Brand name WISEVISION
    Size 0.91 inch
    Pixels 128×32 Dots
    Display Mode Passive Matrix
    Active Area (A.A) 22.384×5.584 mm
    Panel Size 30.0×11.50×1.2 mm
    Color Monochrome (White/Blue)
    Brightness 150 (Min)cd/m²
    Driving Method Internal supply
    Interface I²C
    Duty 1/32
    Pin Number 14
    Driver IC SSD1306
    Voltage 1.65-3.3 V
    Weight TBD
    Operational Temperature -40 ~ +85 °C
    Storage Temperature -40 ~ +85°C

    Product Information

    X091-2832TSWFG02-H14 is a popular small OLED display which is made of 128x32 pixels, diagonal size 0.91 inch, the module is built in with SSD1306 controller IC; it supports I²C interface and having 14 pins. 3V power supply. The OLED Display Module is a COG structure OLED display which is no need of backlight (self-emissive); it's lightweight and low power consumption. the supply voltage for logic is 2.8V (VDD), and the supply voltage for display is 7.25V(VCC). The current with 50% checkerboard display is 7.25V (for white color), 1/32 driving duty.

    X091-2832TSWFG02-H14 is very suitable for wearable device, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, wearable device, etc. The OLED display module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.

    091-OLED3

    Below Are The Advantages Of This Low-power OLED Display

    1. Thin–No need of backlight, self-emissive;

    2. Wide viewing angle :Free degree;

    3. High Brightness: 150 cd/m²;

    4. High contrast ratio(Dark Room): 2000:1;

    5. High response speed(<2μS);

    6. Wide Operation Temperature

    7. Lower power consumption;

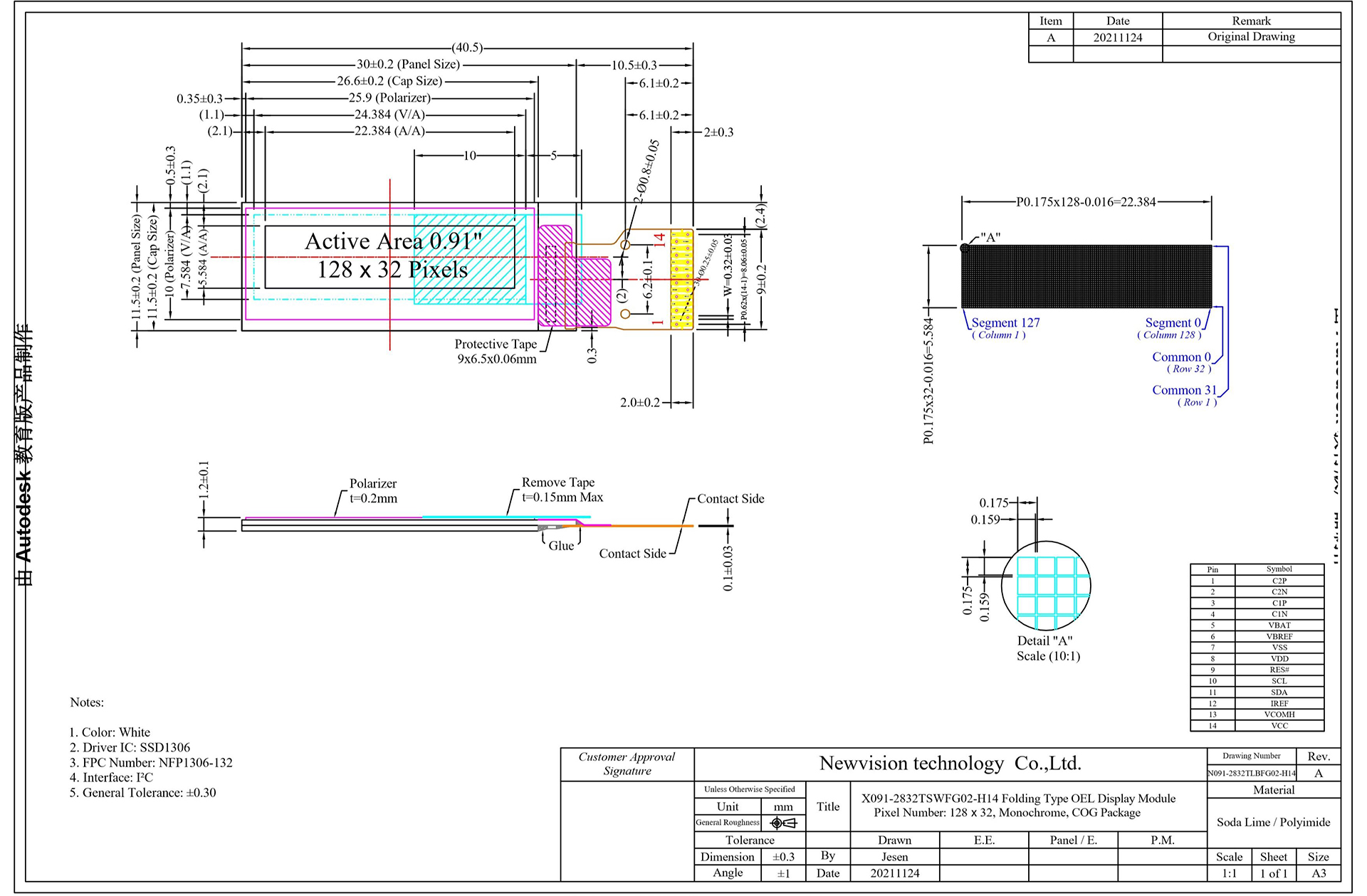

    Mechanical Drawing

    091-OLED1

    Product Information

    Introducing our latest innovation in display technology, the 0.91-inch micro 128x32 dot OLED display module screen. This cutting-edge display module is designed to deliver unparalleled clarity and performance, making it the perfect choice for a variety of applications.

    This OLED display module has a compact design, measuring only 0.91 inches. Despite its small form factor, it boasts an impressive 128x32 dot resolution, ensuring clear and detailed visuals. Whether you're using it for small electronics, wearables, or IoT applications, this display module will deliver superior image quality.

    One of the outstanding features of this OLED display module is its self-luminous pixels. Unlike traditional LCD displays, OLED technology allows each pixel to emit light independently. This results in truly vivid colors, high contrast and deep blacks, providing a stunning visual experience for the end user.

    The 0.91" MICRO OLED display module also offers wide viewing angles, ensuring the display remains clear and legible from multiple angles. This makes it ideal for devices that require visibility in a variety of directions.

    Not only is this display module visually impressive, it's also versatile. It supports I2C and SPI interfaces and can be seamlessly integrated with various microcontrollers and development boards. This OLED display module has low power consumption and is an energy-saving solution that can extend the battery life of portable devices.

    Designed with durability in mind, the 0.91" MICRO OLED display module features a rugged construction that ensures it can withstand rigorous usage conditions. Its compact size and lightweight make it suitable for applications with limited space and heavy weight.

    In summary, the 0.91" MICRO 128x32 DOTS OLED display module screen surpasses traditional display technology with its unparalleled performance and superior visual quality. Whether you are designing wearables or IoT applications, this display module will elevate your product to the next level Take it to the next level. Experience the future of displays with our 0.91-inch micro OLED display module.
