0.96 “ Small 128×64 Dots OLED Display Module Screen
General Description
| Display Type | OLED |
| Brand name | WISEVISION |
| Size | 0.96 inch |
| Pixels | 128×64 Dots |
| Display Mode | Passive Matrix |
| Active Area (A.A) | 21.74×11.175 mm |
| Panel Size | 24.7×16.6×1.3 mm |
| Color | Monochrome (White) |
| Brightness | 80 (Min)cd/m² |
| Driving Method | Internal supply |
| Interface | 4-wire SPI/I²C |
| Duty | 1/64 |
| Pin Number | 30 |
| Driver IC | SSD1315 |
| Voltage | 1.65-3.3 V |
| Weight | TBD |
| Operational Temperature | -40 ~ +85 °C |
| Storage Temperature | -40 ~ +85°C |
Product Information

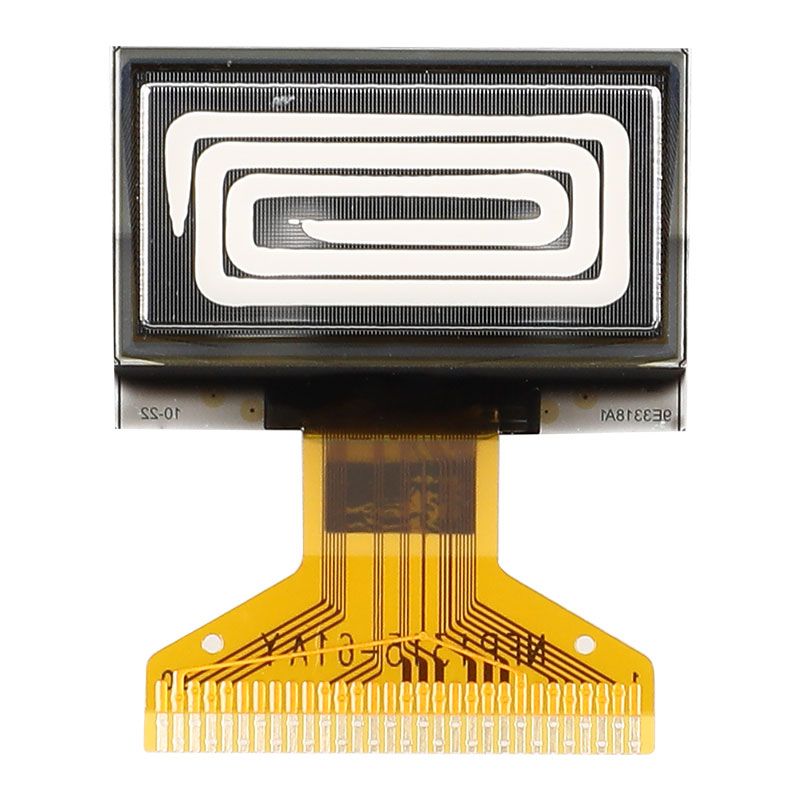

X096-2864KSWPG02-H30 is a small OLED display which is made of 128x64 pixels, diagonal size only 0.96 inch.
The X096-2864KSWPG02-H30 128x64 OLED Display has the outline dimension of 24.7×16.6×1.3 mm and AA size 21.74×11.175mm; it is built-in with SSD1315 controller IC and it supports 4-wire SPI/I²C interface.
The X096-2864KSWPG02-H30 is a small COG OLED display which is very thin; lightweight and low power consumption. the supply voltage for logic is 2.8V (VDD), and the supply voltage for display is 9V(VCC).
The current with 50% checkerboard display is 7.25V (for white color), 1/64 driving duty. It is suitable for handheld instruments, wearable devices, etc.
The module can be operating at temperatures from –40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.
Below Are The Advantages Of This Low-power OLED Display
1. Thin–No need of backlight, self-emissive;
2. Wide viewing angle :Free degree;
3. High Brightness: 80(min) cd/m²;
4. High contrast ratio(Dark Room): 2000:1;
5. High response speed(＜2μS);
6. Wide Operation Temperature;
7. Lower power consumption.

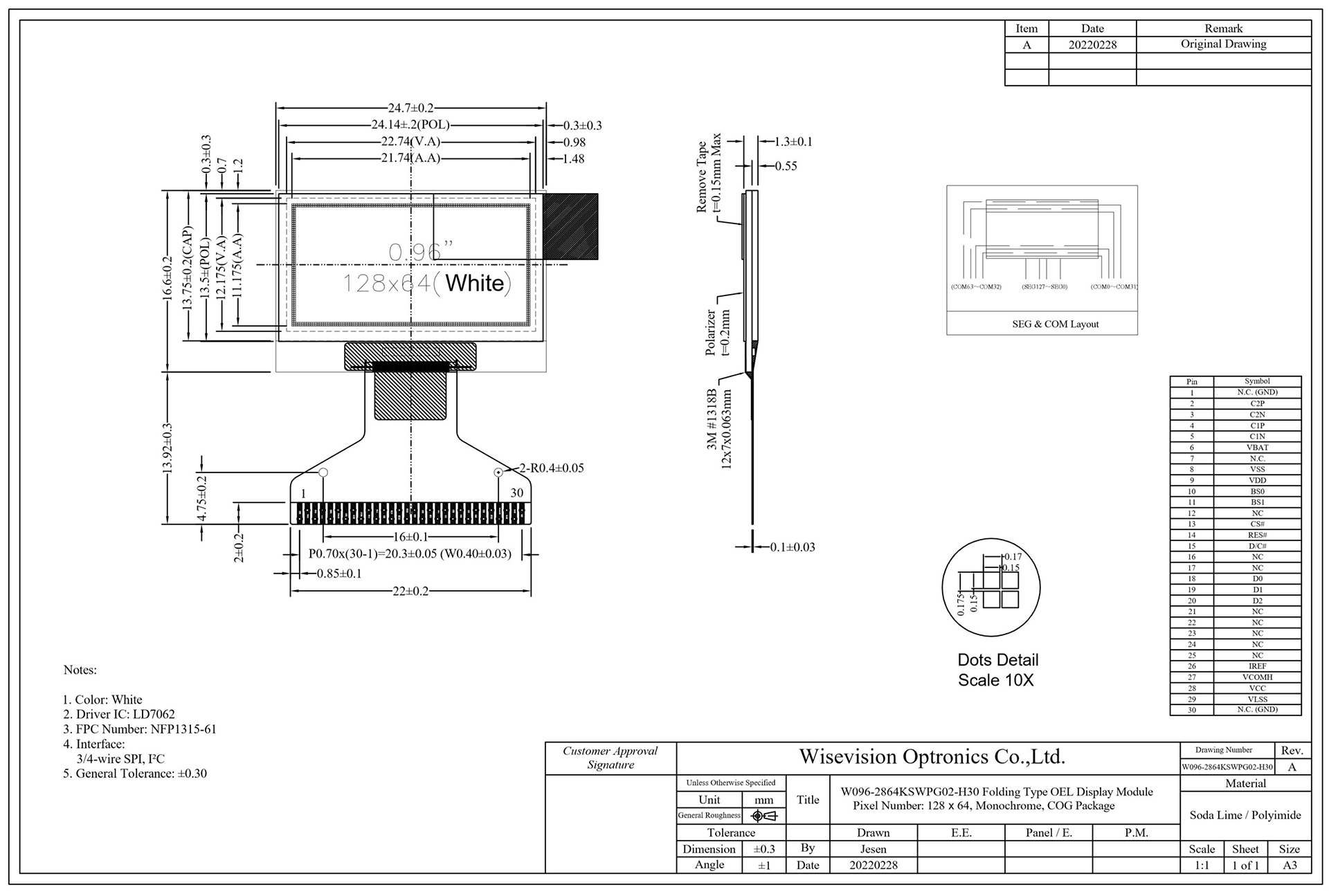

Mechanical Drawing
Product Introduction
Introducing our powerful yet compact small 128x64 dot OLED display module screen - a cutting-edge technology that takes your viewing experience to new heights. With a resolution of 128x64 dots, this OLED display module delivers exceptional clarity and vividness, allowing you to display your content with the utmost precision.
Measuring just 0.96 inches, this OLED display module is ideal for portable devices, wearable technology, and any application where space is limited. Its compact size does not compromise on performance as it packs an impressive list of features for a great user experience.
The OLED technology used in this display module enhances contrast, delivering deeper blacks and richer colors for truly lifelike images. Whether you're viewing vivid graphics, text, or multimedia content, every detail is rendered with stunning accuracy.
The small 128x64 dot OLED display module screen has a user-friendly interface that ensures easy navigation and intuitive operation. It integrates seamlessly with your device or project, providing responsive touch capabilities that make interactions smooth and enjoyable.
Due to its low power consumption, this OLED display module is very energy-efficient and extends battery life. Additionally, it is designed to withstand a variety of environmental conditions, making it an excellent choice for both indoor and outdoor applications.
Installation and integration are easy thanks to the module's compact design and versatile mounting options. Whether you require vertical or horizontal orientation, this OLED display module can meet your specific requirements, ensuring ease of use and enhancing overall aesthetics.
All in all, our small 128x64 dot OLED display module screen is an excellent display solution that combines compact size with excellent performance. With its high-resolution display, stunning visuals and user-friendly interface, it's the perfect choice for any application that requires superior image quality and functionality. Experience a new level of visual excellence with our OLED display modules and unlock endless possibilities for your next project.
