0.96 “ Small 128×64 Dots OLED Display Module Screen

Short Description:


  • Model No: X096-2864KSWAG01-H30
  • Size: 0.96 inch
  • Pixels: 128×64 Dots
  • A.A: 21.744×11.204 mm
  • Outline: 26.70×19.26×1.45 mm
  • Brightness: 80 (Min)cd/m²
  • Interface: Parallel /4-wire SPI/I²C
  • Driver IC: SSD1315
  • Product Detail

    Product Tags

    General Description

    Display Type OLED
    Brand name WISEVISION
    Size 0.96 inch
    Pixels 128×64 Dots
    Display Mode Passive Matrix
    Active Area (A.A) 21.744×11.204 mm
    Panel Size 26.70×19.26×1.45 mm
    Color Monochrome (White/Blue/Y&B)
    Brightness 80 (Min)cd/m²
    Driving Method Internal supply
    Interface Parallel /4-wire SPI/I²C
    Duty 1/64
    Pin Number 30
    Driver IC SSD1315
    Voltage 1.65-3.3 V
    Weight TBD
    Operational Temperature -40 ~ +85 °C
    Storage Temperature -40 ~ +85°C

    Product Information

    X096-2864KSWAG01-H30 is a popular small OLED display which is made of 128x64 pixels, diagonal size 0.96 inch, the module is built-in with SSD1315 controller IC; it supports Parallel /4-wire SPI/I²C interface and having 30 pins.

    3V power supply. The OLED Display Module is a COG structure OLED display which is no need of backlight (self-emissive); the supply voltage for logic is 2.8V (VDD), and the supply voltage for display is 9V(VCC).

    The current with 50% checkerboard display is 7.25V (for white color), 1/64 driving duty.

    X096-2864KSWAG01-H30 is ideal for smart home applications, financial-POS, intelligent technology devices, medical instruments, etc.

    This module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.

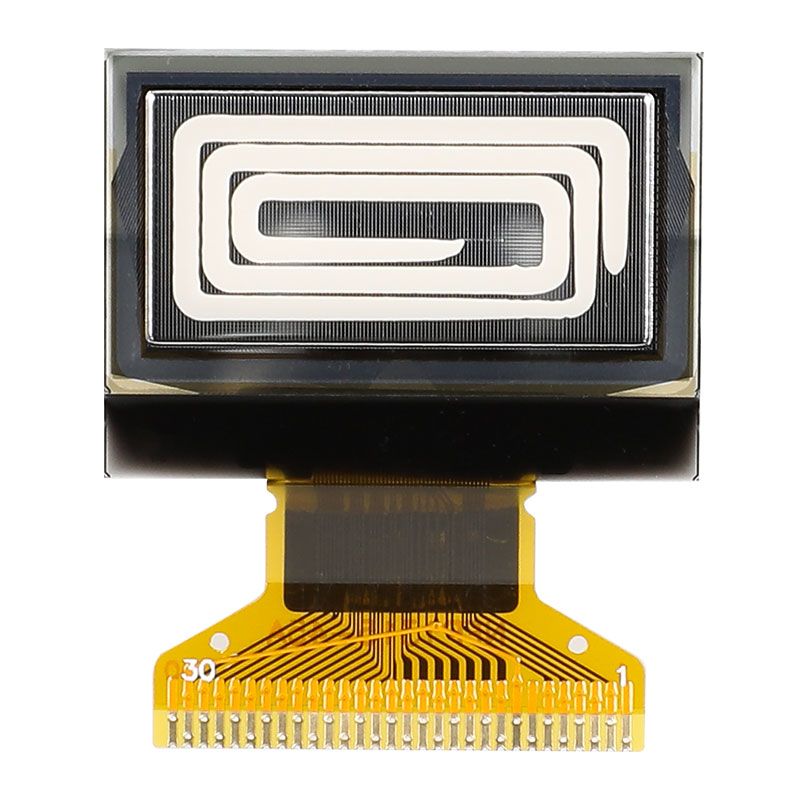

    096-OLED3

    Below Are The Advantages Of This Low-power OLED Display

    1. Thin–No need of backlight, self-emissive;

    2. Wide viewing angle :Free degree;

    3. High Brightness: 80(min) cd/m²;

    4. High contrast ratio(Dark Room): 2000:1;

    5. High response speed(<2μS);

    6. Wide Operation Temperature

    7. Lower power consumption;

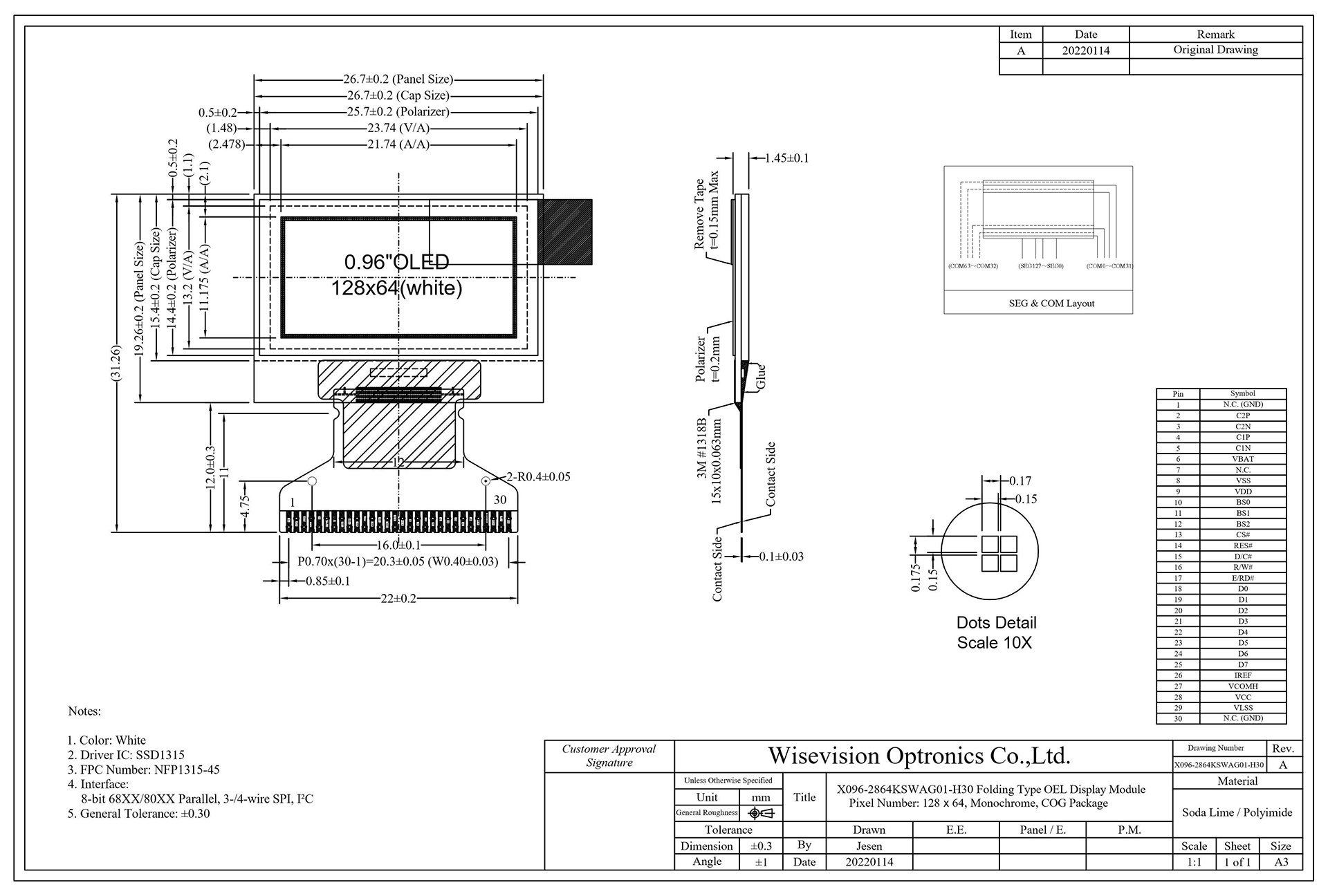

    Mechanical Drawing

    096-OLED1

    Product Introduction

    X096-2864KSWAG01-H30 is a popular small OLED display which is made of 128x64 pixels, diagonal size 0.96 inch, the module is built-in with SSD1315 controller IC; it supports Parallel /4-wire SPI/I²C interface and having 30 pins.

    Introducing our latest product, a 0.96-inch small 128x64 dot OLED display module screen. This cutting-edge technology is designed to provide you with a superior visual experience for all your display needs.

    This OLED display module has a compact screen size of 0.96 inches and offers a high density of 128x64 dots. OLED (organic light-emitting diode) technology ensures vibrant colors and precise image quality, bringing your content to life. Whether you are creating a small handheld device or an embedded system, this module is perfect for displaying information in a clear and concise manner.

    OLED display module screens have a wide range of applications and uses, and are suitable for various industries. It can be used in wearables, smartwatches, fitness trackers, medical devices, automotive applications, and more. Its small size makes it ideal for devices that require a compact display while maintaining high performance.

    This module is not only visually impressive but also powerful. Its built-in controller is easy to use and integrates seamlessly into your existing projects. The module's efficient power consumption guarantees longer battery life, ensuring your device runs for a long time without frequent charging.

    In addition, the OLED display module screen has a wide viewing angle, allowing users to clearly see content from different angles. This makes it ideal for devices that require flexible viewing locations, ensuring usability and convenience.

    In addition to excellent performance, this module is designed with durability and longevity in mind. Its sturdy construction and high-quality materials allow it to resist impact and damage, ensuring a reliable and long-lasting display solution for your products.

    Overall, the 0.96-inch small 128x64 dot OLED display module screen is an excellent display solution that combines excellent visual performance, functionality, and durability. With its versatile applications and excellent functionality, this module is an excellent choice for anyone looking for a high-quality and high-quality display. Providing reliable display solutions for their innovative projects.

    ly. The OLED Display Module is a COG structure OLED display which is no need of backlight (self-emissive); the supply voltage for logic is 2.8V (VDD), and the supply voltage for display is 9V(VCC).

    The current with 50% checkerboard display is 7.25V (for white color), 1/64 driving duty.

    X096-2864KSWAG01-H30 is ideal for smart home applications, financial-POS, intelligent technology devices, medical instruments, etc.

    This module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.
