0.99“ Small Size Circle 128 RGB×115 Dots TFT LCD Display Module Screen

Short Description:


  • Model No: N099-1211KBWPG01-C12
  • Size: 0.99 inch
  • Pixels: 128×115 Dots
  • A.A: 24.36×21.89 mm
  • Outline: 26.71×26.22×1.86 mm
  • View Direction: IPS/Free
  • Interface: SPI / MCU
  • Brightness(cd/m²): 350
  • Driver IC: GC9107
  • Touch Panel: Without Touch Panel
  • Product Detail

    Product Tags

    General Description

    Display Type IPS-TFT-LCD
    Brand name WISEVISION
    Size 0.99 inch
    Pixels 40×160 Dots
    View Direction IPS/Free
    Active Area(A.A) 24.36×21.89 mm
    Panel Size 26.71×26.22×1.86 mm
    Color arrangement RGB Vertical stripe
    Color 65K
    Brightness 350 (Min)cd/m²
    Interface SPI / MCU
    Pin Number 12
    Driver IC GC9107
    Backlight Type 2 CHIP-WHITE LED
    Voltage 2.5~3.3 V
    Weight 1.2
    Operational Temperature -20 ~ +70 °C
    Storage Temperature -30 ~ +80°C

    Product Description

    N099-1211KBWPG01-C12 is a round IPS TFT-LCD display module with resolution 128x115 pixels. This round TFT display comprises an IPS TFT-LCD panel built with a GC9107 driver IC that can communicate through SPI interface.

    N099-1211KBWPG01-C12 is adopted IPS panel, which has the advantage of higher contrast, true black background when the display or pixel is off and wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical), contrast ratio 1,200:1 (typical value), brightness 350 cd/m² (typical value), anti-glare surface panel.

    The power supply voltage of Display module is from 2.5V to 3.3V, the typical value of 2.8V. It can be operating at temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃. This model module is suitable for devices such as intelligent instruments and wearable devices.

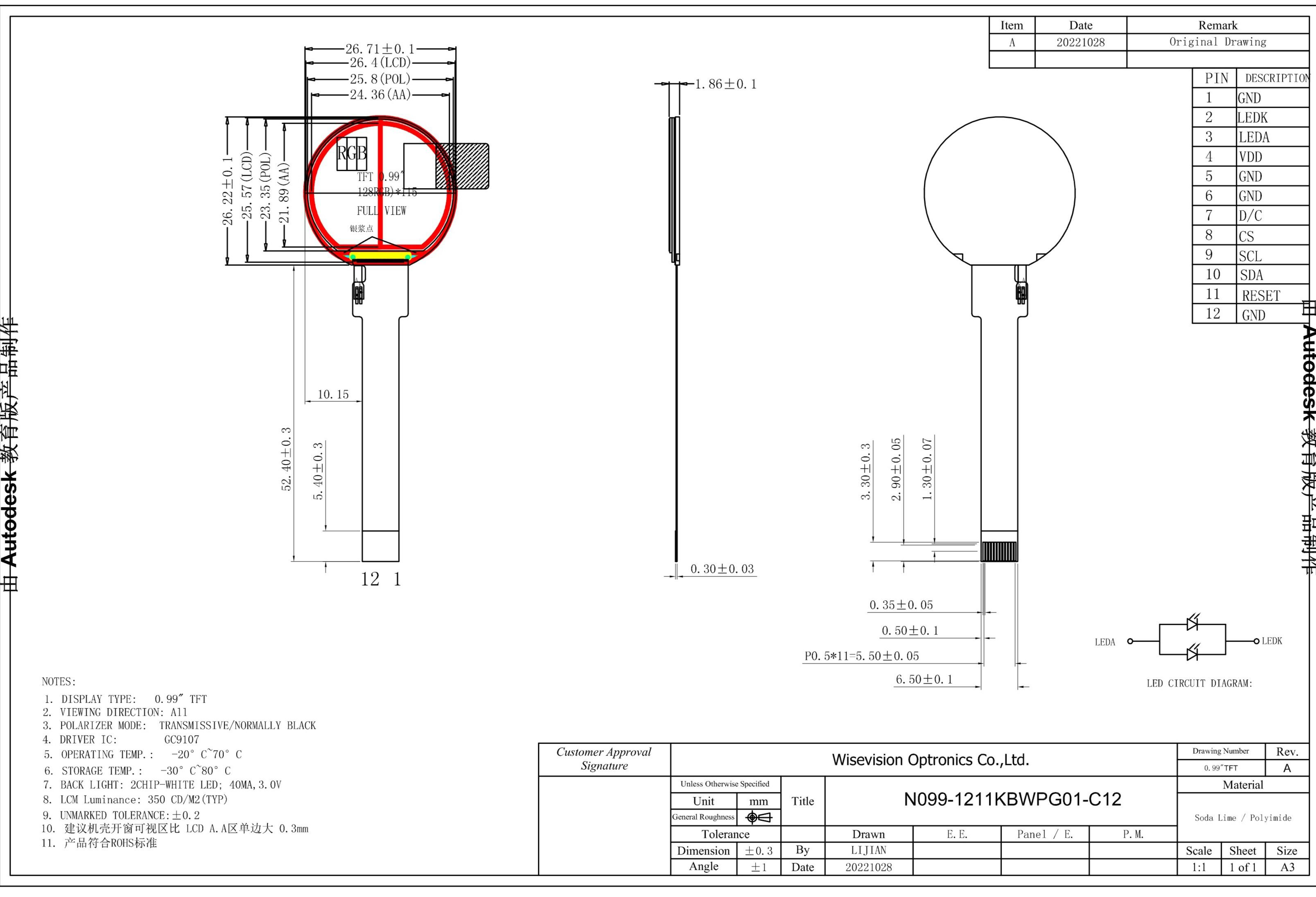

    Mechanical Drawing

    blueprint
