096“ Small Size TFT Display Module Screen
General Description
| Display Type | IPS-TFT-LCD |
| Brand name | WISEVISION |
| Size | 0.96 inch |
| Pixels | 80×160 Dots |
| View Direction | IPS/Free |
| Active Area(A.A) | 10.8×21.7 mm |
| Panel Size | 13.5×27.95×1.5 mm |
| Color | 65K |
| Brightness | 400(Min)cd/m² |
| Interface | SPI / MCU |
| Pin Number | 13 |
| Driver IC | ST7735S |
| Backlight Type | 1 CHIP-WHITE LED |
| Voltage | -0.3~4.6 V |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |

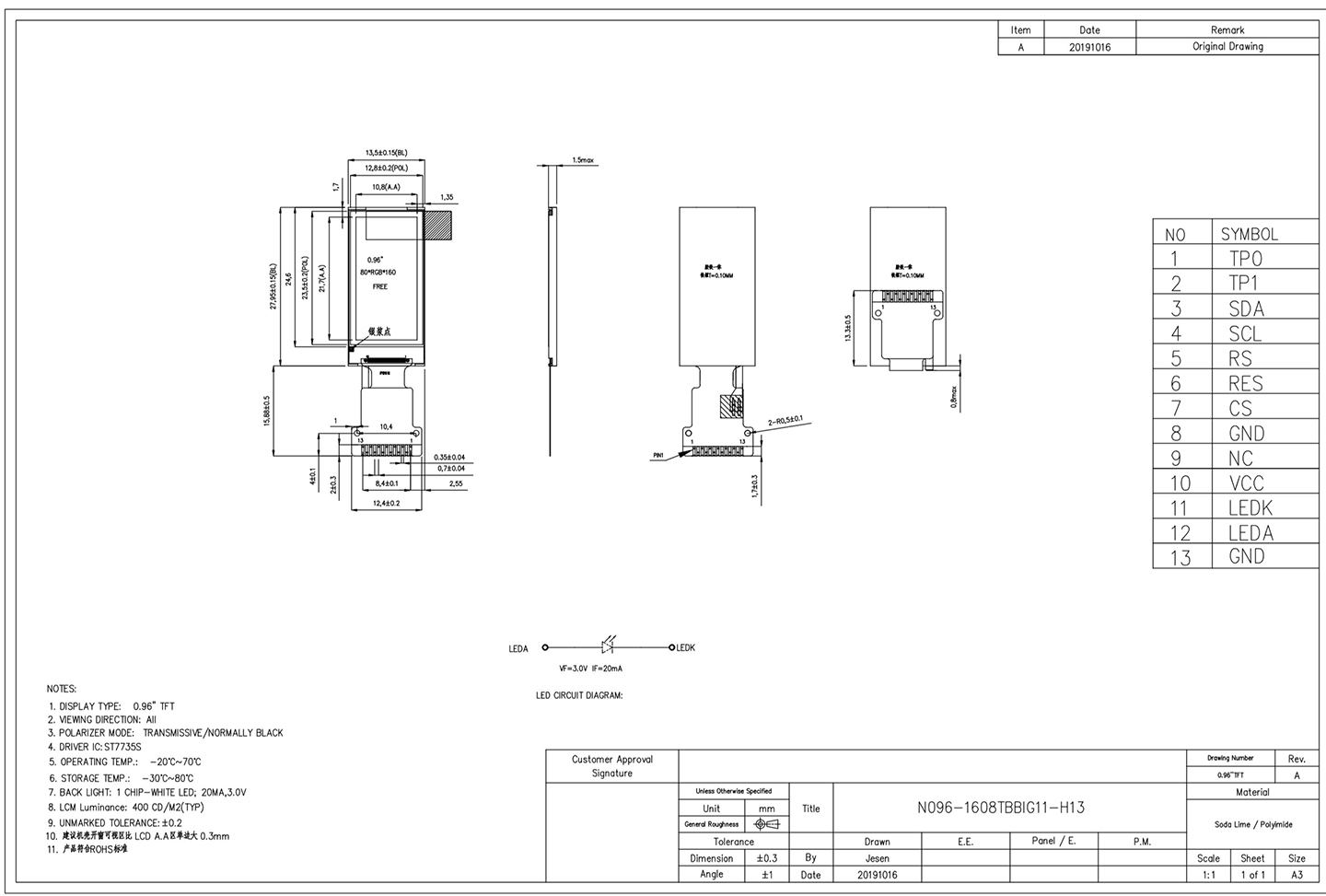

Mechanical Drawing
N096-1608TBBIG11-H13 is a 0.96-inch IPS small TFT LCD display module that will change your visual experience. The TFT display module has a resolution of 80 x 160 pixels and is designed to deliver stunningly clear, vivid images.
The display module is built-in with ST7735S controller IC and supports a 4-wire SPI interface to ensure seamless and efficient communication between the display and the device. The wide supply voltage (VDD) range of 2.5V to 3.3V makes it compatible with a variety of electronic systems, providing flexibility and ease of use.
One of the standout features of this 0.96-inch TFT LCD display is its built-in IPS (In-Plane Switching) panel. This technology offers a wider viewing angle of left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typical), allowing users to enjoy clear, vivid visuals from all angles. Whether you're watching videos, viewing photos or playing games, the display ensures a superior visual experience.
With a module brightness of 400 cd/m² and a contrast ratio of 800, this TFT LCD display module delivers rich and dynamic colors to bring your content to life. Whether you use it for industrial applications, consumer electronics or wearables, this display guarantees excellent image quality.
N096-1608TBBIG11-H13 is very suitable for applications such as wearable devices, medical instruments, E-Cigarette. The operating temperature of this module is -20 ℃ to 70 ℃, and the storage temperature is -30 ℃ to 80 ℃.
Mechanical Drawing
