099“ Small Size 40 RGB×160 Dots TFT LCD Display Module Screen

Short Description:

Model No: N099-0416THBIG01-H10

Size: 0.99 inch

Pixels: 40×160 Dot

A.A: 6.095×24.385 mm

Outline: 8.6×29.8×1.5 mm

View Direction: IPS/Free

Interface: SPI / MCU

Brightness(cd/m²): 300

Driver IC: GC9D01

Touch Panel: Without Touch Panel

Send email to us Download as PDF

Product Detail

Product Tags

General Description

Display Type	IPS-TFT-LCD
Brand name	WISEVISION
Size	0.99 inch
Pixels	40×160 Dots
View Direction	IPS/Free
Active Area(A.A)	6.095×24.385 mm

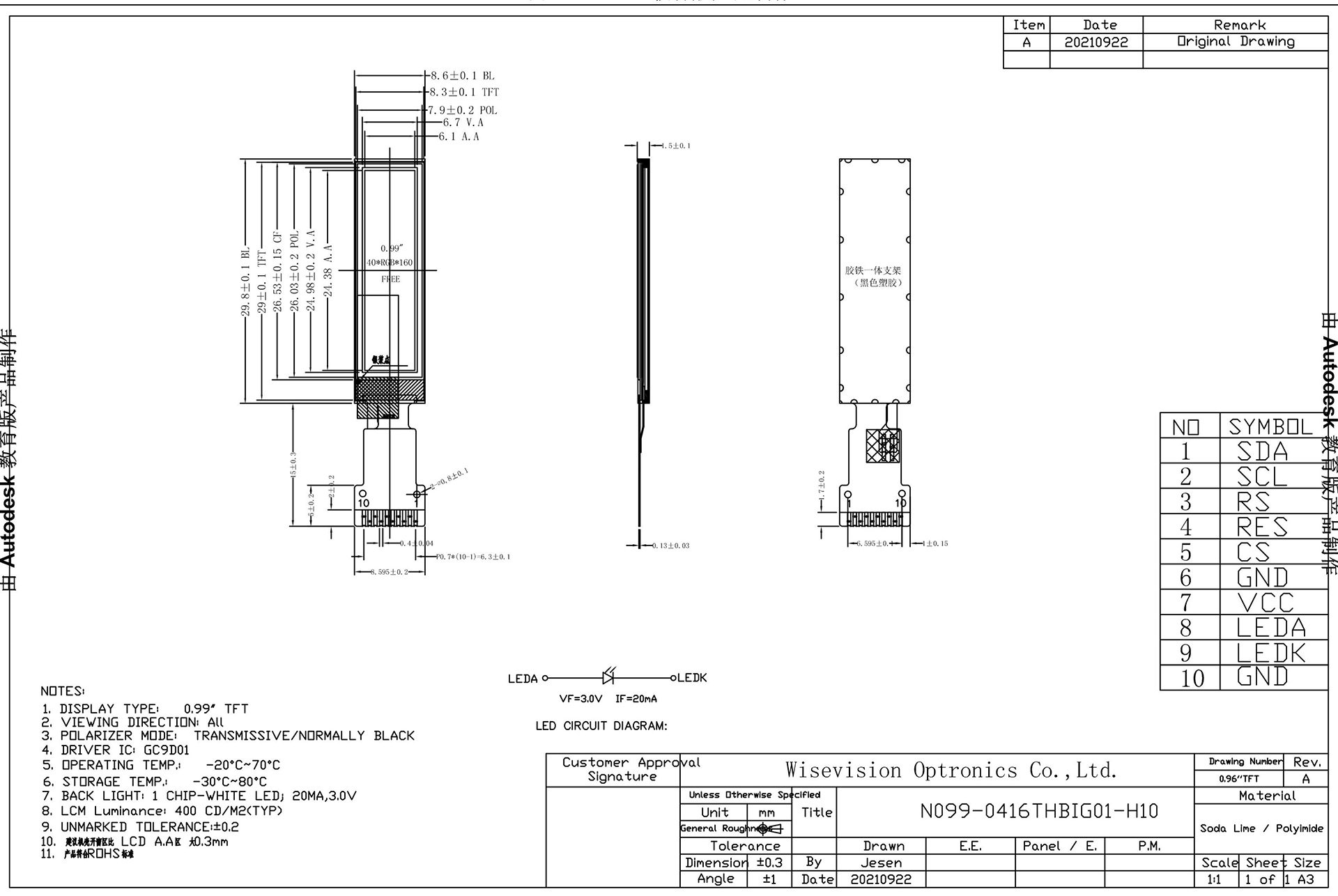

Panel Size	8.6×29.8×1.5 mm
Color arrangement	RGB Vertical stripe
Color	65K
Brightness	300 (Min)cd/m²
Interface	SPI / MCU
Pin Number	10
Driver IC	GC9D01
Backlight Type	1 CHIP-WHITE LED
Voltage	2.4~3.3 V
Weight	TBD
Operational Temperature	-20 ~ +70 °C
Storage Temperature	-30 ~ +80°C

Product Information

N099-0416THBIG01-H10 is a small-sized 0.99-inch IPS wide-angle TFT-LCD display module.

This small-sized TFT-LCD panel has a resolution of 40x160 pixels, built-in GC9D01 controller IC, supports 4-wire SPI interface, a supply voltage (VDD) range of 2.4V~3.3V, module brightness of 300 cd/m², and contrast of 1000.

This module is in direct screen mode, and the panel adopts wide angle IPS (In plane Switching) technology.

The viewing range is left: 85/right: 85/up: 85/down: 85 degrees. The IPS panel has a wide range of viewing angles, bright colors, and high-quality images that are saturated and natural.

It is very suitable for applications such as wearable devices, medical instruments, E-Cigarette.

The operating temperature of this module is -20 ℃ to 70 ℃, and the storage temperature is -30 ℃ to 80 ℃.
