1.06“ Small Size 96 RGB×160 Dots TFT LCD Display Module Screen
General Description
| Display Type | TFT-LCD |
| Brand name | WISEVISION |
| Size | 1.06 inch |
| Pixels | 96×160 Dots |
| View Direction | IPS/Free |
| Active Area(A.A) | 13.824×23.04 mm |
| Panel Size | 8.6×29.8×1.5 mm |
| Color arrangement | RGB Vertical stripe |
| Color | 65K |
| Brightness | 400 (Min)cd/m² |
| Interface | 4 Line SPI |
| Pin Number | 13 |
| Driver IC | GC9107 |
| Backlight Type | 1 CHIP-WHITE LED |
| Voltage | 2.5~3.3 V |
| Weight | 1.3 g |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |
Product Information
N106-1609TBBIG41-H13 is a small-sized 1.06-inch IPS wide-angle TFT-LCD display module.
This small-sized TFT-LCD panel has a resolution of 96x160 pixels, built-in GC9107 controller IC, supports 4-wire SPI interface, a supply voltage (VDD) range of 2.5V~3.3V, module brightness of 400 cd/m², and contrast of 800.
The module is an advanced display panel, Its wide-angle IPS technology delivers a superior viewing experience, vibrant colors and high-quality images.
With its compact size and impressive temperature resistance, the panel is ideal for a variety of applications, including wearable devices and medical instrumentation.
Use N106-1609TBBIG41-H13 to enhance your visual experience and witness the true power of technology.
The operating temperature of this module is -20 ℃ to 70 ℃, and the storage temperature is -30 ℃ to 80 ℃.

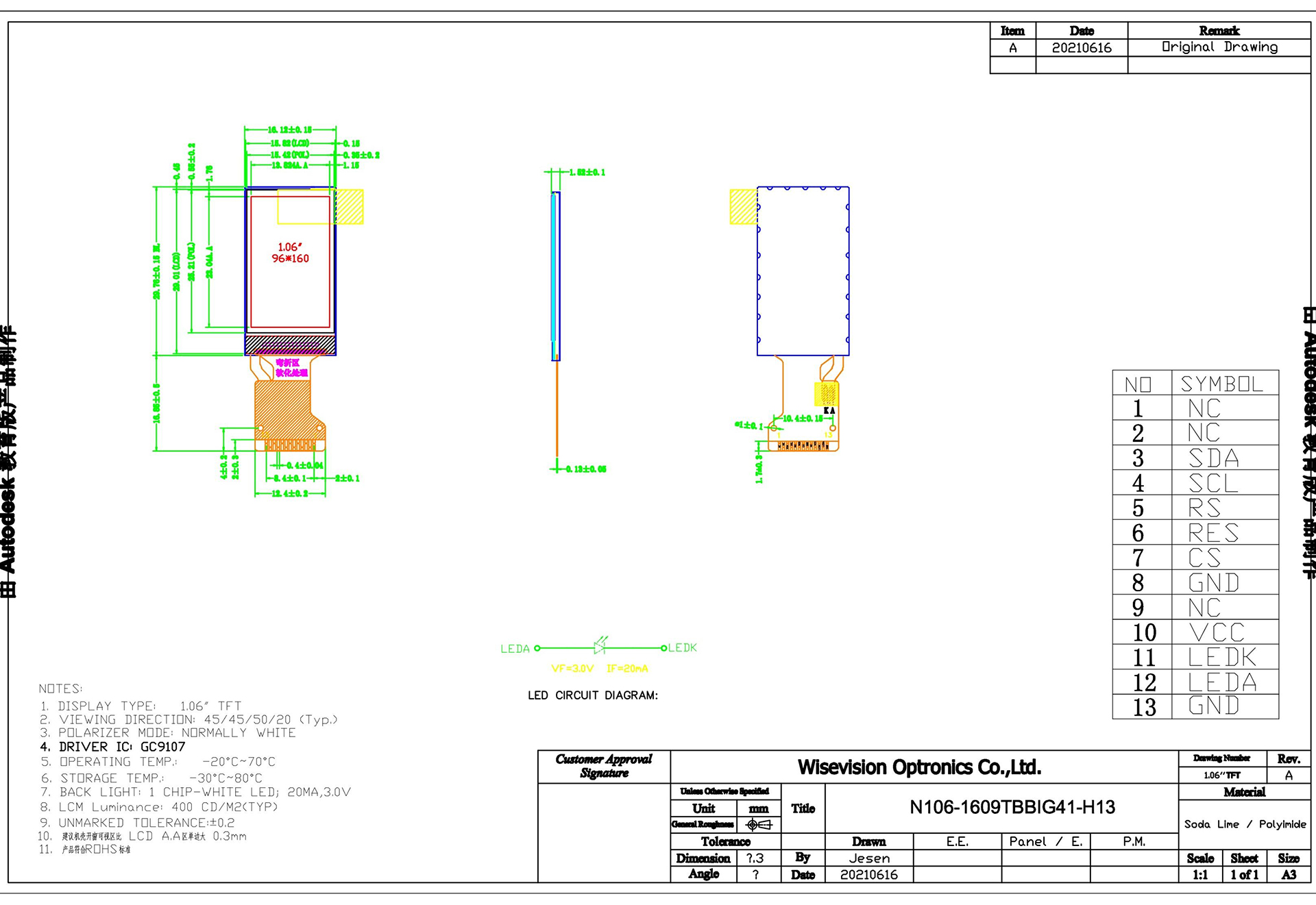

Mechanical Drawing
Product Introduction
Introducing our latest innovative product, a 1.06-inch small size 96 RGB × 160 dots TFT LCD display module screen. This incredible product showcases cutting-edge technology and delivers an unparalleled visual experience. With its compact size and superior functionality, it is revolutionizing the way we view and interact with monitors.
The 1.06-inch small-size TFT LCD module screen has a high resolution of 96 RGB × 160 dots, ensuring clear and delicate images. Whether you're viewing photos, videos or playing games, every detail comes alive for a truly immersive experience. Vibrant colors and sharp contrasts add depth and vibrancy to your content, making it a joy to watch.
One of the outstanding features of this display module is its small size. It measures just 1.06 inches, making it ideal for compact devices such as smartwatches, fitness trackers, and IoT devices. Now you can have a high-quality display in the smallest device for a more diverse user experience.
The TFT LCD display module screen also features wide viewing angles, ensuring content can be easily viewed from all angles without compromising on quality. Whether you're viewing the display from the front or the side, you get the same level of clarity and rich colors.
Another striking aspect of this product is its energy efficiency. Low power consumption extends the battery life of your device, making it ideal for portable electronics. You can now enjoy hours of entertainment without worrying about draining your battery.
In addition, the 1.06-inch small size TFT LCD display module screen can be easily integrated into existing systems. With a simple interface and compatibility with various platforms, it can be seamlessly integrated into your product design, saving time and effort during the development process.
In short, the 1.06-inch small size 96 RGB × 160 dots TFT LCD display module screen is a game changer in the display field. Its compact size, high resolution, wide viewing angle and energy efficiency make it ideal for a variety of applications. Experience the future of display technology with this innovative product.
