1.08 “ Small Size 128 RGB×220 Dots TFT LCD Display Module Screen

Short Description:


  • Model No: N108-1222TBBIG15-H13
  • Size: 1.08 inch
  • Pixels: 128×220 Dots
  • A.A: 13.82×23.76 mm
  • Outline: 16.12×29.76×1.52mm
  • View Direction: IPS/Free
  • Interface: SPI / MCU
  • Brightness(cd/m²): 300
  • Driver IC: GC9A01
  • Touch Panel: Without Touch Panel
  • Product Detail

    Product Tags

    General Description

    Display Type IPS-TFT-LCD
    Brand name WISEVISION
    Size 1.08 inch
    Pixels 128×220 Dots
    View Direction IPS/Free
    Active Area (A.A) 13.82×23.76 mm
    Panel Size 16.12×29.76×1.52 mm
    Color arrangement RGB Vertical stripe
    Color 65K
    Brightness 300 (Min)cd/m²
    Interface SPI / MCU
    Pin Number 13
    Driver IC GC9A01
    Backlight Type 1 CHIP-WHITE LED
    Voltage 2.5~3.3 V
    Weight 1.2 g
    Operational Temperature -20 ~ +70 °C
    Storage Temperature -30 ~ +80°C

    Product Information

    N108-1222TBBIG15-H13 is a small-sized 1.08-inch IPS wide-angle TFT-LCD display module. This small-sized TFT-LCD panel has a resolution of 128×220 pixels, built-in GC9A01 controller IC, supports 4-wire SPI interface, a supply voltage (VDD) range of 2.5V~3.3V, module brightness of 300 cd/m², and contrast of 800.

    One of the standout features of this 1.08-inch TFT LCD display is its built-in IPS (In-Plane Switching) panel. This technology offers a wider viewing angle of left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typical), allowing users to enjoy clear, vivid visuals from all angles. Whether you're watching videos, viewing photos or playing games, the display ensures a superior visual experience.

    N108-1222TBBIG15-H13 is very suitable for applications such as wearable devices, white products, video systems, medical instruments, smart locks. The operating temperature of this module is -20 ℃ to 70 ℃, and the storage temperature is -30 ℃ to 80 ℃.

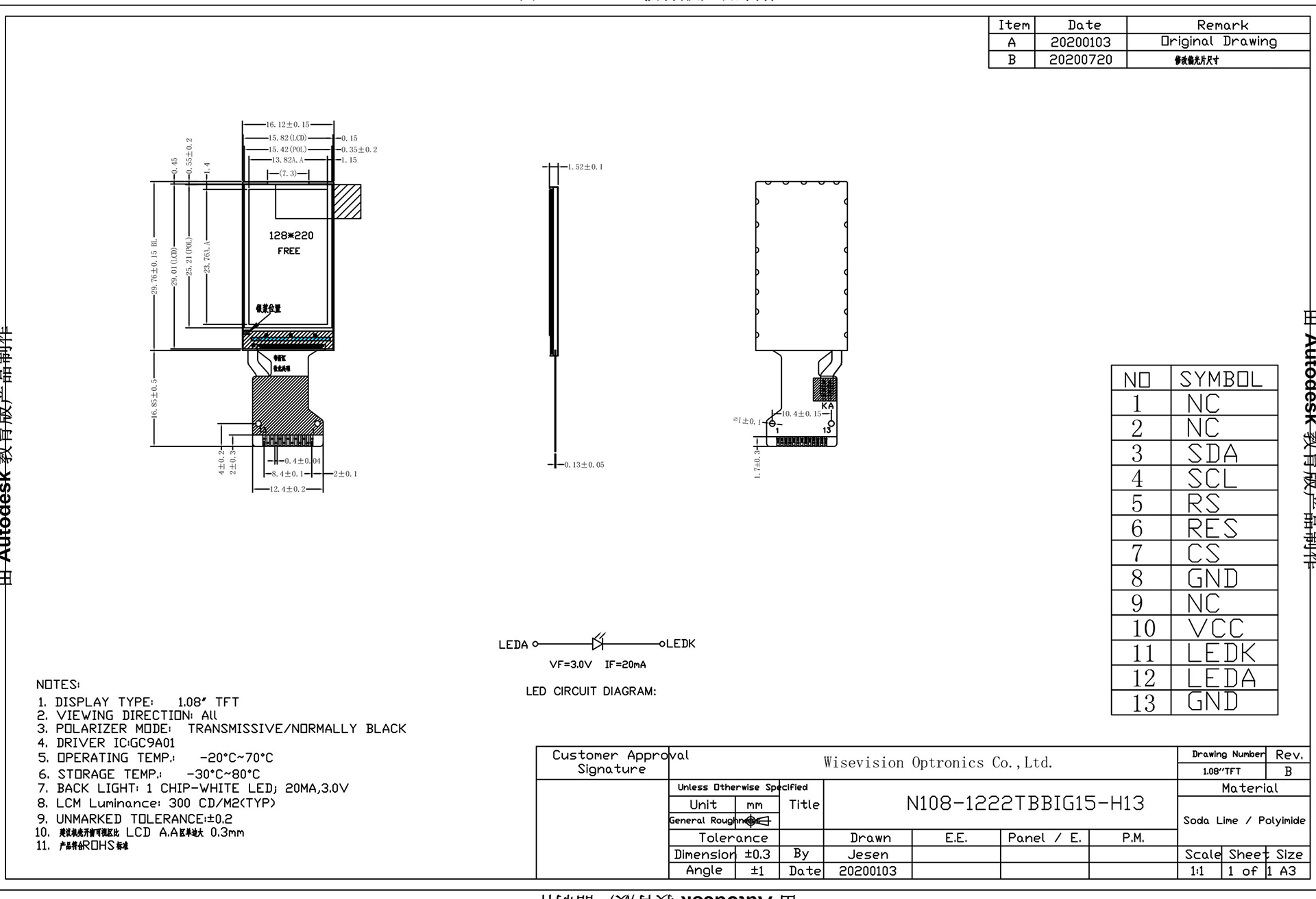

    Mechanical Drawing

    108-TFT5
