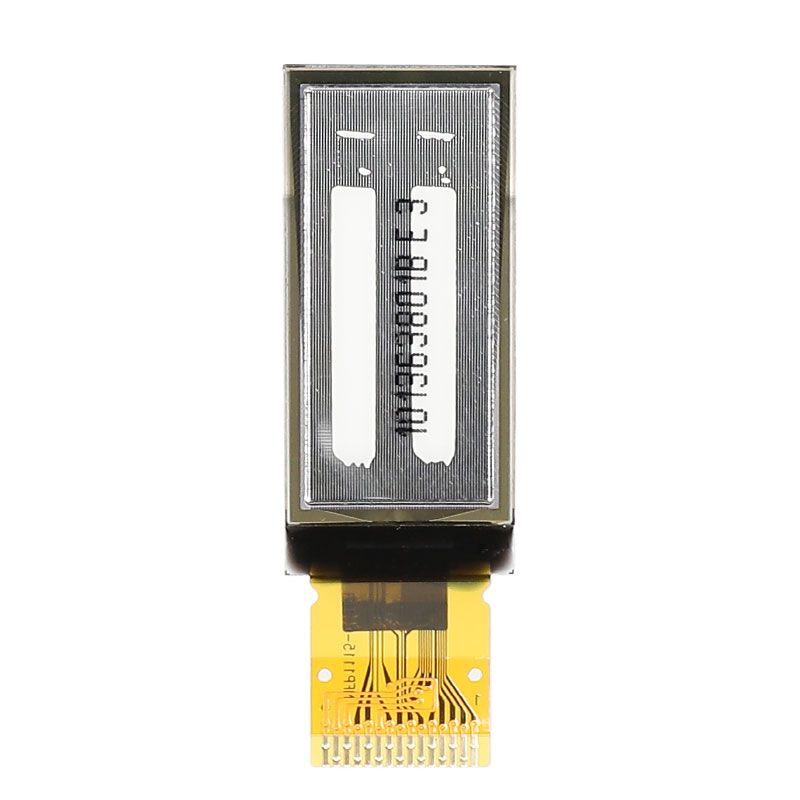

1.09“ Small 64 × 128 Dots OLED Display Module Screen
General Description
| Display Type | OLED |
| Brand name | WISEVISION |
| Size | 1.09 inch |
| Pixels | 64×128 Dots |
| Display Mode | Passive Matrix |
| Active Area (A.A) | 10.86×25.58mm |
| Panel Size | 14×31.96×1.22mm |
| Color | Monochrome (White) |
| Brightness | 80 (Min)cd/m² |
| Driving Method | Internal supply |
| Interface | 4-wire SPI |
| Duty | 1/64 |
| Pin Number | 15 |
| Driver IC | SSD1312 |
| Voltage | 1.65-3.5 V |
| Weight | TBD |
| Operational Temperature | -40 ~ +85 °C |
| Storage Temperature | -40 ~ +85°C |
Product Information
N109-6428TSWYG04-H15 is a popular small OLED display which is made of 64x128pixels, diagonal size 1.09 inch, the module is built-in with SSD1312 controller IC; it supports 4-wire SPI interface and having 15 pins.
3V power supply. The OLED Display Module is a COG structure OLED display which is no need of backlight (self-emissive); it's lightweight and low power consumption.
The supply voltage for logic is 2.8V (VDD), and the supply voltage for display is 7.5V(VCC). The current with 50% checkerboard display is 7.4V (for white color), 1/64 driving duty.
N109-6428TSWYG04-H15 is very suitable for wearable device, handheld instruments, intelligent technology devices, automotive, medical instruments, wearable devices, etc.
The OLED display module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.
Upgrade your product now with the innovative OLED module, model number: N109-6428TSWYG04-H15.
With its compact size, high resolution and superior brightness, it promises to enhance the visual experience of your device.
Whether you are designing wearables, handheld devices or any other electronic product, this OLED module is the perfect choice.
Don't miss the opportunity to take your products to the next level with this state-of-the-art OLED module.
Below Are The Advantages Of This Low-power OLED Display
1. Thin–No need of backlight, self-emissive;
2. Wide viewing angle :Free degree;
3. High Brightness: 100 cd/m²;
4. High contrast ratio(Dark Room): 2000:1;
5. High response speed(＜2μS);
6.Wide Operation Temperature;
7.Lower power consumption.

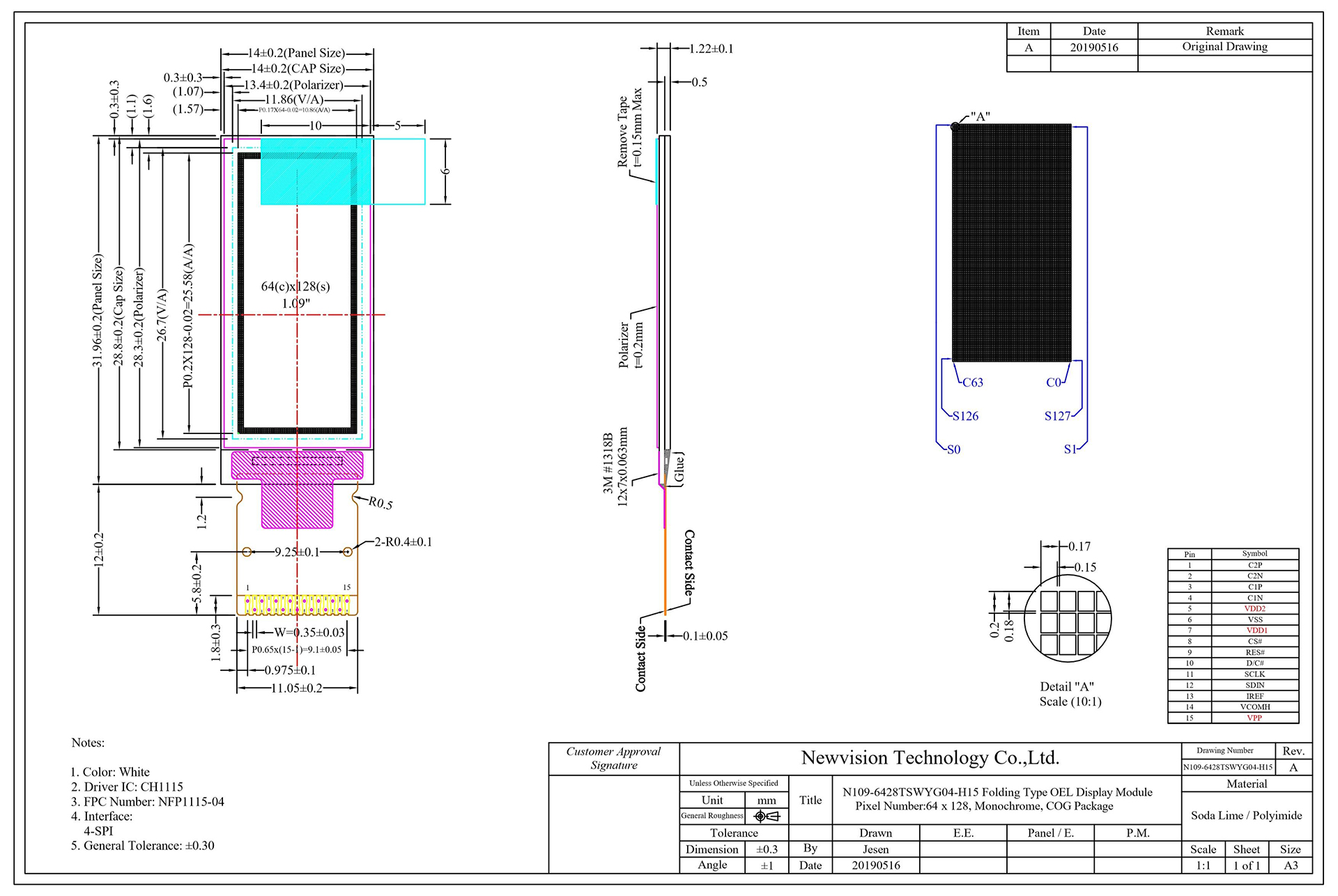

Mechanical Drawing
