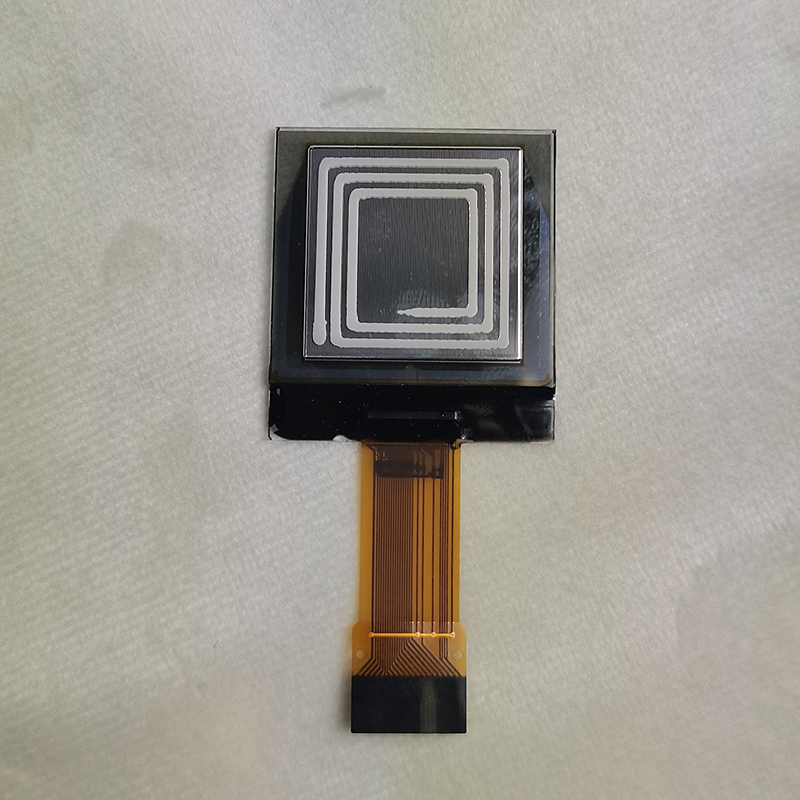

1.12 “ Small 128×128 Dots OLED Display Module Screen
General Description
| Display Type | OLED |
| Brand name | WISEVISION |
| Size | 1.12 inch |
| Pixels | 128×128 Dots |
| Display Mode | Passive Matrix |
| Active Area (A.A) | 20.14×20.14 mm |
| Panel Size | 27×30.1×1.25 mm |
| Color | Monochrome (White) |
| Brightness | 100 (Min)cd/m² |
| Driving Method | External supply |
| Interface | Parallel/I²C/4-wire SPI |
| Duty | 1/64 |
| Pin Number | 22 |
| Driver IC | SH1107 |
| Voltage | 1.65-3.5 V |
| Weight | TBD |
| Operational Temperature | -40 ~ +70 °C |
| Storage Temperature | -40 ~ +85°C |
Product Information
X112-2828TSWOG03-H22 is a 1.12 inch Graphic OLED display featuring COG structure; made of resolution 128x128 pixels.
The OLED Display has the outline dimension of 27×30.1×1.25 mm and AA size 20.14×20.14 mm;
This module is built-in with SH1107 controller IC; it supports parallel, 4-Wire SPI, /I²C interface, the supply voltage for Logic 3V (typical value), and the supply voltage for display is 12V. 1/128 driving duty.
X112-2828TSWOG03-H22 is a COG structure OLED display module that is lightweight, low power, and very thin.
It is suitable for meter devices, home applications, financial-POS, handheld instruments, intelligent technology devices, automotive, medical instruments, etc.
The OLED module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.
Below Are The Advantages Of This Low-power OLED Display
1. Thin–No need of backlight, self-emissive;
2. Wide viewing angle :Free degree;
3. High Brightness: 140 cd/m²;
4. High contrast ratio(Dark Room): 1000:1;
5. High response speed(＜2μS);
6. Wide Operation Temperature;
7. Lower power consumption.

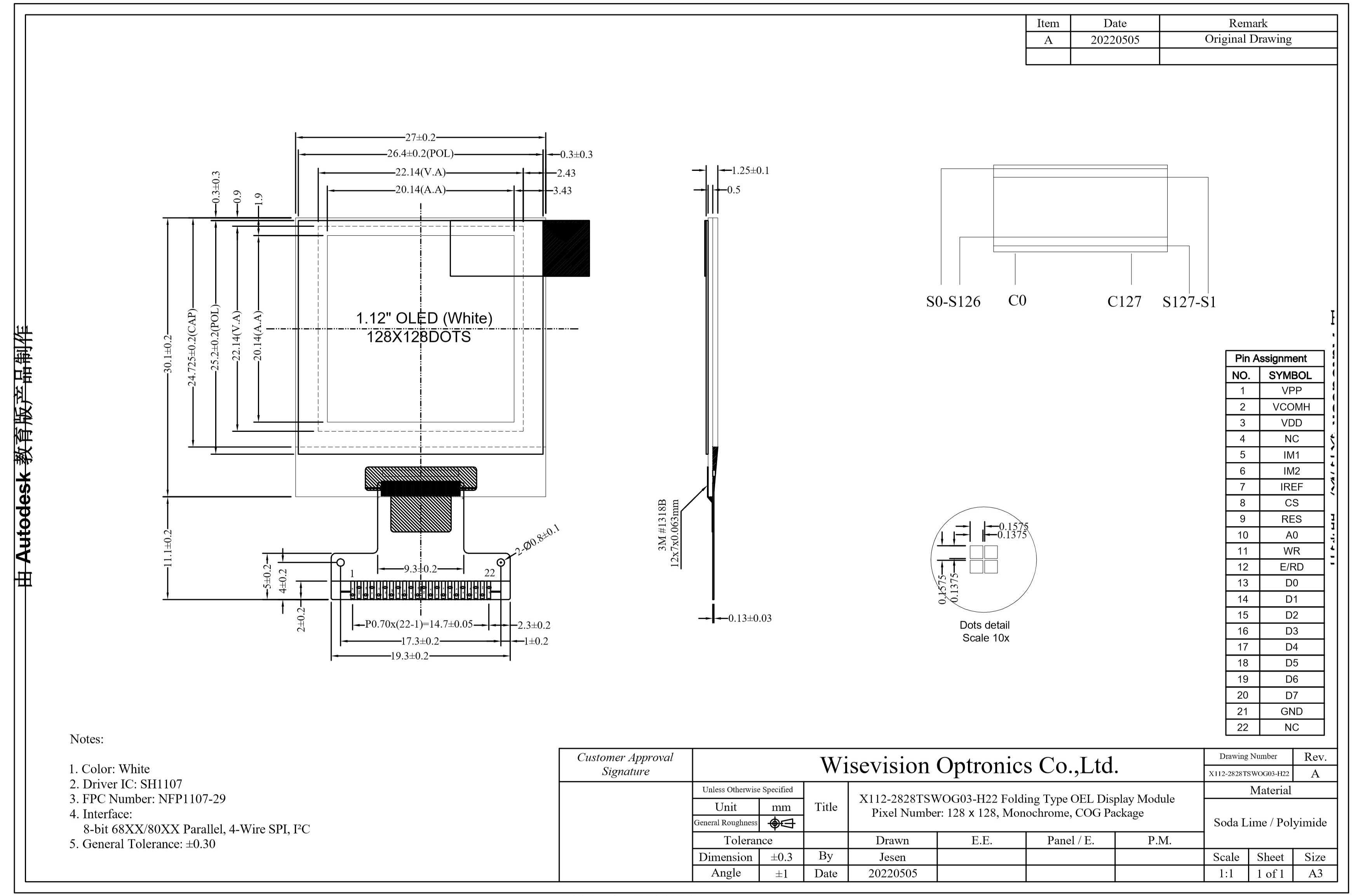

Mechanical Drawing
