1.12 “ Small Size 50 RGB×160 Dots TFT LCD Display Module Screen
General Description
| Display Type | IPS-TFT-LCD |
| Brand name | WISEVISION |
| Size | 1.12 inch |
| Pixels | 50×160 Dots |
| View Direction | ALL RIEW |
| Active Area (A.A) | 8.49×27.17 mm |
| Panel Size | 10.8×32.18×2.11 mm |
| Color arrangement | RGB Vertical stripe |
| Color | 65K |
| Brightness | 350 (Min)cd/m² |
| Interface | 4 Line SPI |
| Pin Number | 13 |
| Driver IC | GC9D01 |
| Backlight Type | 1 WHITE LED |
| Voltage | 2.5~3.3 V |
| Weight | 1.1 |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |
Product Information
N112-0516KTBIG41-H13 is a 1.12-inch IPS TFT-LCD with a resolution of 50x160 pixels. supports various interfaces such as SPI, MCU and RGB, providing flexibility for seamless integration into any project. The display's brightness of 350 cd/m² ensures clear, vivid visuals even in bright lighting conditions. The monitor uses the advanced GC9D01 driver IC to ensure smooth and efficient performance.
N112-0516KTBIG41-H13 adopts wide angle IPS (In plane Switching) technology. The viewing range is left: 70/right: 70/up: 70/down: 70 degrees. a contrast ratio of 1000:1, and an aspect ratio of 3:4 (typical value). The supply voltage for analog is from 2.5V to 3.3V (the typical value is 2.8V). The IPS panel has a wide range of viewing angles, bright colors, and high-quality images that are saturated and natural. This TFT-LCD module can work under temperatures from -20℃ to +70℃, and its storage temperatures range from -30℃ to +80℃.

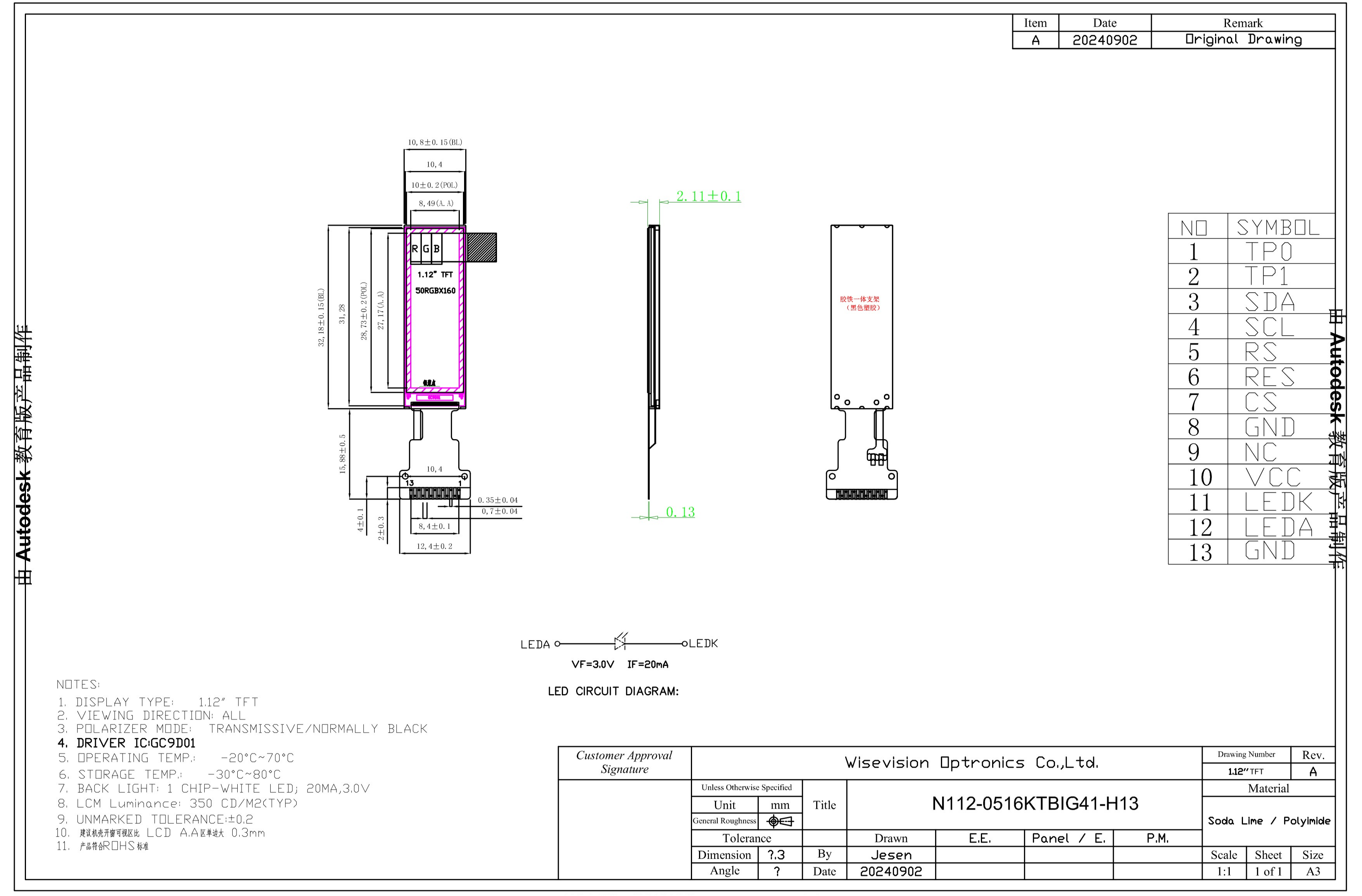

Mechanical Drawing
