1.14 “ Small Size 135 RGB×240 Dots TFT LCD Display Module Screen
General Description
| Display Type | IPS-TFT-LCD |
| Brand name | WISEVISION |
| Size | 1.14 inch |
| Pixels | 135×240 Dots |
| View Direction | IPS/Free |
| Active Area (A.A) | 14.86×24.91 mm |
| Panel Size | 17.6×31×1.6 mm |
| Color arrangement | RGB Vertical stripe |
| Color | 65K |
| Brightness | 400 (Min)cd/m² |
| Interface | SPI / MCU |
| Pin Number | 13 |
| Driver IC | ST7789V3 |
| Backlight Type | 1 CHIP-WHITE LED |
| Voltage | 2.4~3.3 V |
| Weight | 1.8 g |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |
Product Information
N114-2413THBIG01-H13 is a small-sized 1.14-inch IPS wide-angle TFT-LCD display module. This small-sized TFT-LCD panel has a resolution of 135×240 pixels, built-in ST7789V3 controller IC, supports 4-wire SPI interface, a supply voltage (VDD) range of 2.4V~3.3V, module brightness of 400 cd/m², and contrast of 800.
One of the standout features of this 1.14-inch TFT LCD display is its built-in IPS (In-Plane Switching) panel. This technology offers a wider viewing angle of left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typical), allowing users to enjoy clear, vivid visuals from all angles. Whether you're watching videos, viewing photos or playing games, the display ensures a superior visual experience.
N114-2413THBIG01-H13 is very suitable for applications such as wearable devices, medical instruments, white products, video systems, smart locks. The operating temperature of this module is -20 ℃ to 70 ℃, and the storage temperature is -30 ℃ to 80 ℃.
The N114-2413THBIG01-H13 TFT-LCD panel features superior specifications, advanced technology and versatile compatibility, making it a reliable and high-performance solution for all your display needs. Whether you are creating a new prototype or upgrading an existing device, this IPS TFT-LCD panel will take the user experience to new heights. Experience the future of visual displays with this state-of-the-art TFT-LCD panel.

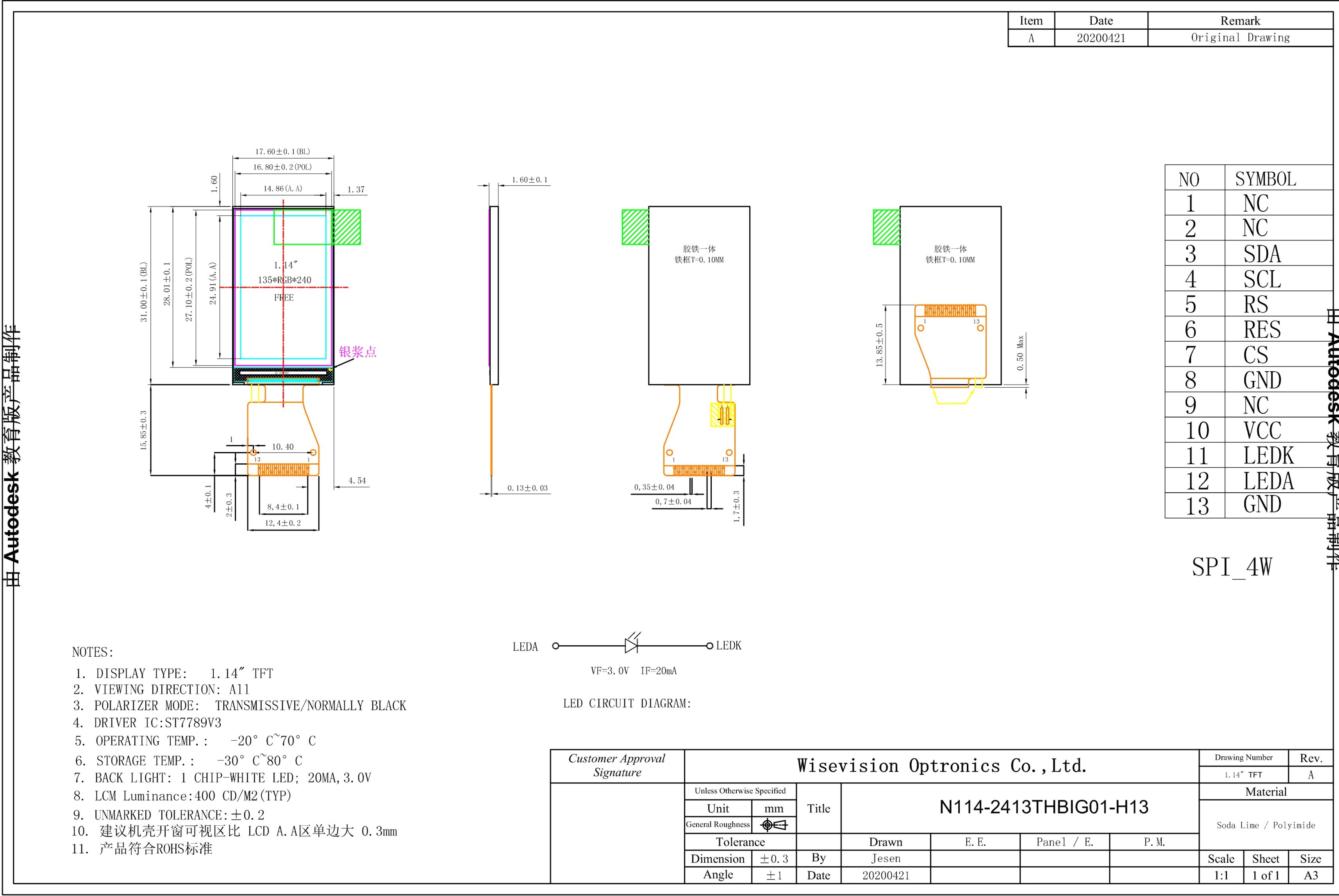

Mechanical Drawing
Product Information
Introducing our latest innovation in LCD display modules - 1.14-inch small size 135 RGB × 240 dots TFT LCD display module screen! This compact and versatile screen is designed to provide a vivid, clear display for a variety of applications.
Measuring only 1.14 inches, this TFT LCD display module provides a convenient solution for products requiring compact displays without compromising quality. Despite its large size, the screen boasts an impressive 135 RGB × 240 dot pixel resolution, ensuring images and text are clear, thereby enhancing the user experience.
This module uses advanced TFT technology to provide vivid colors and excellent contrast for a wide range of applications. Whether it is a portable gaming device, a digital camera or a smart watch, the 1.14-inch small size TFT LCD display module is designed to provide excellent visual performance.
One of the main features of this display module is its versatility. It is compatible with various display interfaces, including SPI and RGB, and can be seamlessly integrated into different products. Additionally, the module supports both landscape and portrait orientation, giving designers the flexibility to choose the display format that best suits their products.
The 1.14" small form factor TFT LCD display module also offers simple customization options. Our team of experts can assist in customizing software and hardware to meet specific requirements, ensuring a perfect fit for your product. From color calibration to touch screen integration, we offer comprehensive support, Helping you achieve the functionality and design aesthetic you want.
In summary, the small 1.14" 135 RGB × 240 dot TFT LCD display module screen combines compactness, versatility and superior visual performance. Whether you are developing handheld devices, wearable technology, or anything else that requires small, high-end Product for performance, - premium display, this module is the perfect solution. Trust our cutting-edge technology and expertise to turn your vision into reality with 1.14" small size TFT LCD display module.
