1.28 “ Small Size Circle 240×240 Dots TFT LCD Display Module Screen
General Description
| Display Type | IPS-TFT-LCD |
| Brand name | WISEVISION |
| Size | 1.28 inch |
| Pixels | 240×240 Dots |
| View Direction | IPS/Free |
| Active Area (A.A) | 32.4×32.4 mm |
| Panel Size | 35.6×38.1×1.6 mm |
| Color arrangement | RGB Vertical stripe |
| Color | 65K |
| Brightness | 350 (Min)cd/m² |
| Interface | SPI / MCU |
| Pin Number | 12 |
| Driver IC | GC9A01 |
| Backlight Type | 1 CHIP-WHITE LED |
| Voltage | 2.5~3.3 V |
| Weight | 1.2 g |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |
Product Information
N128-2424THWIG04-H12 is a circle IPS TFT-LCD screen with a 1.28-inch diameter display with resolution 240x240 pixels.
This round TFT display comprises an IPS TFT-LCD panel built with a GC9A01 driver IC that can communicate via SPI interface.
N128-2424THWIG04-H12 is adopted IPS (In plane Switching) panel, which has the advantage of higher contrast, true black background when the display or pixel is off and wider viewing angle of Left:85 / Right:85 / Up:85/ Down:85 degree (typical), contrast ratio 1,100:1 (typical value), brightness 350 cd/m².
The power supply voltage of LCM is from 2.5V to 3.3V, the typical value of 2.8V.
The display module is suitable for compact devices, wearable devices, home automation products, white products, video systems, etc.
It can be operating at temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃.

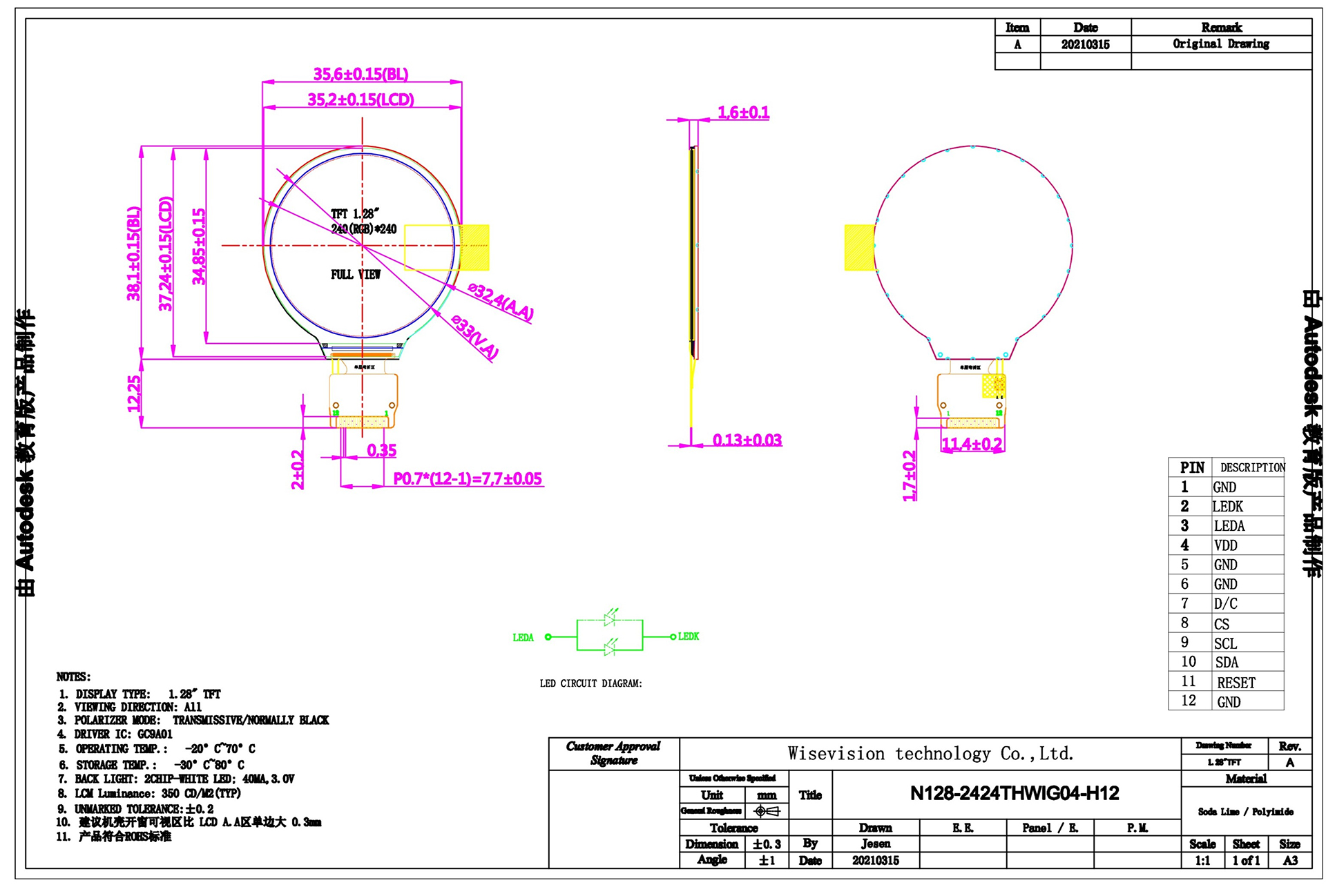

Mechanical Drawing
