1.30 “ Small 128×64 Dots OLED Display Module Screen

Short Description:


  • Model No: X130-2864KSWLG01-H30
  • Size: 1.30 inch
  • Pixels: 128×64 Dots
  • A.A: 29.42×14.7 mm
  • Outline: 34.5×23×1.4 mm
  • Brightness: 90 (Min)cd/m²
  • Interface: Parallel/I²C/4-wire SPI
  • Driver IC: CH1116
  • Product Detail

    Product Tags

    General Description

    Display Type OLED
    Brand name WISEVISION
    Size 1.30 inch
    Pixels 128×64 Dots
    Display Mode Passive Matrix
    Active Area (A.A) 29.42×14.7 mm
    Panel Size 34.5×23×1.4 mm
    Color White/Blue
    Brightness 90 (Min)cd/m²
    Driving Method External supply
    Interface Parallel/I²C/4-wire SPI
    Duty 1/64
    Pin Number 30
    Driver IC CH1116
    Voltage 1.65-3.3 V
    Weight 2.18 (g)
    Operational Temperature -40 ~ +85 °C
    Storage Temperature -40 ~ +85°C

    Product Information

    X130-2864KSWLG01-H30 is a 1.30" COG graphic OLED display module; it's made of 128x64 pixels.

    This 1.30 OLED module is built-in with CH1116 controller IC; it supports Parallel/I²C/4-wire SPI interfaces.

    The OLED COG module is very thin, light weight and low power consumption which is great for handheld instruments, wearable devices, smart medical device, medical instruments, etc.

    The supply voltage for logic is 2.8V (VDD), and the supply voltage for display is 12V(VCC). The current with 50% checkerboard display is 8V (for white color), 1/64 driving duty.

    The OLED display module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.

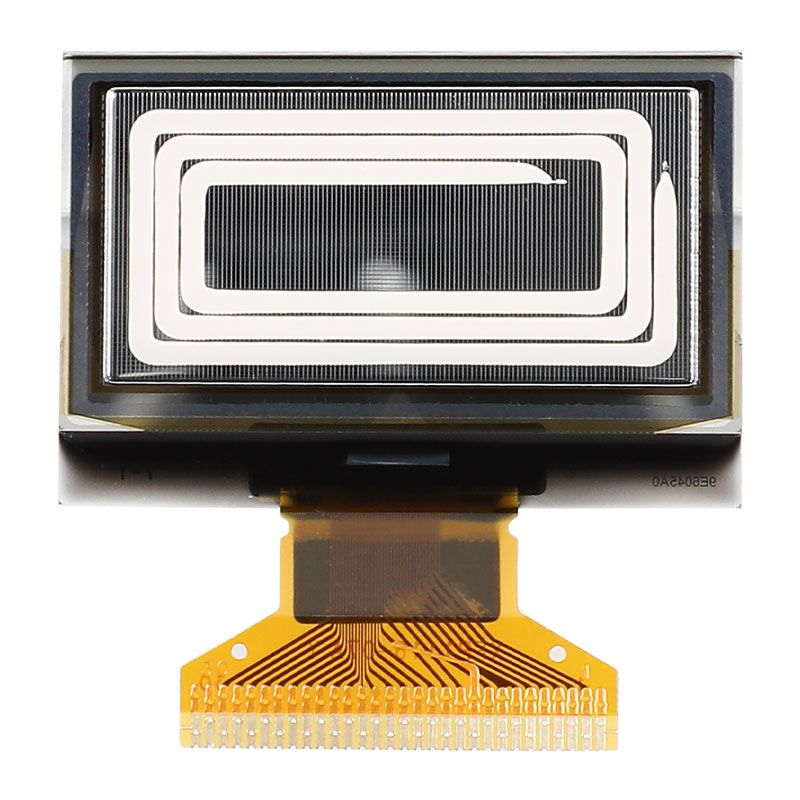

    130-OLED3

    Below Are The Advantages Of This Low-power OLED Display

    1. Thin–No need of backlight, self-emissive;

    2. Wide viewing angle :Free degree;

    3. High Brightness: 110(MIN) cd/m²;

    4. High contrast ratio(Dark Room): 2000:1;

    5. High response speed(<2μS);

    6. Wide Operation Temperature;

    7. Lower power consumption.

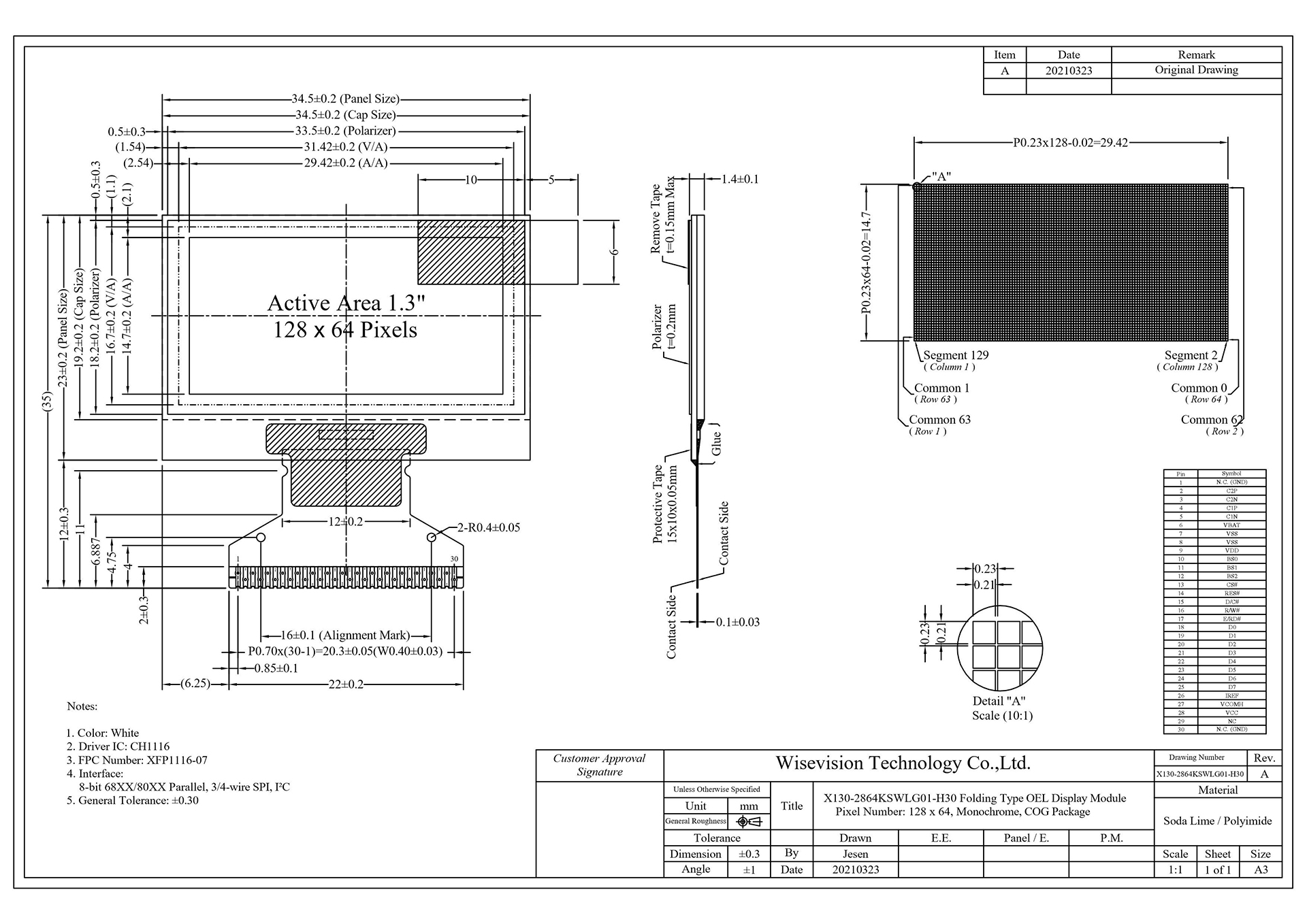

    Mechanical Drawing

    130-OLED1

    Product Information

    Introducing our latest product 1.30-inch small OLED display module screen. This compact and versatile display module is designed to provide a high-quality visual experience for a variety of applications. The resolution of 128x64 dots provides crisp and clear images and text, ensuring optimal readability.

    The OLED technology used in this display module offers several advantages over traditional LCD screens. Self-illuminating pixels deliver vibrant colors and deep black levels, resulting in incredible contrast and enhanced visual performance. In addition, the OLED display has a wide viewing angle, allowing users to see content clearly from different angles.

    This small form factor display module features a slim design suitable for integration into space-constrained environments. The compact form factor makes it ideal for wearable devices, portable electronics and handheld instruments. Its lightweight construction ensures easy installation without adding unnecessary bulk.

    The module integrates advanced drivers and controllers for seamless compatibility with a variety of electronic systems. It can be easily connected to a microcontroller, motherboard or any other digital device via standard interfaces. User-friendly design and rich documentation make integration easy for professionals and amateurs alike.

    This OLED display module has low power consumption and is energy-saving, ensuring extended battery life of portable devices. This feature, combined with its excellent visibility in indoor and outdoor environments, makes it an ideal solution for battery-powered applications.

    In addition to excellent display quality, the module also offers outstanding durability. Designed to withstand harsh conditions, it resists shock and vibration to ensure reliable performance even in harsh environments.

    Whether you are developing smart watches, handheld devices, or any other electronic product that requires a high-quality display, the 1.30" small OLED display module screen is the perfect choice. Its superior visual performance, compact size, and ruggedness make it ideal for Versatile solutions for a wide range of applications. Upgrade your product's display now and deliver an enhanced user experience with our premium OLED display modules.
