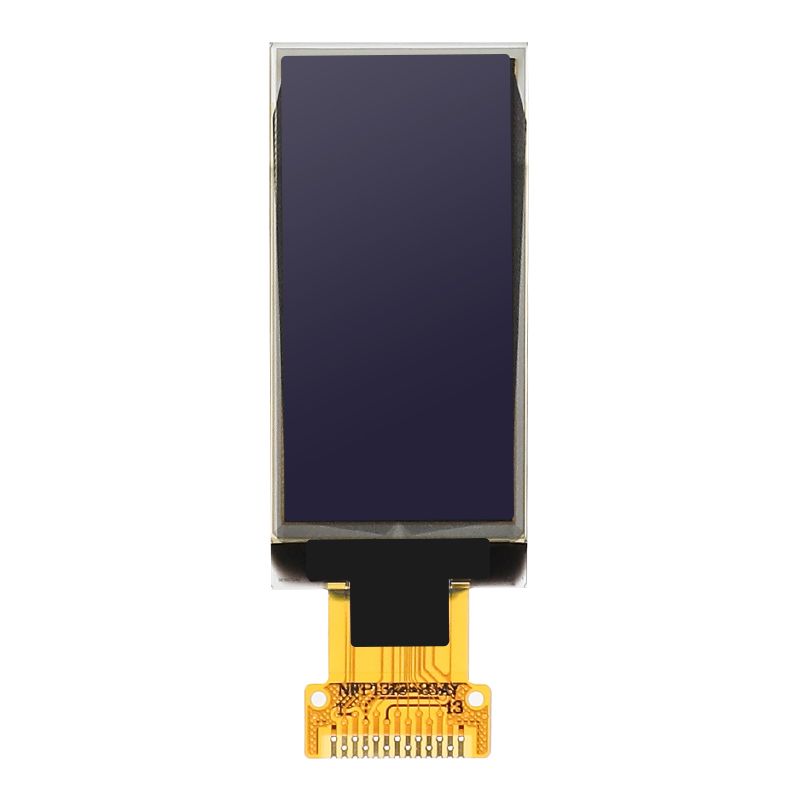

1.30 “ Small 64 × 128 Dots OLED Display Module Screen
General Description
| Display Type | OLED |
| Brand name | WISEVISION |
| Size | 1.30 inch |
| Pixels | 64×128 Dots |
| Display Mode | Passive Matrix |
| Active Area (A.A) | 14.7×29.42 mm |
| Panel Size | 17.1×35.8×1.43 mm |
| Color | White/Blue |
| Brightness | 100 (Min)cd/m² |
| Driving Method | External supply |
| Interface | I²C/4-wire SPI |
| Duty | 1/128 |
| Pin Number | 13 |
| Driver IC | SSD1312 |
| Voltage | 1.65-3.5 V |
| Weight | TBD |
| Operational Temperature | -40 ~ +70 °C |
| Storage Temperature | -40 ~ +85°C |
Product Information
X130-6428TSWWG01-H13 is a 1.30 inch Graphic OLED display featuring COG structure; made of resolution 64x128 pixels.
The OLED Display has the outline dimension of 17.1×35.8×1.43 mm and AA size 14.7×29.42 mm;
This module is built-in with SSD1312 controller IC; it supports 4-Wire SPI, /I²C interface, the supply voltage for Logic 3V (typical value), and the supply voltage for display is 12V. 1/128 driving duty.
X130-6428TSWWG01-H13 is a COG structure OLED display module that is lightweight, low power, and very thin.
It is suitable for meter devices, home applications, financial-POS, handheld instruments, intelligent technology devices, automotive, medical instruments, etc.
The OLED module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.
Overall, our OLED module (Model X130-6428TSWWG01-H13) is the perfect choice for designers and developers looking for compact, high-resolution display solutions.
With its stylish design, excellent brightness and versatile interface options, this OLED panel is suitable for a variety of applications.
Believe that our expertise in OLED technology will provide you with a superior visual experience that will leave a deep impression on you.
Choose our OLED modules and unlock the endless possibilities of this advanced display technology.
Below Are The Advantages Of This Low-power OLED Display
1. Thin–No need of backlight, self-emissive;
2. Wide viewing angle :Free degree;
3. High Brightness: 160 cd/m²;
4. High contrast ratio(Dark Room): 10000:1;
5. High response speed(＜2μS);
6. Wide Operation Temperature;
7. Lower power consumption.

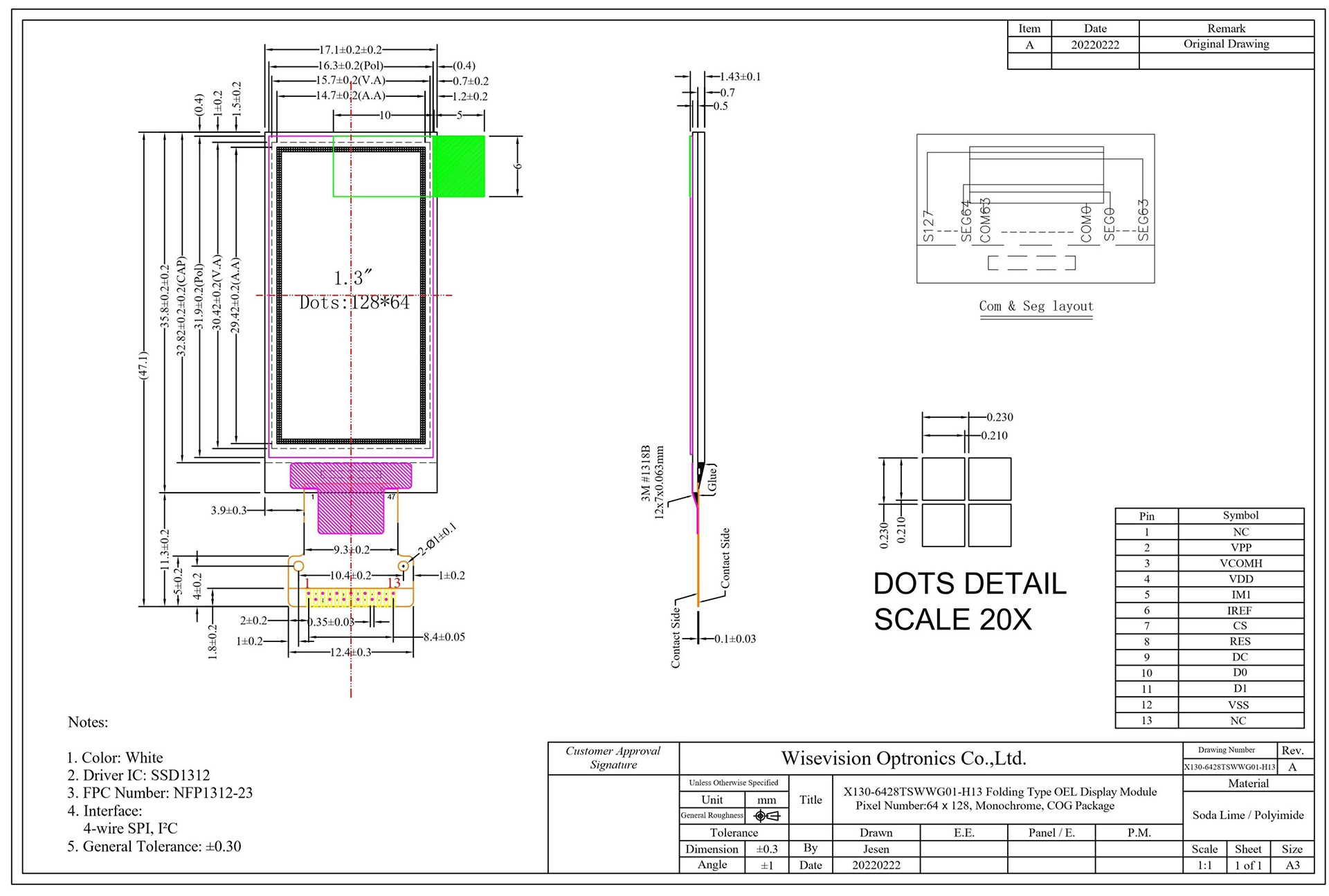

Mechanical Drawing
Product Introduction
Introducing our latest innovation: the 1.30-inch small OLED display module screen. This compact, high-resolution screen is designed to provide a superior visual experience for a variety of applications.
The screen size of this OLED display module is only 1.30 inches. Although the size is small, the quality is not affected at all. With a resolution of 64 x 128 dots, it delivers crisp images and vibrant colors, making it perfect for any project that requires a visually appealing display.
The OLED technology used in this module ensures high contrast, resulting in deep blacks and vivid whites, resulting in stunning color reproduction and enhanced clarity. Whether you are designing a wearable device or a compact information display, this screen will provide a superior viewing experience.
One of the main advantages of OLED displays is their flexibility, and this module is no exception. Its thin and lightweight design makes it highly adaptable to a variety of form factors, allowing for seamless integration into your products. Whether you need a screen for a mobile device, smart watch, or even a medical instrument, this OLED display module will fit the bill perfectly.
In addition to excellent visuals and flexibility, the module offers a wide viewing angle, ensuring that the display remains sharp and clear when viewed from different angles. This feature is especially important for applications with multiple users or when visibility from all angles is critical.
In addition, this OLED display module is durable. With its low power consumption and high durability, it is designed to have a long service life, making it suitable for projects that require continuous operation.
In summary, our 1.30-inch small OLED display module screen combines impressive visual quality, flexibility and durability, making it ideal for a variety of applications. Its compact size and high resolution will enhance any project, while its wide viewing angle ensures an outstanding display. Visibility from different perspectives. Upgrade your product displays with our state-of-the-art OLED technology and captivate your users with stunning visuals.
