1.32 “ Small 128×96 Dots OLED Display Module Screen

Short Description:


  • Model No: N132-2896GSWHG01-H25
  • Size: 1.32 inch
  • Pixels: 128×96 Dots
  • A.A: 26.86×20.14 mm
  • Outline: 32.5×29.2×1.61 mm
  • Brightness: 80 (Min)cd/m²
  • Interface: Parallel/I²C/4-wire SPI
  • Driver IC: SSD1327
  • Product Detail

    Product Tags

    General Description

    Display Type OLED
    Brand name WISEVISION
    Size 1.32 inch
    Pixels 128×96 Dots
    Display Mode Passive Matrix
    Active Area (A.A) 26.86×20.14 mm
    Panel Size 32.5×29.2×1.61 mm
    Color White
    Brightness 80 (Min)cd/m²
    Driving Method External supply
    Interface Parallel/I²C/4-wire SPI
    Duty 1/96
    Pin Number 25
    Driver IC SSD1327
    Voltage 1.65-3.5 V
    Weight TBD
    Operational Temperature -40 ~ +70 °C
    Storage Temperature -40 ~ +85°C

    Product Information

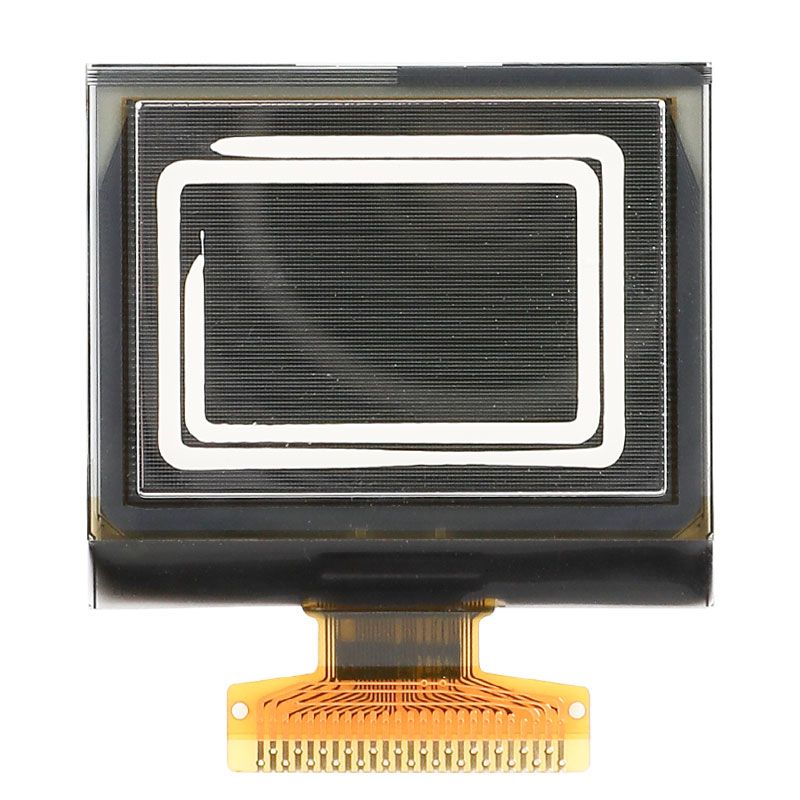

    Introducing the N132-2896GSWHG01-H25, a cutting-edge COG structure OLED display module that combines lightweight design, low power consumption and ultra-thin profile.

    The display measures 1.32 inches and has a pixel resolution of 128×96 dots, providing clear visuals for a variety of applications.

    The Module has a compact size of 32.5×29.2×1.61 mm, making it ideal for equipment with limited space.

    One of the outstanding features of this OLED module is its excellent brightness.

    The display has a minimum brightness of 100 cd/m², ensuring excellent visibility even in bright environments.

    Whether you use it for instrumentation equipment, home applications, financial POS, handheld instruments, smart technology equipment, medical instruments, etc. the module will provide a clear and vivid user interface.

    The N132-2896GSWHG01-H25 is designed to operate in a variety of conditions and operates flawlessly in a temperature range of -40°C to +70°C.

    In addition, its storage temperature range is -40℃ to +85℃, ensuring reliable performance even in extreme environments.

    This makes it suitable for applications that require stability and durability, giving you peace of mind that your equipment will work reliably in any condition.

    132-OLED3

    Below Are The Advantages Of This Low-power OLED Display

    Thin–No need of backlight, self-emissive;

    Wide viewing angle :Free degree;

    High Brightness: 100 cd/m²;

    High contrast ratio(Dark Room): 10000:1;

     High response speed(<2μS);

     Wide Operation Temperature

     Lower power consumption;

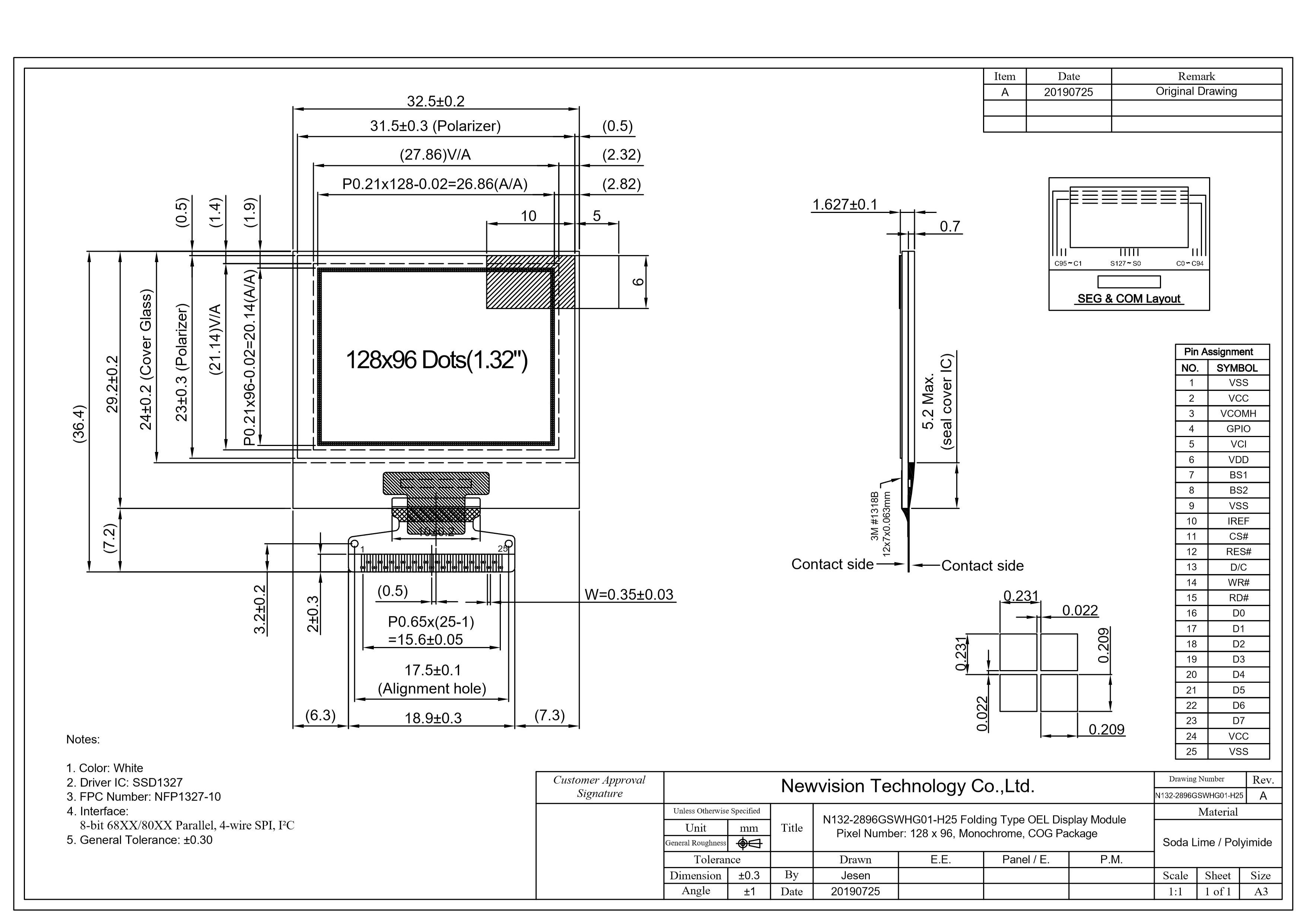

    Mechanical Drawing

    132-OLED1
