1.33 “ Small Size 240 RGB×240 Dots TFT LCD Display Module Screen

Short Description:


  • Model No: N133-2424TBBIG26-H12
  • Size: 1.33 inch
  • Pixels: 240×240 Dots
  • A.A: 23.4×23.4 mm
  • Outline: 26.16×29.22×1.5 mm
  • View Direction: IPS/Free
  • Interface: SPI / MCU
  • Brightness(cd/m²): 350
  • Driver IC: ST7789V3
  • Touch Panel: Without Touch Panel
  • Product Detail

    Product Tags

    General Description

    Display Type IPS-TFT-LCD
    Brand name WISEVISION
    Size 1.33 inch
    Pixels 240×240 Dots
    View Direction IPS/Free
    Active Area (A.A) 23.4×23.4 mm
    Panel Size 26.16×29.22×1.5 mm
    Color arrangement RGB Vertical stripe
    Color 65K
    Brightness 350 (Min)cd/m²
    Interface SPI / MCU
    Pin Number 12
    Driver IC ST7789V3
    Backlight Type 2 CHIP-WHITE LED
    Voltage 2.4~3.3 V
    Weight TBD
    Operational Temperature -20 ~ +70 °C
    Storage Temperature -30 ~ +80°C

    Product Information

    N133-2424TBBIG26-H12 is a TFT-LCD Module with a 1.33-inch diagonal square screen and a resolution of 240x240 pixels.

    This square LCD screen adopts an IPS panel, which has the advantages of higher contrast, a full black background when the display or pixel is off, and wider viewing angles of Left:80 / Right:80 / Up:80 / Down:80 degrees (typical), 800:1 contrast ratio (typical value), 350 cd/m² brightness (typical value), and an anti-glare glass surface.

    The module is built-in with ST7789V3 driver IC that can support via SPI interfaces.

    The power supply voltage of LCM is from 2.4V to 3.3V, the typical value of 2.8V. The display module is suitable for compact devices, wearable devices, home automation products, white products, video systems, medical instruments, etc.

    It can be operating at temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃.

    Below Are The Advantages Of This Low-power OLED Display

    A deep and comprehensive understanding of the end applications;

    Cost and performance advantage analysis of various display types;

     Explanation and cooperation with customers to decide the most suitable display technology;

    Working on the continuous improvements at process technologies, product quality, cost saving, delivery schedule, and so on.

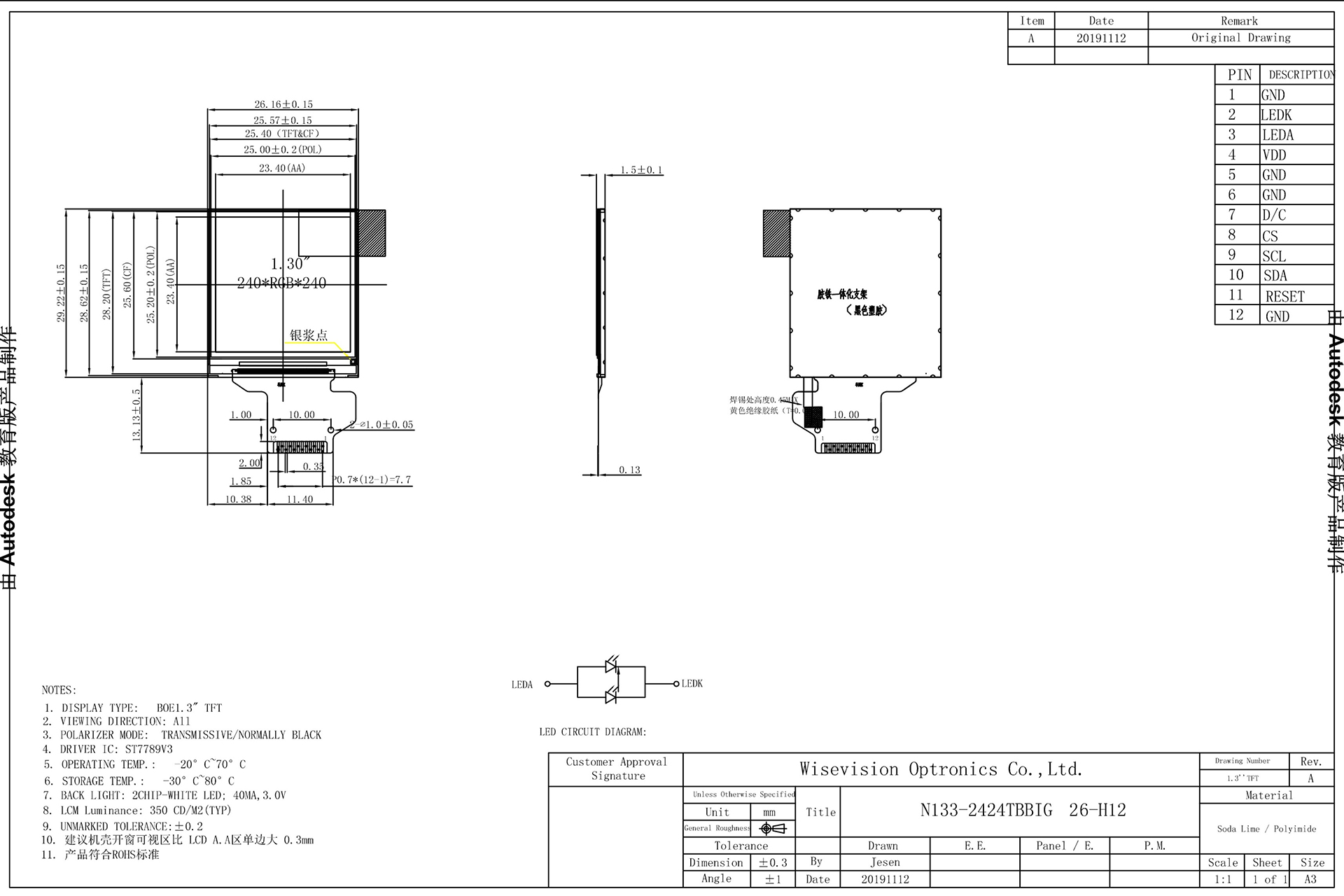

    Mechanical Drawing

    133-TFT (4)
