1.40 “ Small 160×160 Dots OLED Display Module Screen
General Description
| Display Type | OLED |
| Brand name | WISEVISION |
| Size | 1.40 inch |
| Pixels | 160×160 Dots |
| Display Mode | Passive Matrix |
| Active Area (A.A) | 25×24.815 mm |
| Panel Size | 29×31.9×1.427 mm |
| Color | White |
| Brightness | 100 (Min)cd/m² |
| Driving Method | External supply |
| Interface | 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C |
| Duty | 1/160 |
| Pin Number | 30 |
| Driver IC | CH1120 |
| Voltage | 1.65-3.5 V |
| Weight | TBD |
| Operational Temperature | -40 ~ +85 °C |
| Storage Temperature | -40 ~ +85°C |
Product Information

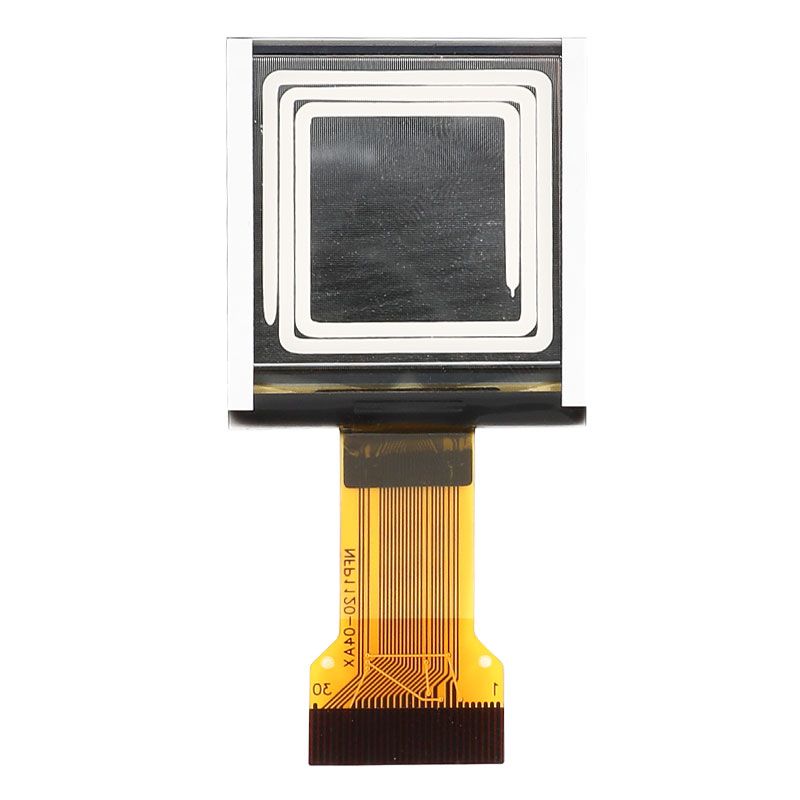

X140-6060KSWAG01-C30 is a 1.40" COG graphic OLED display module; it's made of 160×160 pixels. The OLED module is built-in with CH1120 controller IC; it supports Parallel/I²C/4-wire SPI interfaces.
The OLED COG module is very thin, light weight and low power consumption which is great for handheld instruments, wearable devices, smart medical device, medical instruments, etc.
The OLED display module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.
In summary, the X140-6060KSWAG01-C30 OLED display module is a compact, high-resolution, versatile solution suitable for various industries.
With its lightweight design, low power consumption and excellent temperature stability, it is the perfect choice for applications ranging from instrumentation equipment to medical instruments.
Experience stunning visuals and reliable performance with the OLED module.
Below Are The Advantages Of This Low-power OLED Display
1. Thin–No need of backlight, self-emissive;
2. Wide viewing angle :Free degree;
3. High Brightness: 150 cd/m²;
4. High contrast ratio(Dark Room): 10000:1;
5. High response speed(＜2μS);
6. Wide Operation Temperature;
7. Lower power consumption.

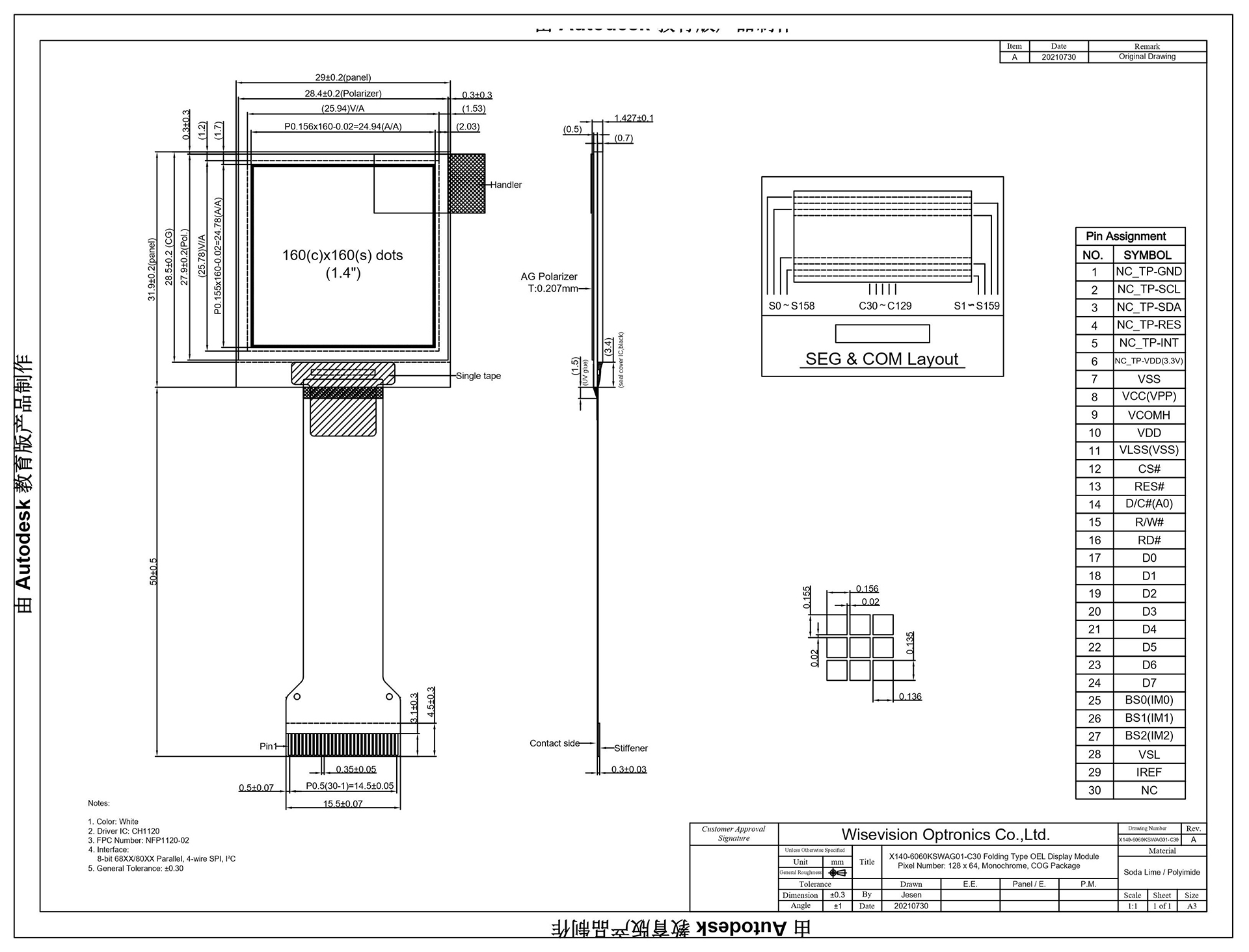

Mechanical Drawing
