1.45 “ Small Size 60RGB×160 Dots TFT LCD Display Module Screen
General Description
| Display Type | IPS-TFT-LCD |
| Brand name | WISEVISION |
| Size | 1.45 inch |
| Pixels | 60 x 160 Dots |
| View Direction | 12：00 |
| Active Area (A.A) | 13.104 x 34.944 mm |
| Panel Size | 15.4×39.69×2.1 mm |
| Color arrangement | RGB Vertical stripe |
| Color | 65 K |
| Brightness | 300 (Min)cd/m² |
| Interface | 4 Line SPI |
| Pin Number | 13 |
| Driver IC | GC9107 |
| Backlight Type | 1 WHITE LED |
| Voltage | 2.5~3.3 V |
| Weight | 1.1g |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |
Product Information
N145-0616KTBIG41-H13 is a 1.45-inch IPS TFT-LCD with a resolution of 60*160 pixels. supports various interfaces such as SPI, providing flexibility for seamless integration into any project. The display's brightness of 300 cd/m² ensures clear, vivid visuals even in bright lighting conditions. The monitor uses the advanced GC9107 driver IC to ensure smooth and efficient performance.
N145-0616KTBIG41-H13 adopts wide angle IPS (In plane Switching) technology. The viewing range is left: 50/right: 50/up: 50/down: 50degrees. a contrast ratio of 800:1, and an aspect ratio of 3:4 (typical value). The supply voltage for analog is from 2.5V to 3.3V (the typical value is 2.8V).The IPS panel has a wide range of viewing angles, bright colors, and high-quality images that are saturated and natural. This TFT-LCD module can work under temperatures from -20℃ to +70℃, and its storage temperatures range from -30℃ to +80℃.

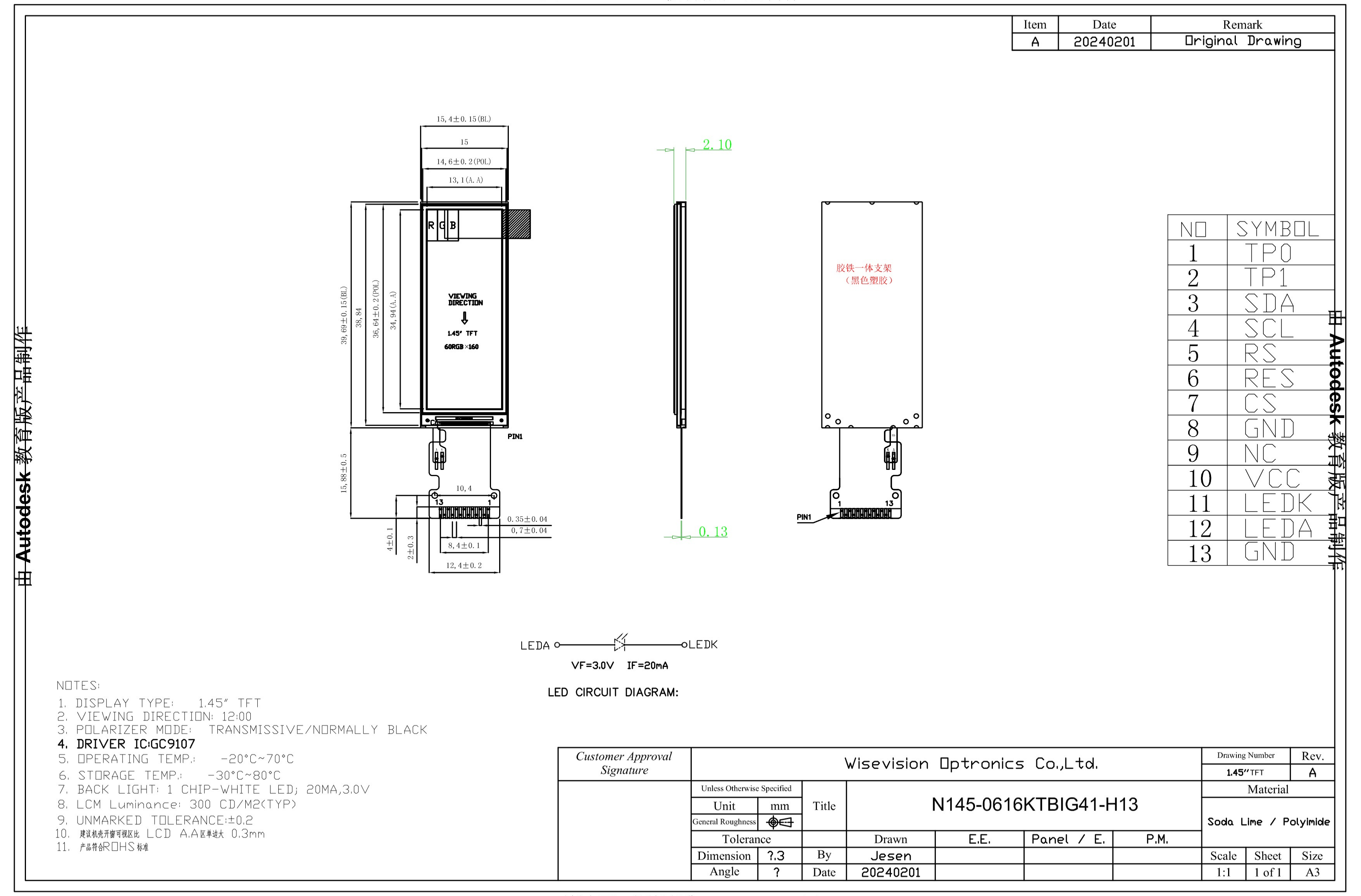

Mechanical Drawing
