1.47 “ Small Size 172 RGB×320 Dots TFT LCD Display Module Screen
General Description
| Display Type | IPS-TFT-LCD |
| Brand name | WISEVISION |
| Size | 1.47 inch |
| Pixels | 172×320 Dots |
| View Direction | IPS/Free |
| Active Area (A.A) | 17.65 x 32.83 mm |
| Panel Size | 19.75 x 36.86 x1.56 mm |
| Color arrangement | RGB Vertical stripe |
| Color | 65 K |
| Brightness | 350 (Min)cd/m² |
| Interface | QSP/MCU |
| Pin Number | 8 |
| Driver IC | GC9307 |
| Backlight Type | 3 WHITE LED |
| Voltage | -0.3~4.6 V |
| Weight | TBD |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |
Product Information
N147-1732THWIG49-C08 is a 1.47-inch IPS TFT-LCD with a resolution of 172*320 pixels. supports various interfaces such as SPI, providing flexibility for seamless integration into any project. The display's brightness of 350 cd/m² ensures clear, vivid visuals even in bright lighting conditions. The monitor uses the advanced GC9307 driver IC to ensure smooth and efficient performance.
N147-1732THWIG49-C08 adopts wide angle IPS (In plane Switching) technology. The viewing range is left: 80/right: 80/up: 80/down: 80 degrees. a contrast ratio of 1500:1, and an aspect ratio of 3:4 (typical value). The supply voltage for analog is from -0.3V to 4.6V (the typical value is 2.8V).The IPS panel has a wide range of viewing angles, bright colors, and high-quality images that are saturated and natural. This TFT-LCD module can work under temperatures from -20℃ to +70℃, and its storage temperatures range from -30℃ to +80℃.

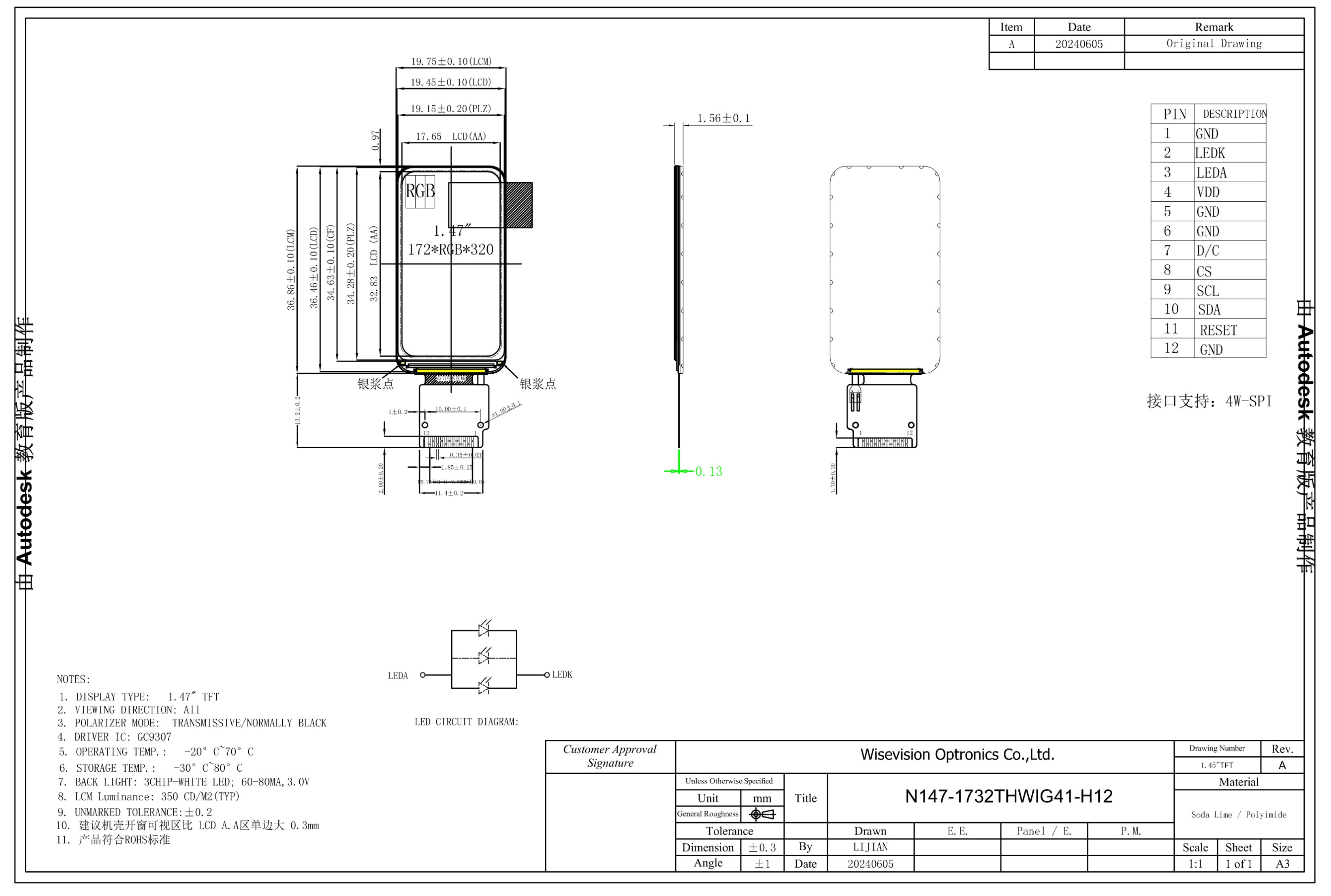

Mechanical Drawing
