1.50 “ Small 128×128 Dots OLED Display Module

Short Description:


  • Model No: X150-2828KSWKG01-H25
  • Size: 1.50 inch
  • Pixels: 128×128 Dots
  • A.A: 26.855×26.855 mm
  • Outline: 33.9×37.3×1.44 mm
  • Brightness: 100 (Min)cd/m²
  • Interface: Parallel/I²C/4-wire SPI
  • Driver IC: SH1107
  • Product Detail

    Product Tags

    General Description

    Display Type OLED
    Brand name WISEVISION
    Size 1.50 inch
    Pixels 128×128 Dots
    Display Mode Passive Matrix
    Active Area(A.A) 26.855×26.855 mm
    Panel Size 33.9×37.3×1.44 mm
    Color White/Yellow
    Brightness 100 (Min)cd/m²
    Driving Method External supply
    Interface Parallel/I²C/4-wire SPI
    Duty 1/128
    Pin Number 25
    Driver IC SH1107
    Voltage 1.65-3.5 V
    Weight TBD
    Operational Temperature -40 ~ +70 °C
    Storage Temperature -40 ~ +85°C

    Product Information

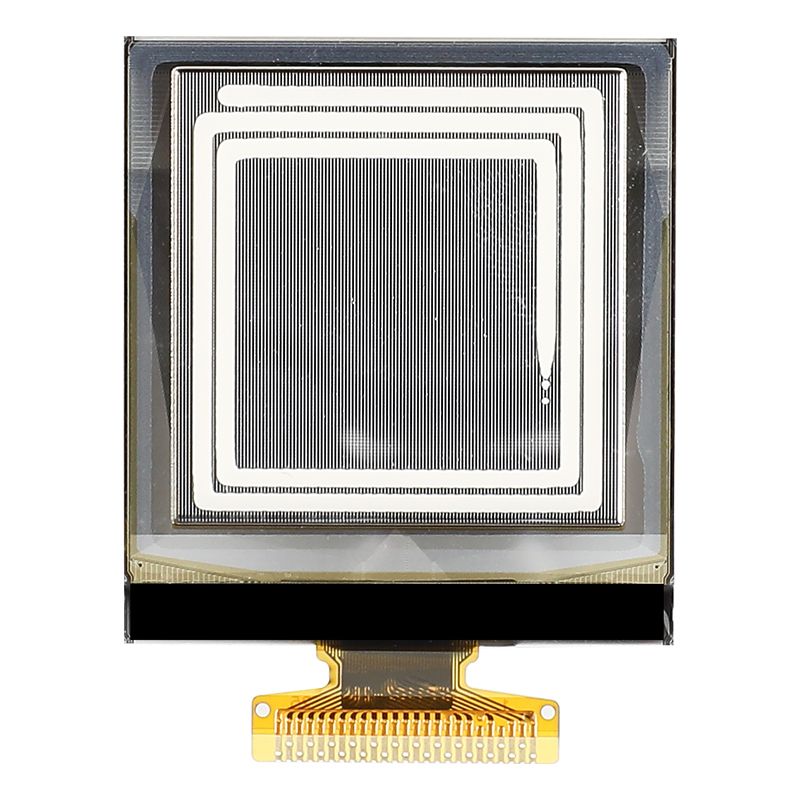

    X150-2828KSWKG01-H25 is a passive matrix OLED display which is made of 128x128 pixels, diagonal size 1.5 inch.

    The WEO128128A has the outline dimension of 33.9×37.3×1.44 mm and AA size 26.855 x 26.855 mm; it is built in with SH1107 controller IC and it supports parallel, I²C and 4-wire SPI serial interface, 3V power supply.

    The OLED Module is a COG structure 128x128 OLED display which is very thin and no need of backlight (self-emissive); it's light weight and low power consumption.

    It is suitable for meter devices, home applications, financial-POS, handheld instruments, intelligent technology devices, medical instruments, etc.

    The OLED module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

    150-OLED3

    Below Are The Advantages Of This Low-power OLED Display

    Thin–No need of backlight, self-emissive;

    Wide viewing angle :Free degree;

    High Brightness: 100 (Min)cd/m²;

    High contrast ratio(Dark Room): 10000:1;

     High response speed(<2μS);

     Wide Operation Temperature;

     Lower power consumption.

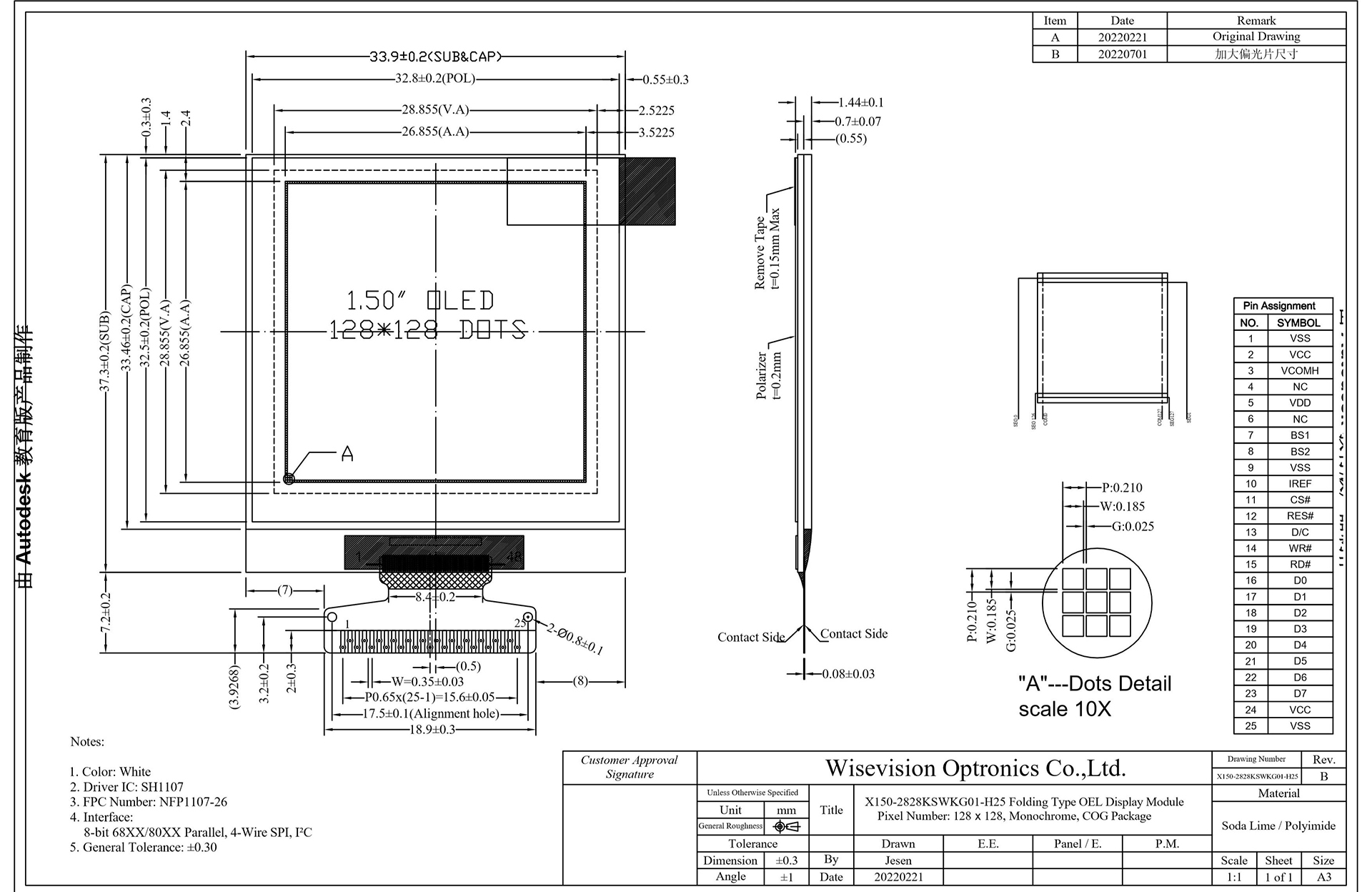

    Mechanical Drawing

    150-OLED1

    Product Introduction

    Introducing our latest innovation: a small 1.50-inch 128x128 OLED display module. This stylish and compact module showcases cutting-edge OLED technology that delivers lifelike visuals with precision and clarity. The module's 1.50-inch display is ideal for small applications, ensuring every detail is presented with vivid and impressive quality.

    Designed to meet the needs of various industries, our 1.50-inch small OLED display module is a versatile solution that can be easily integrated into a variety of devices. From smartwatches to fitness trackers, digital cameras to handheld game consoles, this compact display module is perfect for any project that requires a small yet powerful screen.

    A striking feature of this OLED display module is its impressive 128x128 pixel resolution. High pixel density brings clear and sharp images, allowing users to enjoy an immersive visual experience. Whether you are displaying photos, displaying graphics or rendering text, this module ensures that every detail is accurately depicted on screen without compromising on quality.

    Additionally, the OLED technology used in this display module provides excellent color reproduction and contrast. With deep black levels and vibrant colors, your content comes alive, creating an enjoyable viewing experience for end users. The module's wide viewing angle ensures that your visuals remain vivid and clear even when viewed from different angles.

    In addition to excellent visual performance, the 1.50-inch small OLED display module also offers excellent energy efficiency. The module's low power consumption helps optimize battery life, making it ideal for portable devices that rely on efficient power management.

    Our 1.50-inch small 128x128 OLED display module is a game-changer in small-format display technology with its compact size, high-resolution display and superior visual performance. Experience the future of crisp, vibrant visuals with our innovative modules and take your projects to the next level.
