1.54 “ Small 128×64 Dots OLED Display Module Screen

Short Description:


  • Model No: X154-2864KSWTG01-C24
  • Size: 1.54 inch
  • Pixels: 128×64 Dots
  • A.A: 35.052×17.516 mm
  • Outline: 42.04×27.22×1.4 mm
  • Brightness: 100 (Min)cd/m²
  • Interface: Parallel/I²C/4-wire SPI
  • Driver IC: SSD1309
  • Product Detail

    Product Tags

    General Description

    Display Type OLED
    Brand name WISEVISION
    Size 1.54 inch
    Pixels 128×64 Dots
    Display Mode Passive Matrix
    Active Area (A.A) 35.052×17.516 mm
    Panel Size 42.04×27.22×1.4 mm
    Color White
    Brightness 100 (Min)cd/m²
    Driving Method External supply
    Interface Parallel/I²C/4-wire SPI
    Duty 1/64
    Pin Number 24
    Driver IC SSD1309
    Voltage 1.65-3.3 V
    Weight TBD
    Operational Temperature -40 ~ +70 °C
    Storage Temperature -40 ~ +85°C

    Product Information

    X154-2864KSWTG01-C24 is a SPI OLED Display, it is made of 128x64 pixels, diagonal size 1.54 inch. This graphic display is having the module dimension of 42.04×27.22×1.4 mm and AA size of 35.052 x 17.516 mm; it is built-in with SSD1309 controller IC and it supports parallel, I²C and 4-wire serial SPI interface.

    X154-2864KSWTG01-C24 is a COG structure OLED display this OLED module is lightweight, low power and very thin, it is suitable for home applications, financial-POS, handheld instruments, intelligent technology devices, automotive, medical instruments, etc.

    The OLED module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

    With keywords such as OLED, PMOLED, OLED panel and OLED module, X154-2864KSTWG01-C24 is the first choice for those looking for high-quality display solutions.

    Whether for consumer electronics, wearable devices or industrial applications, this OLED panel delivers superior performance and reliability.

    Its authentic design, coupled with impressive specifications, makes it an outstanding choice on the market.

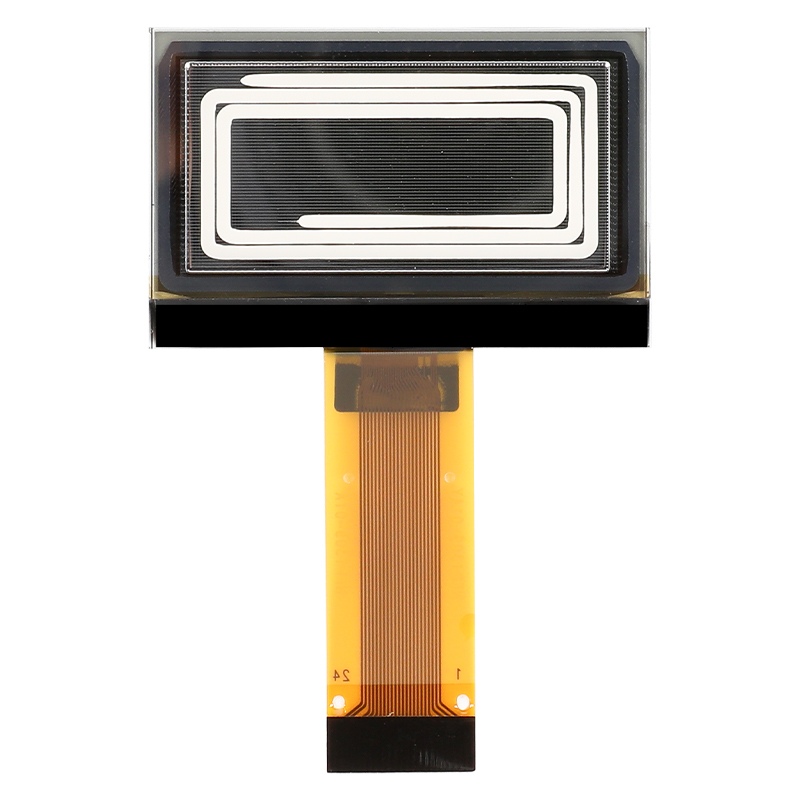

    1.54 “ Small 128×64 Dots OLED Display Module Screen (2)

    Below Are The Advantages Of This Low-power OLED Display

    1. Thin–No need of backlight, self-emissive;

    2. Wide viewing angle :Free degree;

    3. High Brightness: 100 (Min)cd/m²;

    4. High contrast ratio(Dark Room): 2000:1;

    5. High response speed(<2μS);

    6. Wide Operation Temperature;

    7. Lower power consumption.

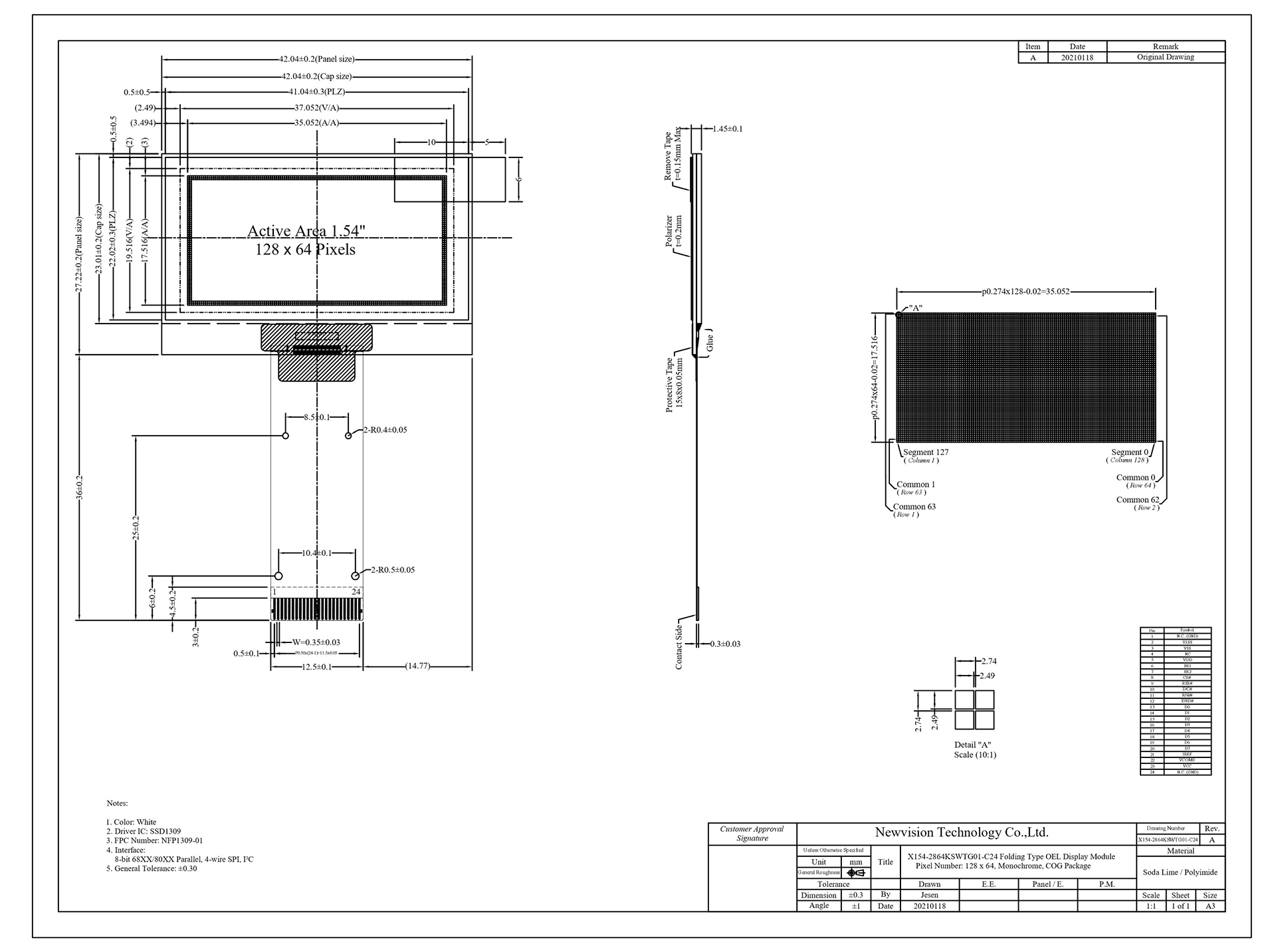

    Mechanical Drawing

    1.54 “ Small 128×64 Dots OLED Display Module Screen (3)
