1.54 “ Small Size 240 RGB×240 Dots TFT LCD Display Module Screen

Short Description:

Model No: N154-2424KBWPG05-H12

Size: 1.54 inch

Pixels: 240×240 Dots

A.A: 27.72×27.72 mm

Outline: 31.52×33.72×1.87 mm

View Direction: IPS/Free

Interface: SPI / MCU

Brightness(cd/m²): 300

Driver IC: ST7789T3

Touch Panel: Without Touch Panel

Send email to us Download as PDF

Product Detail

Product Tags

General Description

Display Type	IPS-TFT-LCD
Brand name	WISEVISION
Size	1.54 inch
Pixels	240×240 Dots
View Direction	IPS/Free
Active Area (A.A)	27.72×27.72 mm
Panel Size	31.52×33.72×1.87 mm
Color arrangement	RGB Vertical stripe
Color	65K
Brightness	300 (Min)cd/m²
Interface	SPI / MCU
Pin Number	12
Driver IC	ST7789T3
Backlight Type	3 CHIP-WHITE LED
Voltage	2.4~3.3 V
Weight	TBD
Operational Temperature	-20 ~ +70 °C
Storage Temperature	-30 ~ +80°C

Product Information

N154-2424KBWPG05-H12 is a TFT-LCD Module with a 1.54-inch diagonal square screen and a resolution of 240x240 pixels.

This square LCD screen adopts an IPS panel, which has the advantages of higher contrast, a full black background when the display or pixel is off, and wider viewing angles of Left:80 / Right:80 / Up:80 / Down:80 degrees (typical), 900:1 contrast ratio (typre glass surface.

The module is built-in with ST7789T3 driver IC that can support via SPI interfaces.

The power supply voltage of LCM is from 2.4V to 3.3V, the typical value of 2.8V.

The display module is suitable for compact devices, wearable devices, home automation products, white products, video systems, medical instruments, etc.

It can be operating at temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃.

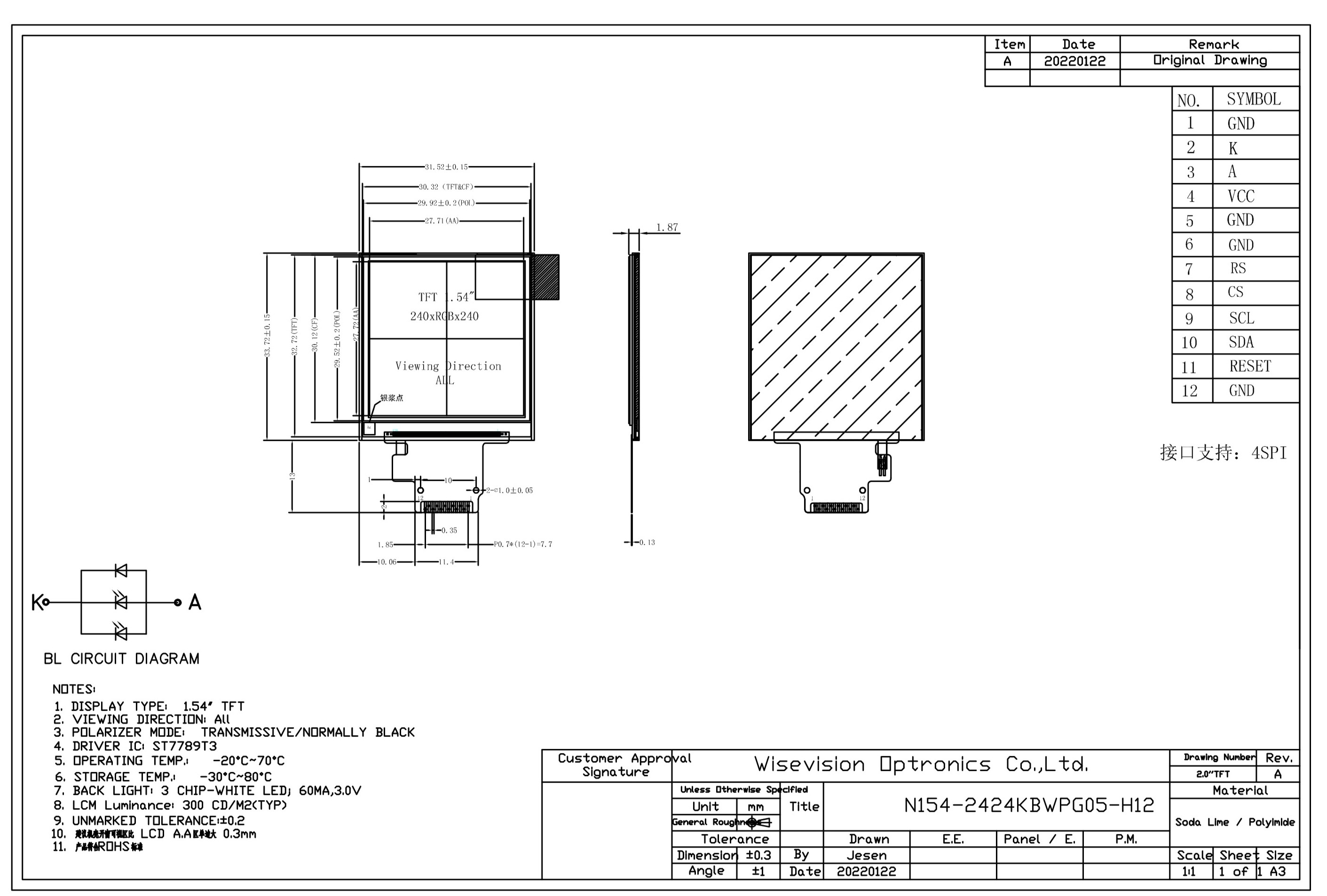

Mechanical Drawing

Product Information

Introducing our breakthrough product, the 1.54-inch small size 240 RGB×240 dots TFT LCD display module screen. This compact and stylish display module is designed to deliver superior visual output with its high resolution of 240 RGB x 240 dots.

The 1.54" LCD display module provides a vivid, sharp color display that is ideal for a variety of applications. Whether you are designing a smart watch, a portable medical device, or a handheld gaming console, this display module will enhance the user experience by delivering clear and vivid visuals.

This LCD display module is small in size and versatile enough to be easily integrated into any electronic device. The module is equipped with a touch screen, providing an intuitive and user-friendly interface for easy navigation. Its compact design integrates seamlessly into your products without sacrificing valuable space.

The 1.54" TFT LCD display module offers exceptional durability and reliability, ensuring your product has a long service life. Its rugged construction prevents potential damage and guarantees consistency even in challenging environments performance.

Thanks to its high-quality display technology, the LCD module offers wide viewing angles, ensuring clear visibility from different directions. This feature enables users to view content comfortably and is ideal for electronic devices that require multiple viewing angles.

In addition to its impressive display capabilities, the 1.54-inch TFT LCD module is highly energy-efficient with extremely low power consumption for extended battery life. This makes it an excellent choice for battery-powered devices that need to run for long periods of time without frequent recharging.

Overall, the 1.54-inch small-size 240 RGB × 240 dot TFT LCD display module screen is a cutting-edge display solution that delivers superior visual output, durability, and energy efficiency. Its compact size and versatile features make it an excellent choice for a wide range of applications. A wide range of electronic applications, upgrade your products with our advanced LCD modules to provide your customers with a superior visual experience.
