1.71 “ Small 128×32 Dots OLED Display Module Screen

Short Description:


  • Model No: X171-2832ASWWG03-C18
  • Size: 1.71 inch
  • Pixels: 128×32 Dots
  • A.A: 42.218×10.538 mm
  • Outline: 50.5×15.75×2.0 mm
  • Brightness: 80 (Min)cd/m²
  • Interface: Parallel/I²C/4-wire SPI
  • Driver IC: SSD1312
  • Product Detail

    Product Tags

    General Description

    Display Type OLED
    Brand name WISEVISION
    Size 1.71 inch
    Pixels 128×32 Dots
    Display Mode Passive Matrix
    Active Area (A.A) 42.218×10.538 mm
    Panel Size 50.5×15.75×2.0 mm
    Color Monochrome (White)
    Brightness 80 (Min)cd/m²
    Driving Method External supply
    Interface Parallel/I²C/4-wire SPI
    Duty 1/64
    Pin Number 18
    Driver IC SSD1312
    Voltage 1.65-3.5 V
    Weight TBD
    Operational Temperature -40 ~ +70 °C
    Storage Temperature -40 ~ +85°C

    Product Information

    X171-2832ASWWG03-C18 is a COG OLED display module. Featuring an AA size of 42.218×10.538mm and an ultra-slim outline of 50.5×15.75×2.0mm, The OLED Display Module offers a compact and sleek design that seamlessly integrates into any electronic device.

    The module's outstanding brightness of 100 cd/m² ensures vivid and clear visuals even in well-lit environments.

    Its versatile interface options include parallel, I²C, and 4-wire SPI, providing flexible integration possibilities to meet diverse application requirements.

    This OLED display is built-in with SSD1315 IC SSD1312 driver IC, The OLED Display Module guarantees exceptional performance and reliability.

    The driver IC ensures fast and accurate data transmission, enabling seamless user interactions.

    Whether it is for wearable sports devices, healthcare equipment, or intelligent manufacturing systems, our OLED Display Module is the perfect choice to enhance user experience and showcase the true potential of your product.

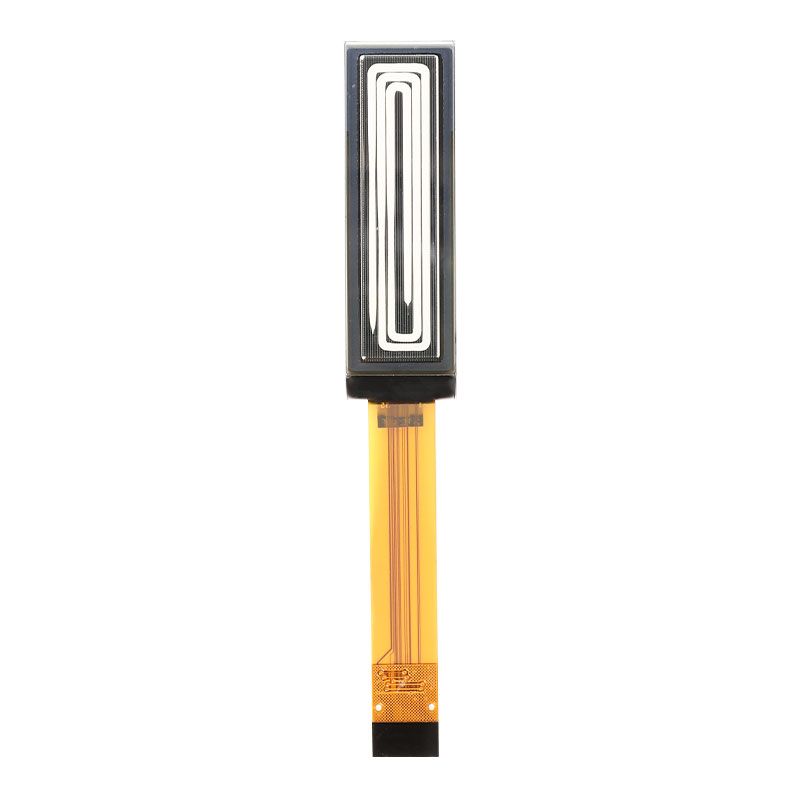

    171-OLED3

    Below Are The Advantages Of This Low-power OLED Display

    1. Thin–No need of backlight, self-emissive;

    2. Wide viewing angle :Free degree;

    3. High Brightness: 100 cd/m²;

    4. High contrast ratio(Dark Room): 2000:1;

    5. High response speed(<2μS);

    6. Wide Operation Temperature;

    7. Lower power consumption.

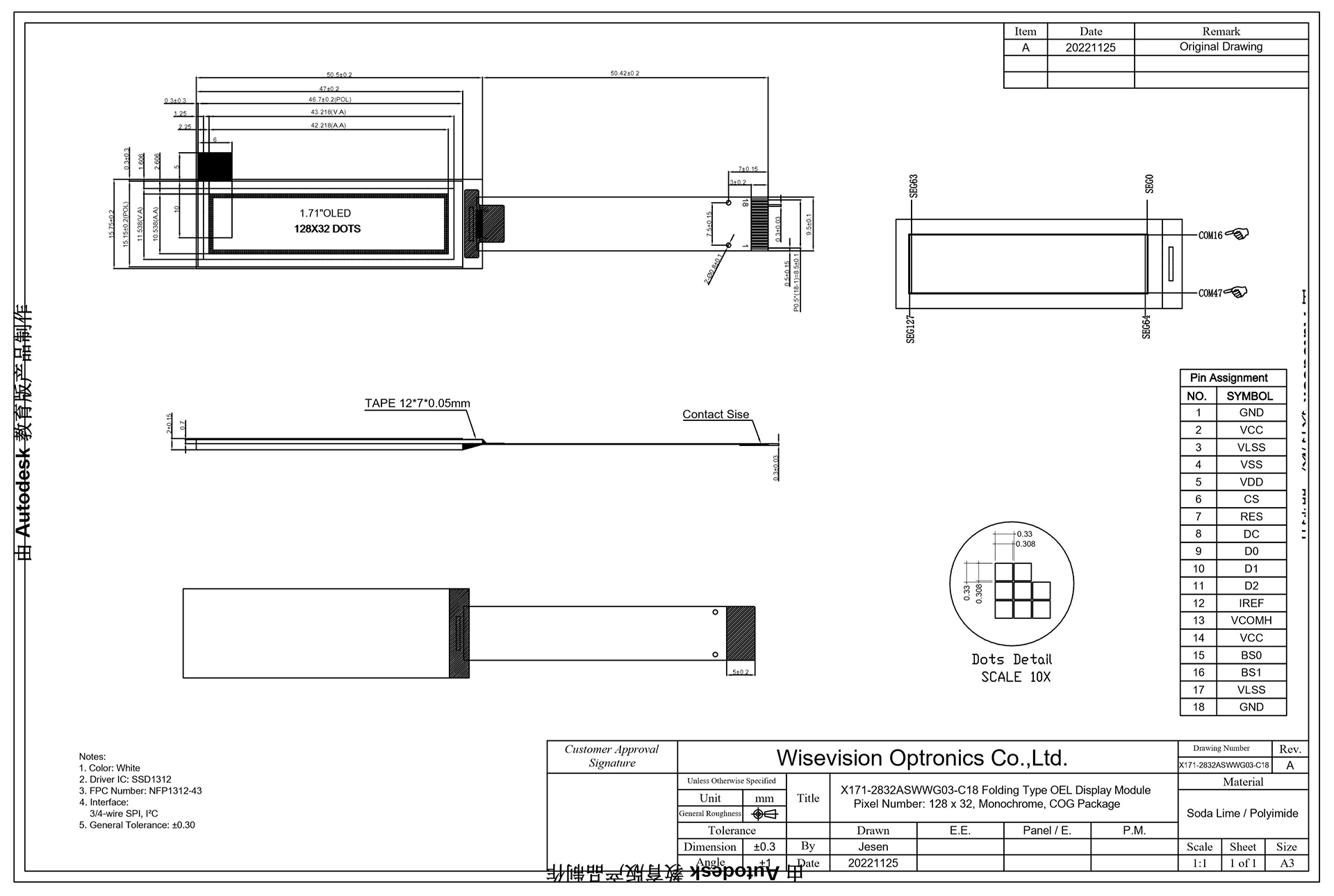

    Mechanical Drawing

    171-OLED1
