1.77 “ Small Size 128 RGB×160 Dots TFT LCD Display Module Screen
General Description
| Display Type | IPS-TFT-LCD |
| Brand name | WISEVISION |
| Size | 1.77 inch |
| Pixels | 128×160 Dots |
| View Direction | 12 O'CLOCK |
| Active Area (A.A) | 28.03×35.04 mm |
| Panel Size | 34×45.83×2.2 mm |
| Color arrangement | RGB Vertical stripe |
| Color | 65K |
| Brightness | 350 (Min)cd/m² |
| Interface | SPI / MCU |
| Pin Number | 14 |
| Driver IC | ST7735 |
| Backlight Type | 2 CHIP-WHITE LED |
| Voltage | 2.5~3.3 V |
| Weight | TBD |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |
Product Information
N177-1216TCWPG01-H14 is a small-sized 1.77-inch IPS wide-angle TFT-LCD display module.
This small-sized TFT-LCD panel has a resolution of 170×320 pixels, The display module is built-in with ST7735 controller IC, supports SPI and RGB interface, a supply voltage (VDD) range of 2.5V~3.3V, module brightness of 350 cd/m², and contrast of 300.
The N177-1216TCWPG01-H14 features a 12 o'clock viewing angle that ensures optimal viewing angles, allowing you to enjoy crystal-clear images no matter where you are.
SPI/MCU interface options give you the flexibility to connect the display seamlessly to your desired device.
Additionally, the brightness of 350 cd/m² ensures your visuals are vibrant and vivid, enhancing your overall viewing experience. It is very suitable for applications such as wearable devices, handheld devices, security monitoring system.
The operating temperature of this module is -20 ℃ to 70 ℃, and the storage temperature is -30 ℃ to 80 ℃.

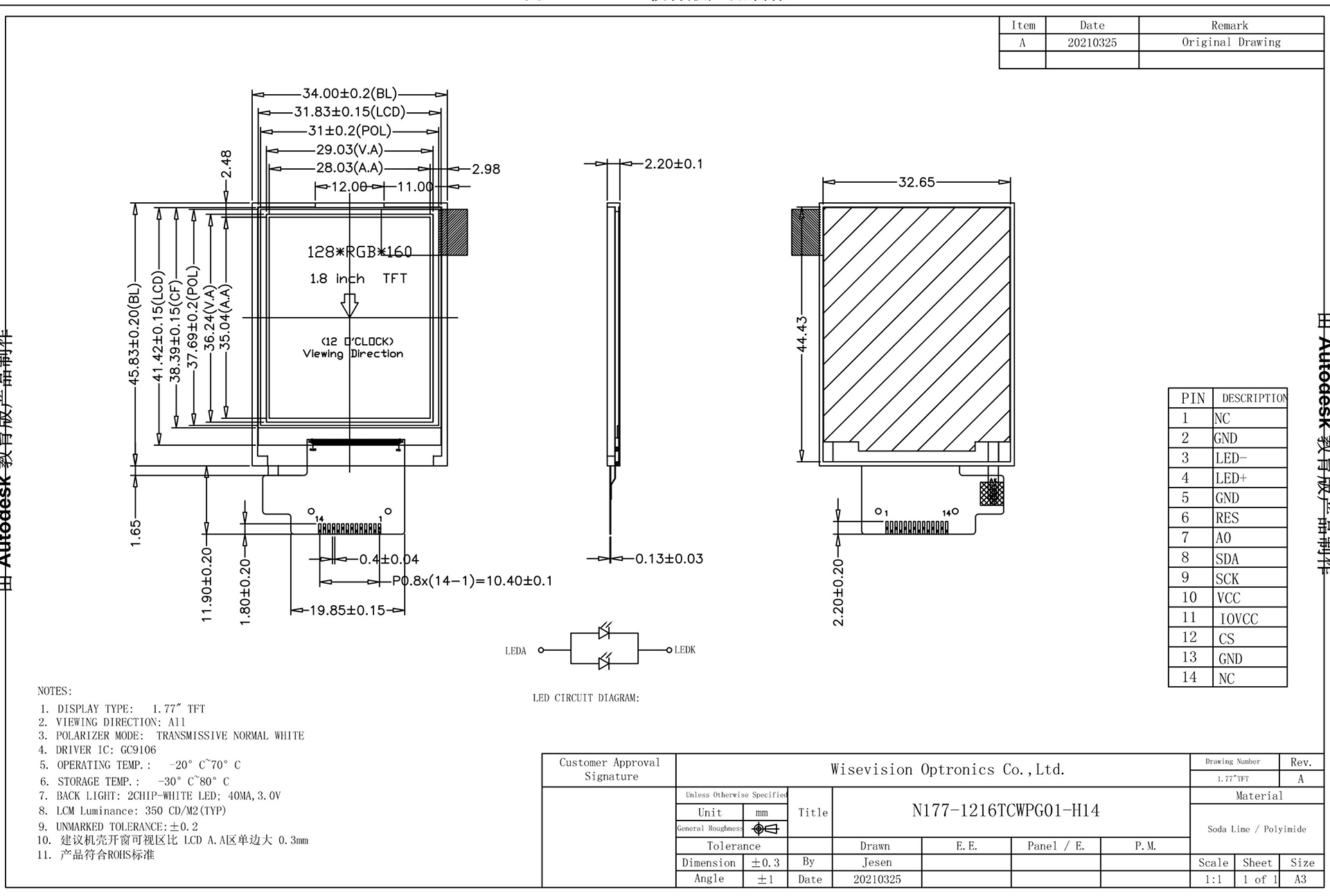

Mechanical Drawing
Product Introduction
Introducing our latest innovative product, a 1.77-inch small size 128 RGB×160 dots TFT LCD display module screen. This compact yet powerful screen is designed to deliver an immersive visual experience for a variety of applications, from portable electronics to smart devices.
This TFT LCD display module has a resolution of 128 RGB × 160 points, which provides clear and vivid images, allowing users to enjoy ultra-clear and stunning visual effects. The small size enhances portability, making it ideal for handheld devices such as smartphones, game consoles and MP3 players.
One of the outstanding features of this display module is its rich color reproduction capabilities. It has 128 RGB×160 points, providing a wide color gamut for more accurate and vivid colors. Whether you're viewing photos, watching videos, or playing games, this TFT LCD display module will truly bring your content to life.
Despite its small size, this display module offers extraordinary versatility. Its high refresh rate ensures smooth transitions, minimizing motion blur and providing a seamless viewing experience. The wide viewing angle allows users to see the screen clearly from all angles, making it suitable for sharing content with others without compromising quality.
Additionally, this TFT LCD display module is designed for durability and reliability. The display is scratch-resistant and has an anti-glare coating for outdoor use. Its energy-saving design ensures extended battery life, making it ideal for portable devices.
Furthermore, thanks to its user-friendly interface, the display module is easily integrated into existing systems. It comes with a simple plug-and-play system for quick, hassle-free installation. Compatible with various operating systems, this screen module integrates seamlessly with your device to ensure a smooth user experience.
Overall, the 1.77-inch small size 128 RGB × 160 dots TFT LCD display module screen is a powerful and versatile solution for a variety of applications. Its compact size, vibrant colors, and durability make it a top choice for portable electronics, gaming devices, and more. Upgrade your visual experience with this cutting-edge display module and enjoy a world of vibrant colors and stunning visuals.
