1.90 “ Small Size 170 RGB×320 Dots TFT LCD Display Module Screen
General Description
| Display Type | IPS-TFT-LCD |
| Brand name | WISEVISION |
| Size | 1.90 inch |
| Pixels | 170×320 Dots |
| View Direction | IPS/Free |
| Active Area (A.A) | 22.7×42.72 mm |
| Panel Size | 25.8×49.72×1.43 mm |
| Color arrangement | RGB Vertical stripe |
| Color | 65K |
| Brightness | 350(Min)cd/m² |
| Interface | SPI / MCU/RGB |
| Pin Number | 30 |
| Driver IC | ST7789 |
| Backlight Type | 4 CHIP-WHITE LED |
| Voltage | 2.4~3.3 V |
| Weight | TBD |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |
Product Information
N190-1732TBWPG01-C30 is a small-sized 1.90-inch IPS wide-angle TFT-LCD display module.
This small-sized TFT-LCD panel has a resolution of 170×320 pixels.
The display module is built-in with ST7789 controller IC, supports various interfaces such as SPI, MCU and RGB, a supply voltage (VDD) range of 2.4V~3.3V, module brightness of 350 cd/m² (typical value), and contrast of 800(typical value).
This 1.90 inches TFT- LCD display module is portrait mode, and the panel adopts wide angle IPS (In plane Switching) technology.
The viewing range is left: 80/right: 80/up: 80/down: 80 degrees. The panel has a wide range of perspectives, bright colors, and high-quality images with saturated nature.
It is very suitable for applications such as wearable devices, handheld devices, security monitoring system.
The operating temperature of this module is -20 ℃ to 70 ℃, and the storage temperature is -30 ℃ to 80 ℃.

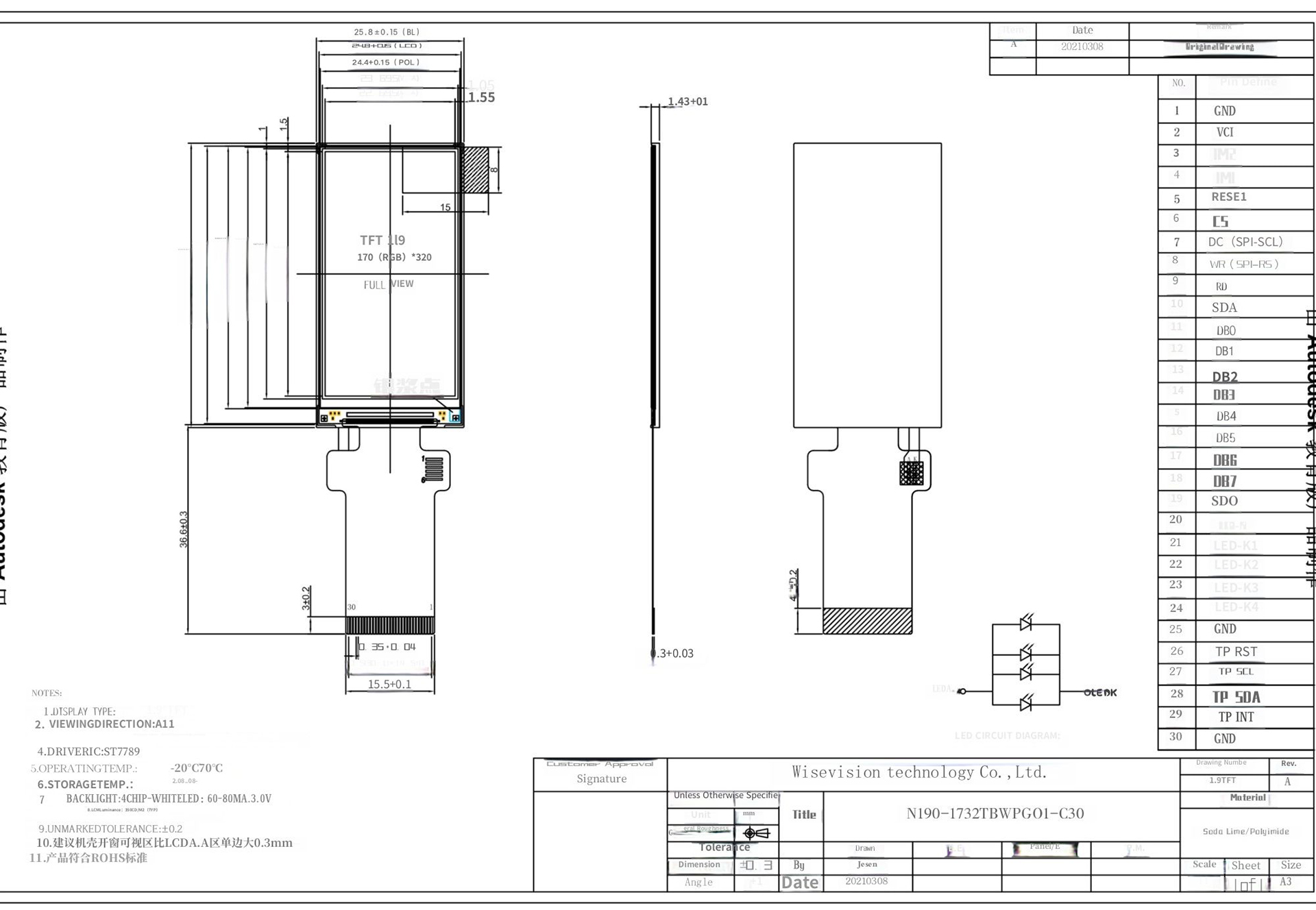

Mechanical Drawing
Product Introduction
Launched a small-size 170 RGB × 320 dot TFT LCD display module screen - a cutting-edge innovation in the field of display technology.
This small-sized display module has a sleek and compact design, making it suitable for a variety of applications where space is limited. Measuring just 1.90 inches, this TFT LCD display is designed to blend seamlessly into any device without compromising visual quality.
Featuring an astonishing resolution of 170 RGB × 320 dots, the display module produces clear and vivid images, ensuring an immersive viewing experience for users. Whether you are designing a smartwatch, a portable gaming console, or any other handheld device, this display will enhance the visual appeal and usability of your product.
Equipped with TFT (Thin Film Transistor) technology, this display module offers superior color accuracy and wide viewing angles, allowing users to enjoy crystal-clear visuals from almost any angle. The vivid and bright colors displayed on the screen are sure to attract the user's attention, making this display module ideal for advertising or promotional purposes.
With its easy-to-use interface and user-friendly controls, integrating this display module into your device is a breeze. Its compact size and lightweight design also make it a portable solution for mobile applications.
Additionally, this TFT LCD display module offers excellent durability and reliability, ensuring your device has a long service life. Its rugged construction ensures resistance to shock and vibration, making it suitable for use in harsh environments.
Overall, the small size 170 RGB × 320 dot TFT LCD display module screen is a versatile high-performance display solution that combines excellent visual effects, compact design and durability. Improve your product's user experience by integrating this display module and unlock new possibilities for your device functionality.
