1.92 “ Small 128×160 Dots OLED Display Module Screen
General Description
| Display Type | OLED |
| Brand name | WISEVISION |
| Size | 1.92 inch |
| Pixels | 128×160 Dots |
| Display Mode | Passive Matrix |
| Active Area (A.A) | 28.908×39.34 mm |
| Panel Size | 34.5×48.8×1.4 mm |
| Color | White |
| Brightness | 80 cd/m² |
| Driving Method | External supply |
| Interface | Parallel/I²C/4-wire SPI |
| Duty | 1/128 |
| Pin Number | 31 |
| Driver IC | CH1127 |
| Voltage | 1.65-3.3 V |
| Weight | TBD |
| Operational Temperature | -40 ~ +70 °C |
| Storage Temperature | -40 ~ +85°C |
Product Information

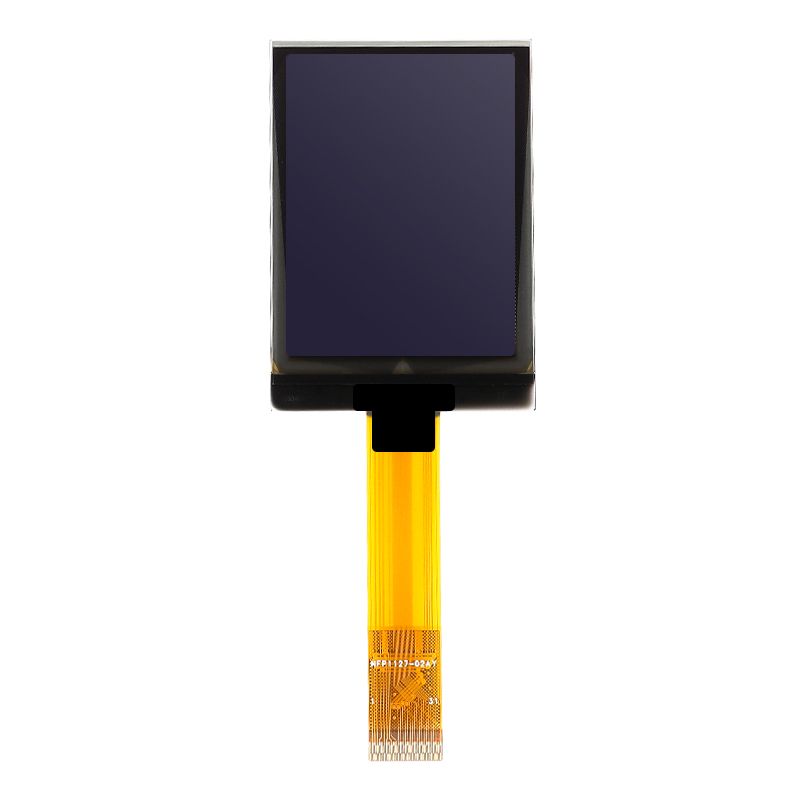

X192-2860KSWDG02-C31 is a 160x128 COG graphic OLED display module with a diagonal size of 1.92 inches.
This OLED display module has the outline dimension of 34.5×48.8×1.4 mm and AA size 28.908×39.34 mm; it is built-in with CH1127 controller IC, supporting parallel interfaces, I²C, and 4-wire SPI serial interfaces.
The supply voltage for logic is 3V, the supply voltage for display is 12V.
This OLED module is suitable for medical applications, smart home applications, intelligent building systems.
handheld device, smart wearable, etc. It can operate at temperature range from -40℃ to +70℃; its storage temperature range is from -40℃ to +85℃.
Below Are The Advantages Of This Low-power OLED Display
1. Thin–No need of backlight, self-emissive;
2. Wide viewing angle :Free degree;
3. High Brightness: 270 cd/m²;
4. High contrast ratio(Dark Room): 2000:1;
5. High response speed(＜2μS);
6. Wide Operation Temperature;
7. Lower power consumption.
Mechanical Drawing
Product Information
Introducing our latest innovation, a 1.92-inch small 128x160 dot OLED display module screen. This advanced display module's compact size and high resolution make it a perfect choice for a variety of electronic devices.
Measuring just 1.92 inches, the OLED display module is designed to be seamlessly integrated into portable devices, smart watches, fitness trackers and other compact electronic devices. Despite its large size, it delivers crisp visuals with a high resolution of 128x160 dots. Ensure users can enjoy vibrant colors, clear images, and smooth graphics on their devices.
The display module is equipped with OLED (organic light-emitting diode) technology, which offers several advantages over traditional LCD screens. OLED displays offer better contrast, wider viewing angles, and faster response times. This means users can expect excellent visual performance in both bright and dim environments and at a variety of viewing angles.
In addition, OLED technology enables thinner and lighter display modules, making it ideal for portable devices. Its energy-efficient design ensures that it consumes less energy than an LCD screen, helping to extend the battery life of electronic devices. This feature is especially beneficial for devices that are intended to be used for extended periods of time without frequent charging.
In addition to its impressive visual capabilities, the 1.92-inch small 128x160 dot OLED display module screen is also equipped with user-friendly features. It supports multiple interface options, including SPI (Serial Peripheral Interface) and I2C (Inter Integrated Circuit), providing flexibility to connect and integrate the module into different electronic devices.
To provide ease of use, the display module is designed with a simple interface that makes it easy to navigate and interact with the device. Its compact size ensures it can blend seamlessly into a variety of designs without compromising functionality or overall aesthetics.
In summary, the 1.92-inch small 128x160 dot OLED display module screen is a perfect choice for electronic devices that require a small high-resolution display. Its compact size, impressive visual capabilities and user-friendly features make it a best-in-class solution for designers and manufacturers to experience the splendor of OLED technology with this cutting-edge display module.
