10.1 “ Middle Size 1024×600 Dots TFT LCD Display Module Screen

Short Description:


  • Model No: B101N535C-27A
  • Size: 10.1 inch
  • Pixels: 1024×600 Dots
  • A.A: 222.72×125.28 mm
  • Outline: 235 ×143 ×3.5 mm
  • View Direction: IPS/Free
  • Interface: Parallel 8-bit RGB
  • Brightness(cd/m²): 250
  • Driver IC: TBD
  • Product Detail

    Product Tags

    General Description

    Display Type IPS-TFT-LCD
    Brand name WISEVISION
    Size 10.1 inch
    Pixels 1024×600 Dots
    View Direction IPS/Free
    Active Area (A.A) 222.72×125.28 mm
    Panel Size 235 ×143 ×3.5 mm
    Color arrangement RGB Vertical stripe
    Color 16.7 M
    Brightness 250 (Min)cd/m²
    Interface Parallel 8-bit RGB
    Pin Number 15
    Driver IC TBD
    Backlight Type WHITE LED
    Voltage 3.0~3.6 V
    Weight TBD
    Operational Temperature -20 ~ +70 °C
    Storage Temperature -30 ~ +80°C

    Product Information

    B101N535C-27A is a 10.1” inch TFT-LCD display module; made of resolution 1024×600 pixels. This display panel has module dimension of 235 ×143 ×3.5 mm and AA size of 222.72×125.28 mm. The display mode is normally white, and the interface is RGB. The display has a warranty of 12 months and is available as a factory supply. The display can be used in various applications such as car navigation systems, portable media players, industrial control systems, and so on. This TFT module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

    The B101N535C-27A 10.1" TFT LCD display supports CTP (Capacitive Touch Panel) technology, which allows for a more intuitive and responsive user interface compared to resistive touch screens.The capacitive touch screen technology is based on the principle of detecting the changes in capacitance on the surface of the touch panel.

    The touch panel is composed of a transparent conductive layer on top of the display panel and a controller IC that senses the changes in the capacitance caused by the human touch. It provides a more accurate and precise input response and has a longer lifespan than resistive touch screens.

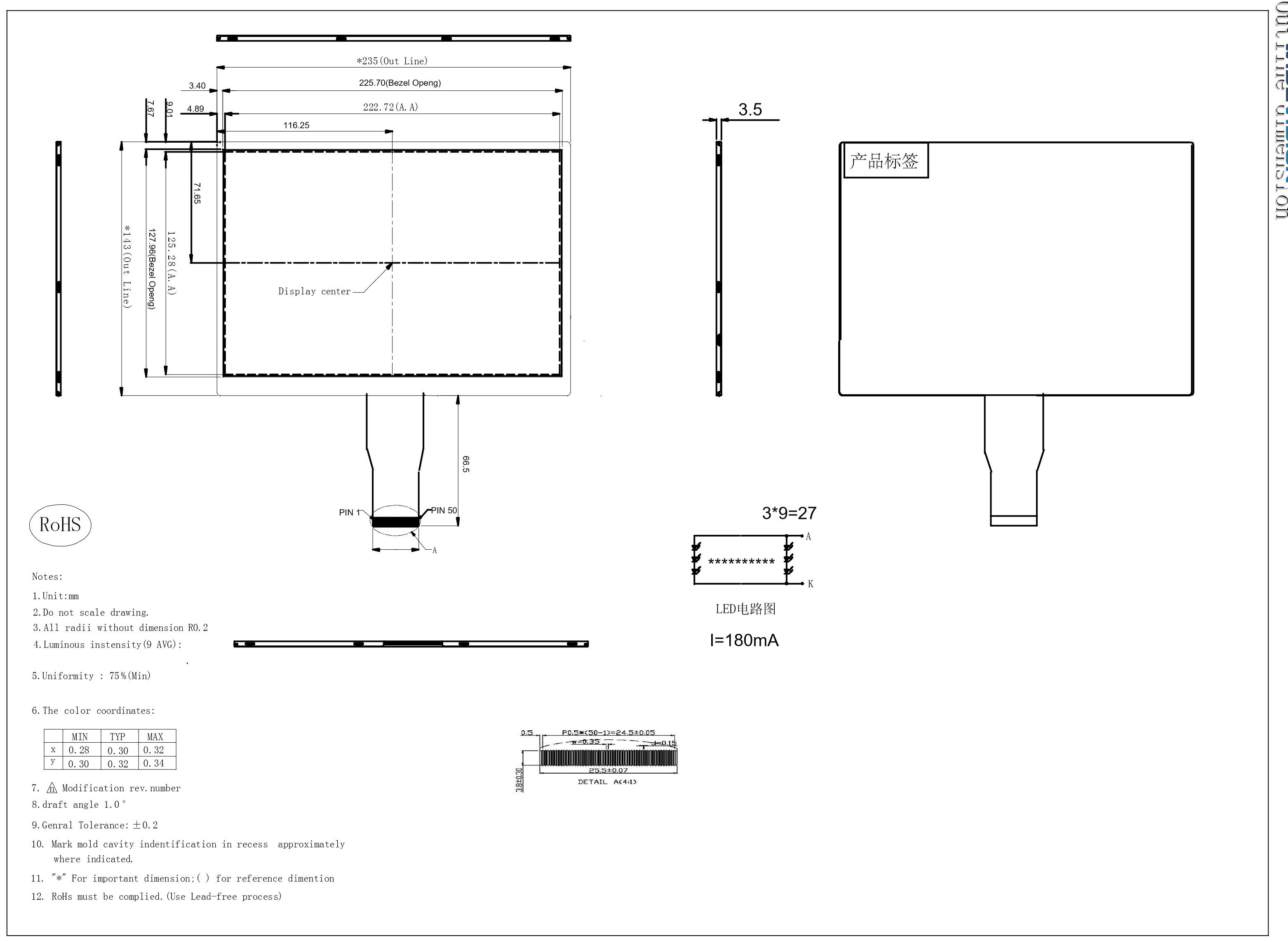

    Mechanical Drawing

    10.1
