2.23 “ Small 128×32 Dots OLED Display Module Screen

Short Description:


  • Model No: X223-2832ASWCG02-C24
  • Size: 2.23 inch
  • Pixels: 128×32 Dots
  • A.A: 55.02×13.1 mm
  • Outline: 62×24×2.0 mm
  • Brightness: 120 (Min)cd/m²
  • Interface: Parallel/I²C/4-wire SPI
  • Driver IC: SSD1305
  • Product Detail

    Product Tags

    General Description

    Display Type OLED
    Brand name WISEVISION
    Size 2.23 inch
    Pixels 128×32 Dots
    Display Mode Passive Matrix
    Active Area (A.A) 55.02×13.1 mm
    Panel Size 62×24×2.0 mm
    Color White/Blue/Yellow
    Brightness 120 (Min)cd/m²
    Driving Method External supply
    Interface Parallel/I²C/4-wire SPI
    Duty 1/32
    Pin Number 24
    Driver IC SSD1305
    Voltage 1.65-3.3 V
    Weight TBD
    Operational Temperature -40 ~ +85 °C
    Storage Temperature -40 ~ +85°C

    Product Information

    X223-2832ASWCG02-C24 is a 2.23” COG Graphic OLED display, made of resolution of 128x32 pixels. This OLED display module has the outline dimension of 62×24×2.0 mm and AA size 55.02×13.1 mm;

    This module is built-in with SSD1305 controller IC; it can be supported parallel, 4-line SPI, and I²C interfaces; the supply voltage of logic is 3.0V (typical value), 1/32 driving duty.

    X223-2832ASWCG02-C24 is a COG structure OLED display, this OLED module is suitable for smart home applications, financial-POS, handheld instruments, intelligent technology devices, automotive, smart wearable, medical instruments, etc. The OLED module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃

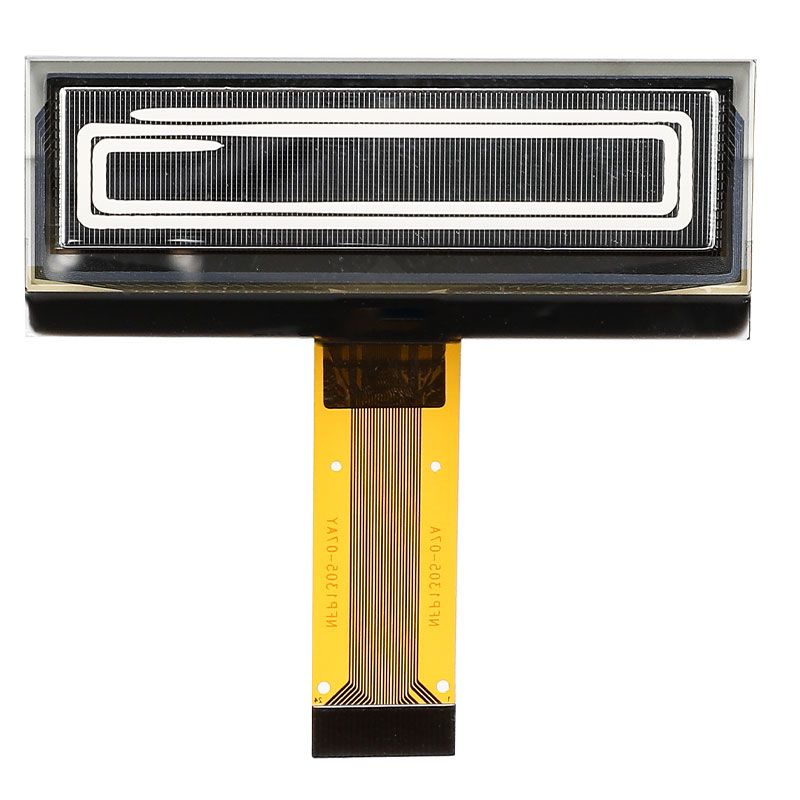

    223-OLED3

    Below Are The Advantages Of This Low-power OLED Display

    1. Thin–No need of backlight, self-emissive;

    2. Wide viewing angle :Free degree;

    3. High Brightness: 140 cd/m²;

    4. High contrast ratio(Dark Room): 2000:1;

    5. High response speed(<2μS);

    6. Wide Operation Temperature;

    7. Lower power consumption.

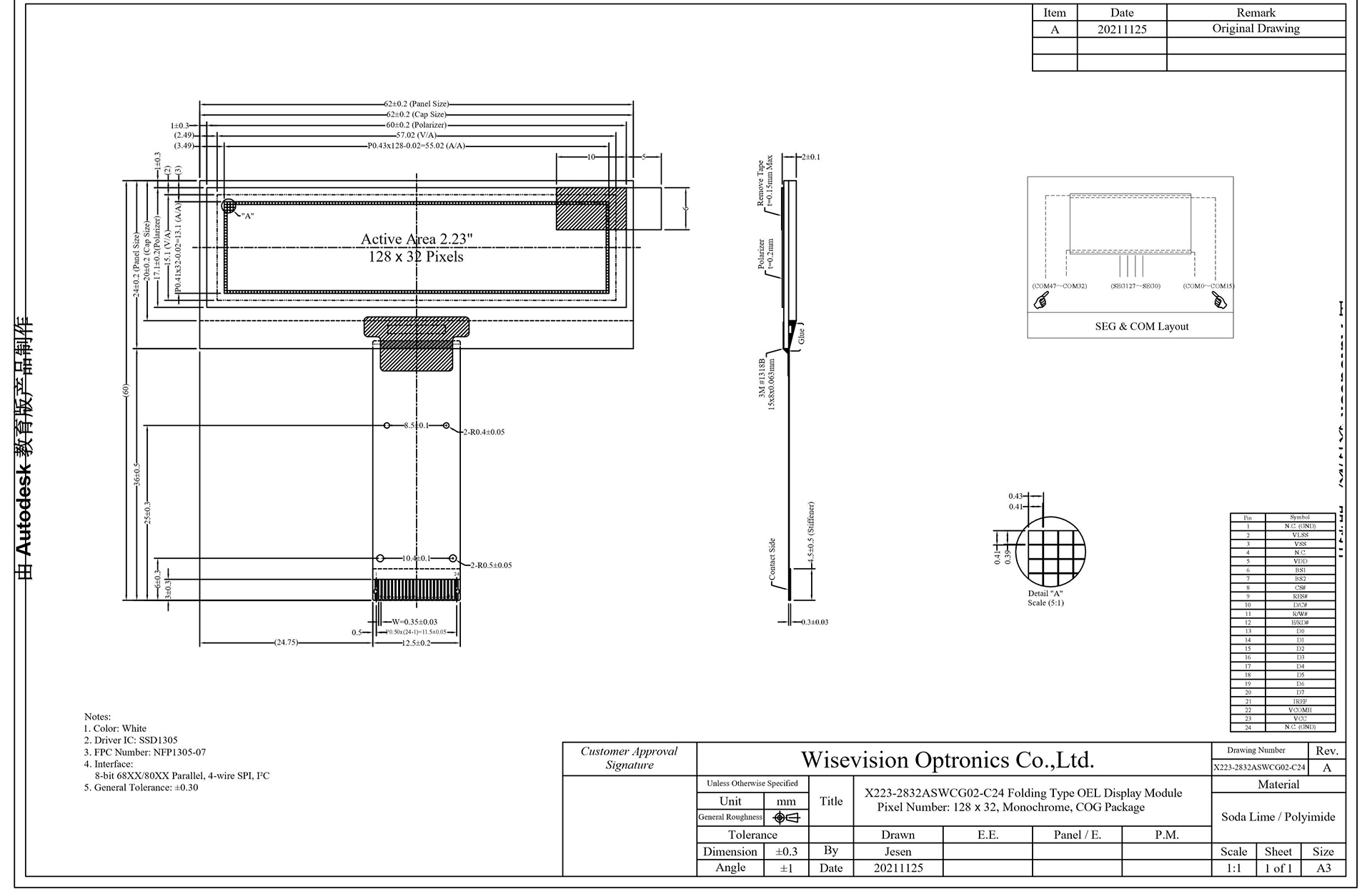

    Mechanical Drawing

    223-OLED1

    Product Introduction

    Launched a newly designed 2.23-inch small OLED display module screen, which is a revolutionary product that combines cutting-edge technology with compact design.

    This OLED display module has a compact screen size of only 2.23 inches, making it ideal for applications with limited space. Despite its small size, the display module boasts an impressive 128x32 dot resolution, ensuring clear and sharp display of information.

    The OLED technology used in this display module ensures excellent image quality, vivid colors and unparalleled contrast. Organic light-emitting diode (OLED) technology eliminates the need for a backlight, thereby improving energy efficiency and eliminating the possibility of backlight-related issues such as backlight bleeding.

    One of the standout features of this OLED display module screen is its versatility. Whether you are developing wearables, small electronics, or smart home devices, this module can be seamlessly integrated into your design. Its compatibility with various microcontrollers and its wide voltage range make it suitable for a wide range of applications.

    The 2.23-inch OLED display module screen also provides excellent visibility from all angles, ensuring your content remains clear and legible even in challenging lighting conditions. This makes it ideal for outdoor equipment or gadgets that need to be viewed from different angles.

    Additionally, this display module is designed for easy integration, with a simple interface that easily integrates with your existing systems. Its compact size and lightweight design allow it to be easily integrated into any project without compromising performance.

    All in all, the 2.23-inch small OLED display module screen is a game changer in the field of display technology. Its impressive resolution, vibrant colors, and compatibility with a variety of applications make it the perfect choice for developers looking for a high-quality display solution. With its small form factor and superior performance, this display module will change the way we view and interact with electronic devices.

    223-OLED3

    Below Are The Advantages Of This Low-power OLED Display

    1. Thin–No need of backlight, self-emissive;

    2. Wide viewing angle :Free degree;

    3. High Brightness: 140 cd/m²;

    4. High contrast ratio(Dark Room): 2000:1;

    5. High response speed(<2μS);

    6. Wide Operation Temperature;

    7. Lower power consumption.
