2.40 “ Small Size 240 RGB×320 Dots TFT LCD Display Module Screen

Short Description:

Model No: N240-2432KBWIG15-C22

Size: 2.40 inch

Pixels: 240×320 Dots

A.A: 36.72×48.96 mm

Outline: 40.44×57×2 mm

View Direction: IPS/Free

Interface: SPI / MCU/RGB

Brightness(cd/m²): 400

Driver IC: ST7789V

Touch Panel: Without Touch Panel

Send email to us Download as PDF

Product Detail

Product Tags

General Description

Display Type	IPS-TFT-LCD
Brand name	WISEVISION
Size	2.40 inch
Pixels	240×320 Dots
View Direction	IPS/Free
Active Area (A.A)	36.72×48.96 mm
Panel Size	40.44×57×2 mm
Color arrangement	RGB Vertical stripe
Color	262K
Brightness	400 (Min)cd/m²
Interface	SPI / MCU/RGB
Pin Number	15
Driver IC	ST7789V
Backlight Type	4 CHIP-WHITE LED
Voltage	2.4~3.3 V
Weight	TBD
Operational Temperature	-20 ~ +70 °C
Storage Temperature	-30 ~ +80°C

Product Information

N240-2432KBWIG15-C22 is a small-sized 2.40-inch IPS wide-angle TFT-LCD display module. This small-sized TFT-LCD panel has a resolution of 240×320 pixels.

The display module is built-in with ST7789V controller IC, supports SPI and MCU interface, a supply voltage (VDD) range of 2.4V~3.3V, module brightness of 400 cd/m² (typical value), and contrast of 1500(typical value).

This 2.40 inches TFT- LCD display module is portrait mode, and the panel adopts wide angle IPS (In plane Switching) technology. The viewing range is left: 80/right: 80/up: 80/down: 80 degrees.

The panel has a wide range of perspectives, bright colors, and high-quality images with saturated nature. It is very suitable for applications such as wearable devices, handheld devices, security monitoring system. The operating temperature of this module is -20 ℃ to 70 ℃, and the storage temperature is -30 ℃ to 80 ℃.

All in all, the N240-2432KBWIG15-C22 provides a high-performance display solution with professional-grade quality. Its simple and compact design and versatility of interface options allow for seamless integration into any project. This monitor is the perfect choice when you need exceptional image quality and outstanding visibility. With the N240-2432KBWIG15-C22, your content will come to life like never before.

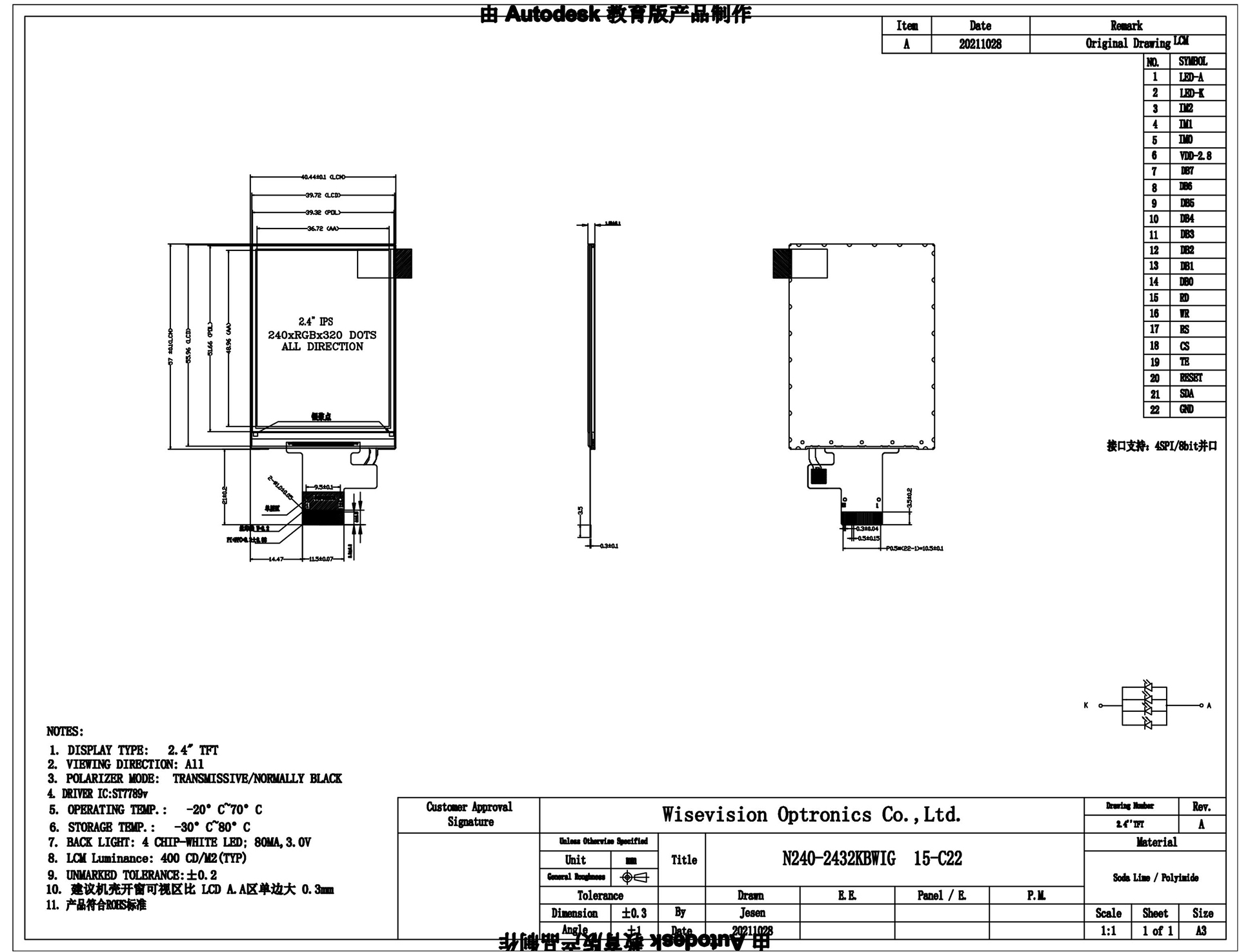

Mechanical Drawing

Product Information

Introducing an innovative and compact 2.40-inch small-size TFT LCD display module screen, designed to elevate your visual experience to a whole new level. This cutting-edge display features a high resolution of 240 RGB x 320 dots, ensuring clear, vivid images. With its stylish and compact design, this TFT LCD display module is the perfect choice for a variety of electronic applications that require a small screen size without compromising on quality.

Featuring a stunning 2.40-inch display, the screen offers wide viewing angles, allowing you to enjoy multimedia content from any angle without any loss of color or clarity. Whether you use it to play games, play multimedia or display important information, this TFT LCD display module provides perfect visual effects to attract your attention.

Thanks to its RGB×320-dot resolution, the display module delivers precise, sharp images, ensuring every detail is represented with the most accuracy. Whether you're viewing complex graphics, text or photos, this high-resolution screen will bring your content to life, completely immersing you in the visual experience.

Additionally, this TFT LCD display module is designed with durability and longevity in mind, ensuring its performance will stand the test of time. Its reliable construction ensures it will withstand continuous use, making it ideal for applications requiring continuous display operation.

Additionally, the display module's small size makes it ideal for projects with limited space. Whether you're designing portable devices or compact electronics, this screen is the perfect choice. Its small form factor not only saves valuable space, but also gives you the flexibility to integrate it into a variety of products, from wearables to industrial equipment.

In summary, the 2.40-inch small size TFT LCD display module screen combines cutting-edge technology, high resolution and stylish design, making it a versatile choice for various electronic applications. With its compact size and stunning visual performance, this display module delivers a superior display experience that will enhance your projects and engage your audience.
