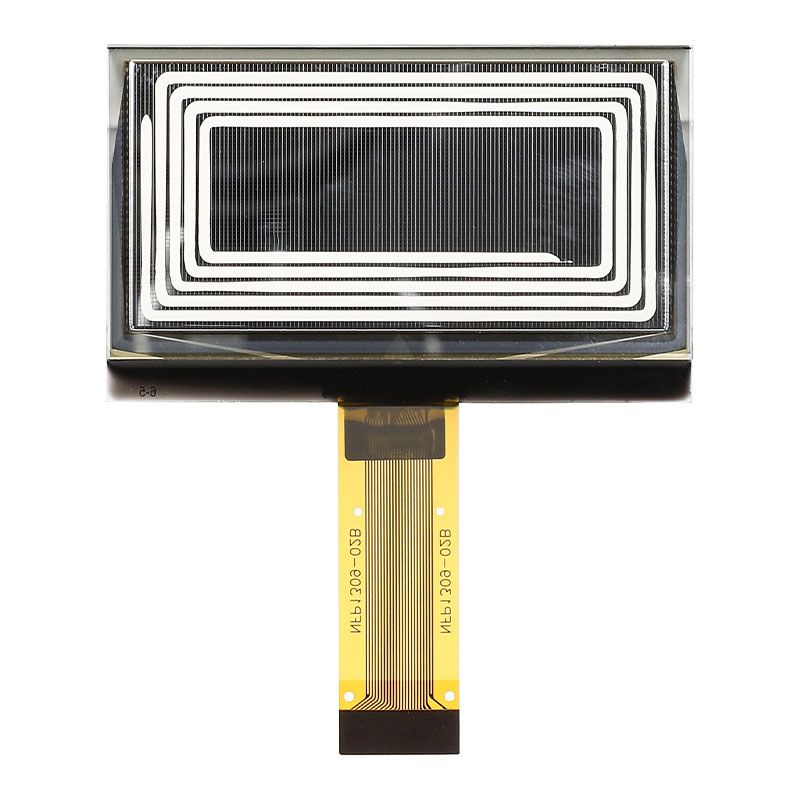

2.42 “ Small 128×64 Dots OLED Display Module Screen
General Description
| Display Type | OLED |
| Brand name | WISEVISION |
| Size | 2.42 inch |
| Pixels | 128×64 Dots |
| Display Mode | Passive Matrix |
| Active Area (A.A) | 55.01×27.49 mm |
| Panel Size | 60.5×37×1.8 mm |
| Color | White/Blue/Yellow |
| Brightness | 90 (Min)cd/m² |
| Driving Method | External supply |
| Interface | Parallel/I²C/4-wire SPI |
| Duty | 1/64 |
| Pin Number | 24 |
| Driver IC | SSD1309 |
| Voltage | 1.65-3.3 V |
| Weight | TBD |
| Operational Temperature | -40 ~ +70 °C |
| Storage Temperature | -40 ~ +85°C |
Product Information
X242-2864KSWUG01-C24 is a graphic OLED display with an active area of 55.01 × 27.49 mm, and a diagonal size of 2.42 inches.
This OLED module is built-in with the advanced SSD1309 controller IC and supporting parallel interfaces, I²C, and 4-wire SPI serial interfaces.
To ensure a seamless user experience, the OLED display module operates with a logic supply voltage of 3.0V (typical value) and provides a drive duty of 1/64.
This means that it not only consumes minimal power, but also delivers superior performance, making it a perfect choice for energy-saving applications.
The OLED module is suitable for a variety of industries such as: handheld instruments, smart grid, smart wearable, IoT devices, medical devices.
The module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.
Below Are The Advantages Of This Low-power OLED Display
1. Thin–No need of backlight, self-emissive;
2. Wide viewing angle :Free degree;
3. High Brightness: 110 cd/m²;
4. High contrast ratio(Dark Room): 2000:1;
5. High response speed(＜2μS);
6. Wide Operation Temperature
7. Lower power consumption;

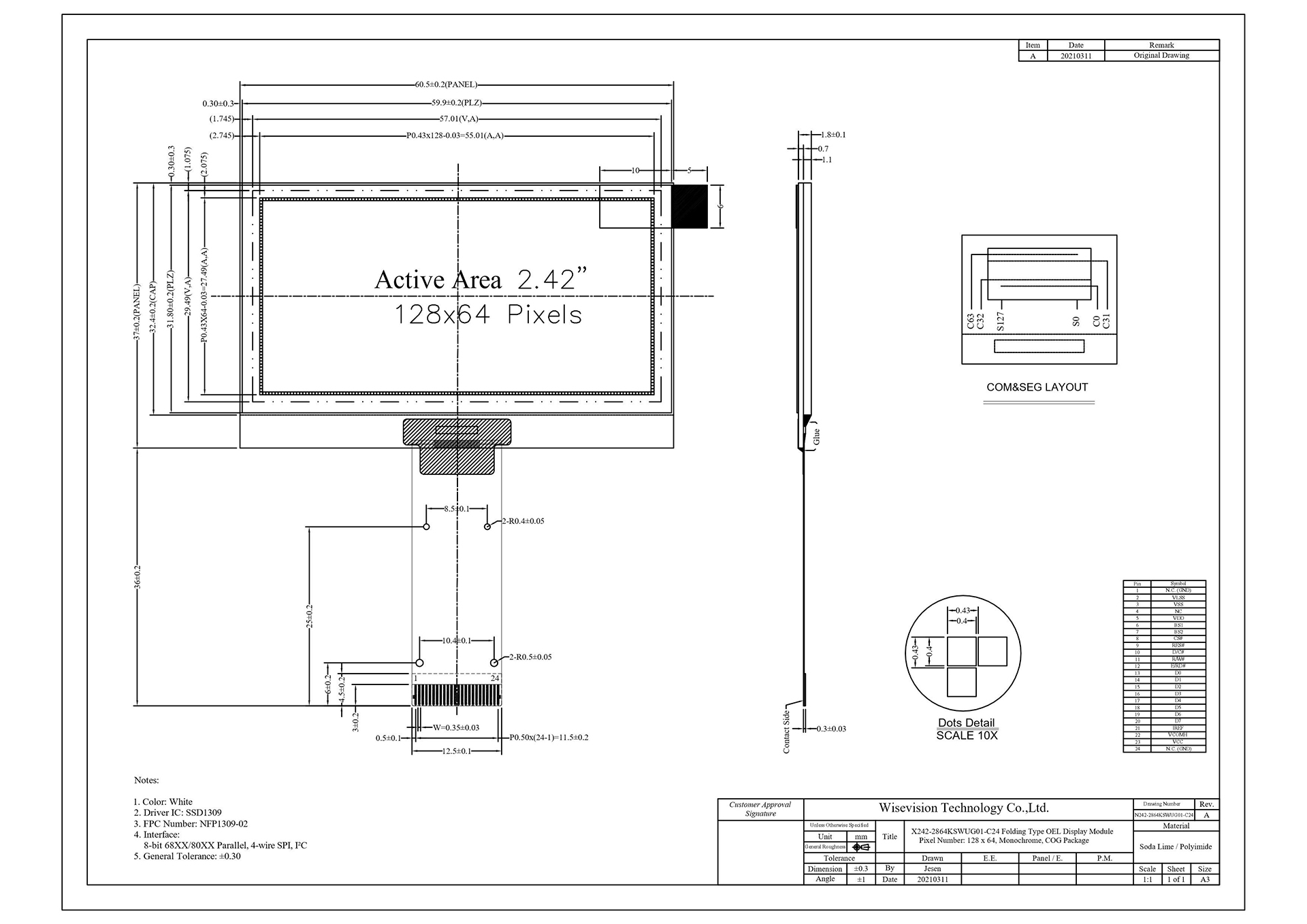

Mechanical Drawing
Product Introduction
Introducing the latest member of our display module series, the 2.42-inch small OLED display module screen! The display module's compact size and high resolution of 128x64 dots make it ideal for a variety of applications where space is limited but a clear, vivid display is required.
This OLED display module screen is designed to deliver superior visual performance, delivering sharp, bright images and excellent contrast. The high resolution ensures every detail is displayed accurately, making it ideal for displaying complex graphics, intricate text, and even small icons and logos.
The display module uses OLED technology, which offers several advantages over traditional LCD screens. OLED panels deliver deep blacks and vibrant colors for rich, lifelike images. It also features wider viewing angles, allowing viewers to enjoy content from different angles without any loss in quality. Additionally, OLED technology consumes less electricity, making it more energy efficient and extending the life of the product.
The 2.42-inch small OLED display module screen is versatile and can be used in a variety of industries and applications. It's particularly suitable for portable devices, wearable technology, smart home devices, industrial control systems, and more. Its small size makes it a good choice for gadgets where space optimization is crucial, such as smartwatches, fitness trackers, IoT devices, and electronic devices.
The OLED display module screen is easy to integrate and has a simple interface, which can be seamlessly integrated into existing designs or used in new product development. It supports different communication interfaces such as SPI and I2C, providing flexibility and compatibility with various microcontroller platforms.
All in all, our 2.42-inch small OLED display module screen combines compactness, high resolution and excellent visual performance. Its OLED technology ensures brilliant colors, deep blacks and wider viewing angles. Whether you want to enhance the display of smart wearable devices, portable gadgets or industrial control systems, this OLED display module screen is the perfect solution. Upgrade your products with this state-of-the-art display module to provide your customers with an immersive and visually stunning experience.
