2.70 “ Small 128×64 Dots OLED Display Module Screen

Short Description:


  • Model No: X270-2864ASWHG03-C30
  • Size: 2.70 inch
  • Pixels: 128×64 Dots
  • A.A: 61.41×30.69 mm
  • Outline: 73×40.24×2.0 mm
  • Brightness:: 50 (Min)cd/m²
  • Interface: Parallel/I²C/4-wire SPI
  • Driver IC: SSD1327
  • Product Detail

    Product Tags

    General Description

    Display Type OLED
    Brand name WISEVISION
    Size 2.70 inch
    Pixels 128×64 Dots
    Display Mode Passive Matrix
    Active Area (A.A) 61.41×30.69 mm
    Panel Size 73×40.24×2.0 mm
    Color White/Blue/Yellow
    Brightness 50 (Min)cd/m²
    Driving Method External supply
    Interface Parallel/I²C/4-wire SPI
    Duty 1/64
    Pin Number 30
    Driver IC SSD1327
    Voltage 1.65-3.3 V
    Weight TBD
    Operational Temperature -40 ~ +70 °C
    Storage Temperature -40 ~ +85°C

    Product Information

    X270-2864ASWHG03-C30 is a 2.70” COG Graphic OLED display, made of resolution of 128x64 pixels. This OLED display module has the outline dimension of 73×40.24×2.0 mm and AA size 61.41×30.69 mm.

    This module is built-in with SSD1327 controller IC; it can be supported parallel, 4-line SPI, and I²C interfaces; the supply voltage of logic is 3.0V (typical value), 1/64 driving duty.

    X270-2864ASWHG03-C30 is a COG structure OLED display, this OLED module is suitable for smart home applications, handheld instruments, intelligent technology devices, automotive, Instrumentation, medical instruments, etc.

    The OLED module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

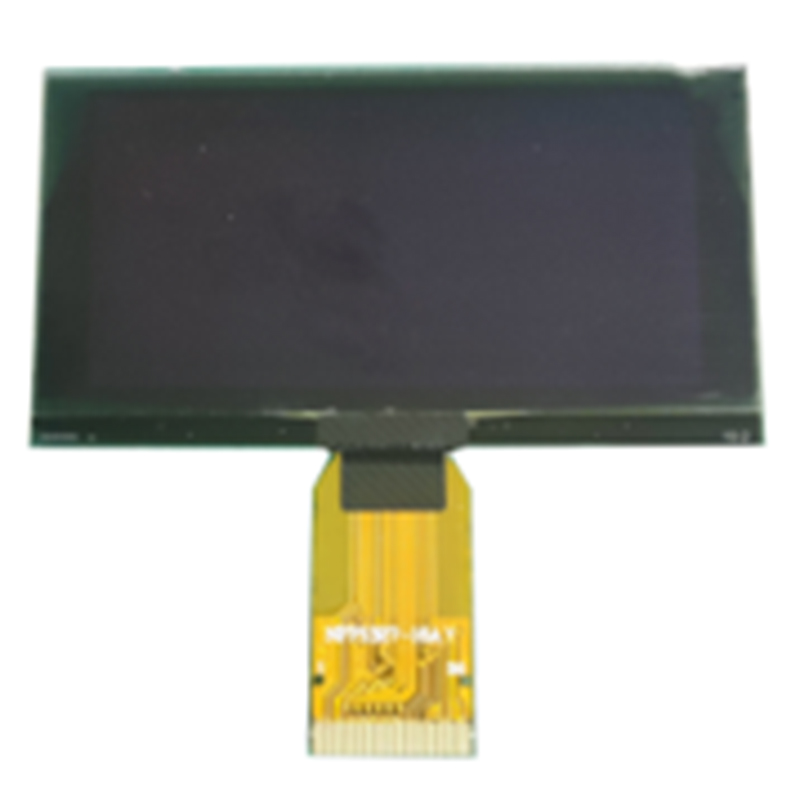

    270-LOED

    Below Are The Advantages Of This Low-power OLED Display:

    1. Thin–No need of backlight, self-emissive;

    2. Wide viewing angle :Free degree;

    3. High Brightness: 80 cd/m²;

    4. High contrast ratio(Dark Room): 2000:1;

    5. High response speed (<2μS) ;

    6. Wide Operation Temperature;

    7. Lower power consumption.

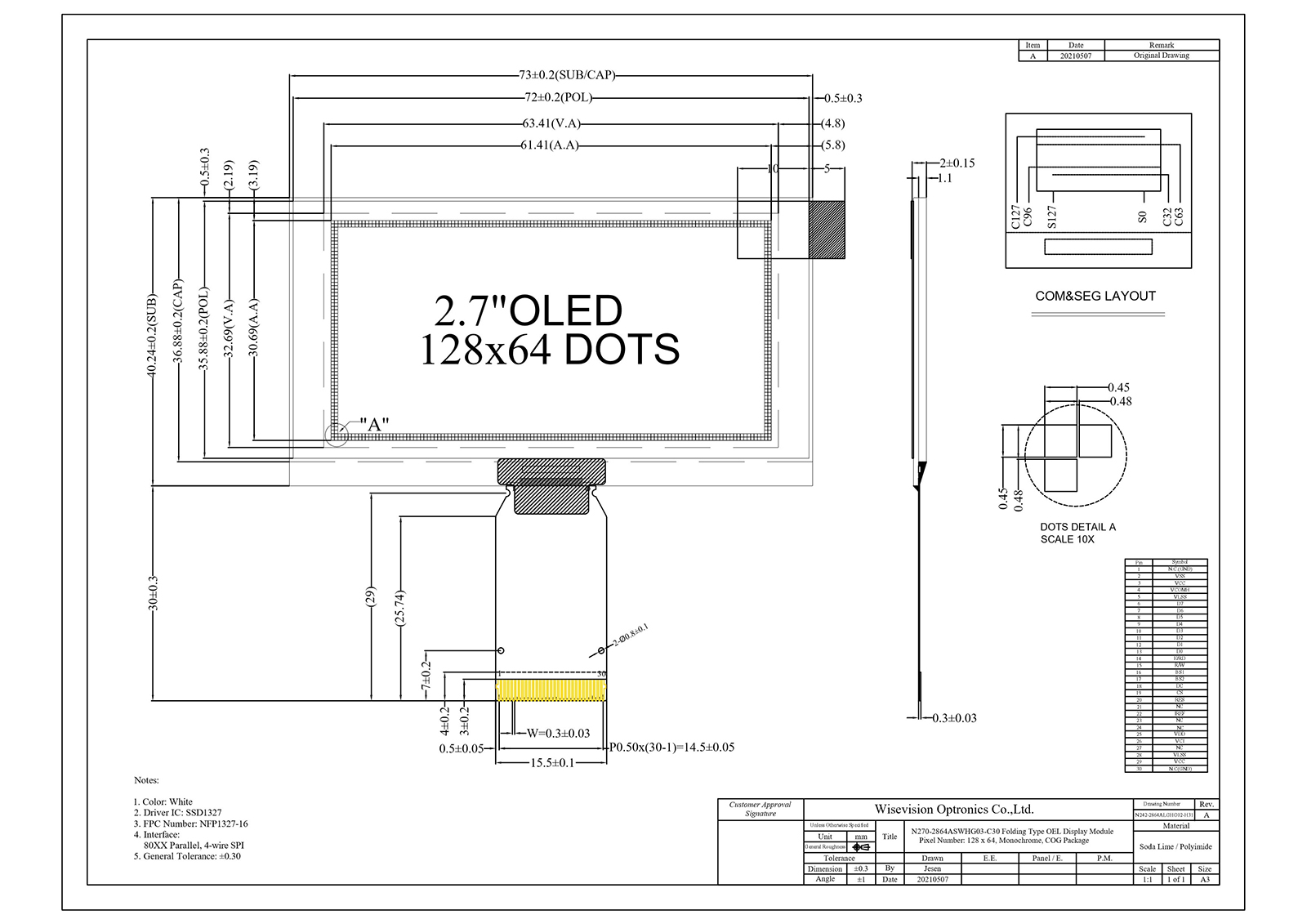

    Mechanical Drawing


    Product Introduction

    Introducing our latest innovation, a 2.70-inch small 128x64 dot OLED display module screen! This cutting-edge display module offers advanced features and superior performance, making it the perfect choice for a variety of applications.

    This OLED display module has a compact size of 2.70 inches, making it suitable for installation in smaller devices without compromising quality and functionality. 128x64 dot resolution ensures crisp and clear visuals for a seamless user experience.

    The display module uses OLED technology to provide excellent image quality, high contrast and vivid colors. OLED offers deeper black levels and wider viewing angles than other display technologies, ensuring your content stands out and engages your audience.

    The module features a built-in driver IC, which simplifies integration and reduces the overall complexity of the project. The driver IC also includes various interface options, making it compatible with a variety of microcontrollers and development boards, allowing easy integration into your existing system.

    Due to its low power consumption, this display module not only saves energy but also extends the battery life of the device, making it an excellent choice for portable applications. Whether you are designing wearable devices, medical instruments or industrial control systems, this OLED display module will meet and exceed your expectations.

    Additionally, the module is designed with a focus on durability and long-lasting performance, ensuring it can withstand rigorous operating conditions. Its compact design and rugged construction make it suitable for a variety of environments, including outdoor and industrial applications.

    All in all, the 2.70-inch small 128x64 dot OLED display module screen is a versatile and reliable solution for your display needs. Its compact size, high resolution and advanced features make it ideal for a variety of applications. Experience future display technology with our revolutionary OLED display modules. "
