2.76 “ Small Size Round 480×480 Dots TFT LCD Display Module Screen
General Description
| Display Type | IPS-TFT-LCD |
| Brand name | WISEVISION |
| Size | 2.76 inch |
| Pixels | 480×480 Dots |
| View Direction | IPS/Free |
| Active Area (A.A) | 70.13×70.13 mm |
| Panel Size | 73.03 ×76.48 ×2.35 mm |
| Color arrangement | RGB Vertical stripe |
| Color | 262K |
| Brightness | 450 (Min)cd/m² |
| Interface | MIPI |
| Pin Number | 15 |
| Driver IC | ST7701S |
| Backlight Type | 4 CHIP-WHITE LED |
| Voltage | 3.0~3.6 V |
| Weight | TBD |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |
Product Information
TFT276B009 is a circle IPS TFT-LCD screen with a 2.76-inch diameter display with resolution 480x480 pixels. This round TFT display comprises an IPS TFT-LCD panel built with a ST7701S driver IC that can communicate via MIPI interface.
TFT276B009 is adopted IPS (In plane Switching) panel, which has the advantage of higher contrast, true black background when the display or pixel is off and wider viewing angle of Left:85 / Right:85 / Up:85/ Down:85 degree (typical), contrast ratio 1,200:1 (typical value), brightness 450 cd/m² (typical value).
The power supply voltage of LCM is from 3.0V to 3.6V, the typical value of 3.3V. The display module is suitable for compact devices, wearable devices, home automation products, white products, video systems, etc. It can be operating at temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃.
The TFT276B009 does not have a touch panel, resulting in a cleaner, more minimalist design. This feature makes it particularly suitable for applications that do not require touch functionality while still ensuring a high-quality display experience.

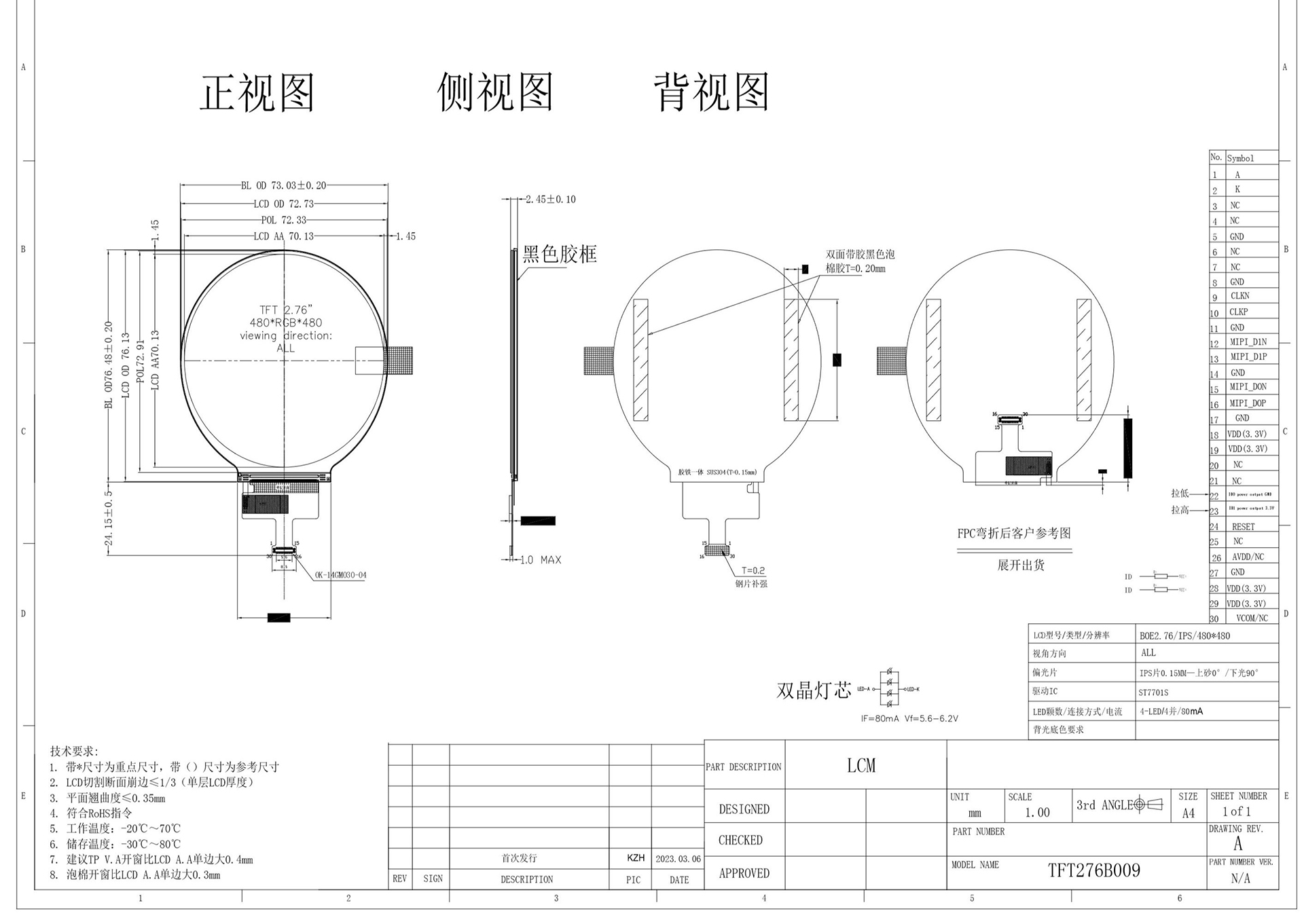

Mechanical Drawing
