2.79 “ Small Size 142RGB×428 Dots TFT LCD Display Module Screen

Short Description:

Model No: N279-1428KIWIG01-C10

Size: 2.79 inch

Pixels: 142 x 428 Dots

A.A: 21.28 x 64.14

Outline: 24.38 x 69.43 x 2.15

View Direction: IPS/Free

Interface: SPI/MCU

Brightness(cd/m²): 350

Driver IC: NV3007

Touch Panel: Without Touch Panel

Send email to us Download as PDF

Product Detail

Product Tags

General Description

Display Type	IPS-TFT-LCD
Brand name	WISEVISION
Size	2.79 inch
Pixels	142x428 Dots
View Direction	SPI/Free
Active Area(A.A)	21.28 x 64.14
Panel Size	24.38 x 69.43 x 2.15
Color arrangement	RGB Vertical stripe
Color	262K
Brightness	350
Interface	SPI/MCU
Pin Number	10
Driver IC	NV3007
Backlight Type
Voltage	-0.3~4.6 V
Weight	TBD
Operational Temperature	-20 ~ +85 °C
Storage Temperature	-40~ +90°C

Product Information

N279-1428KIWIG01-C10 is a 2.79-inch IPS TFT-LCD with a resolution of 142x428 pixels. supports various interfaces such as SPI, MCU and RGB, providing flexibility for seamless integration into any project. The display's brightness of 350 cd/m² ensures clear, vivid visuals even in bright lighting conditions. The monitor uses the advanced NV3007 driver IC to ensure smooth and efficient performance.
N279-1428KIWIG01-C10 adopts wide angle IPS (In plane Switching) technology. The viewing range is left: 85/right: 85/up: 85/down: 85 degrees. a contrast ratio of 1300:1, and an aspect ratio of 3:4 (typical value). The supply voltage for analog is from 1.65V to 3.3V (the typical value is 2.8V).The IPS panel has a wide range of viewing angles, bright colors, and high-quality images that are saturated and natural. This TFT-LCD module can work under temperatures from -40℃ to +85℃, and its storage temperatures range from -40℃ to +85℃.

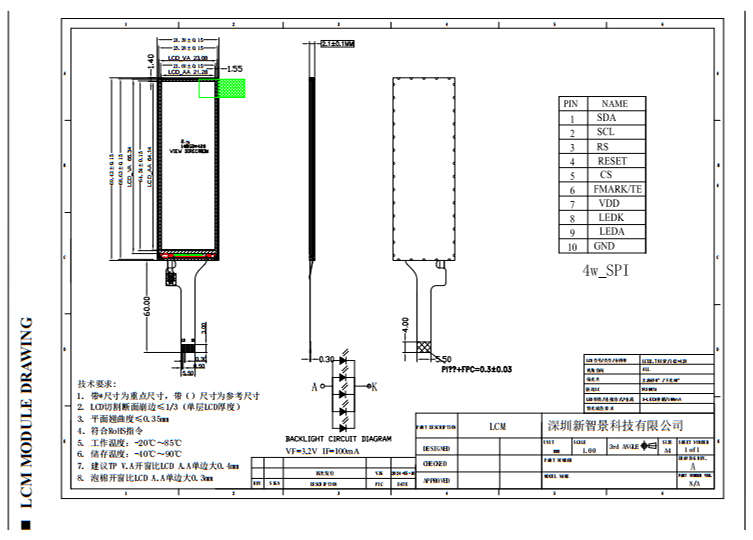

Mechanical Drawing
