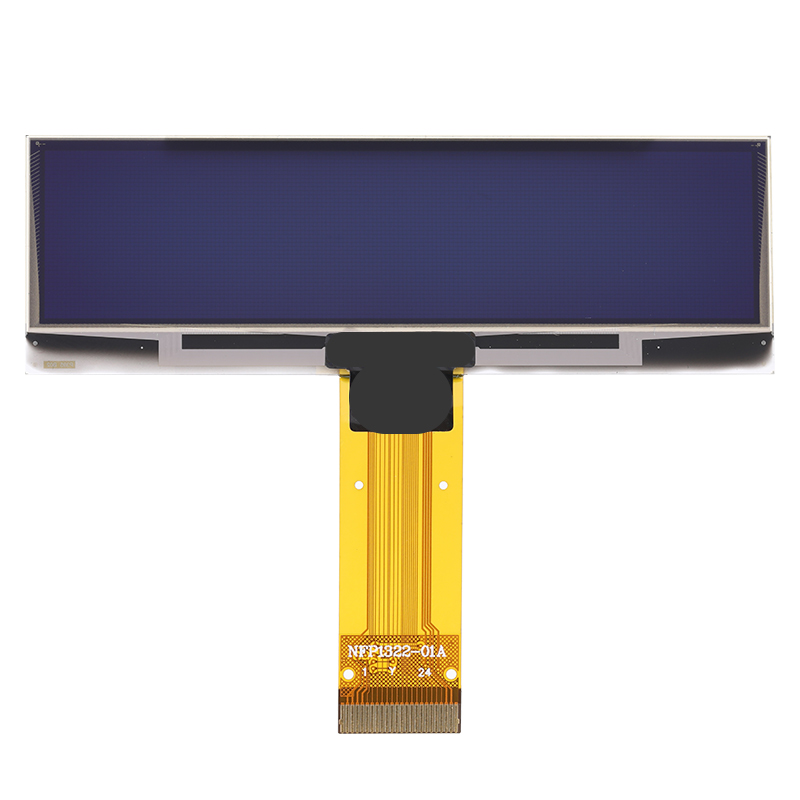

2.89 “ Small 167×42 Dots OLED Display Module Screen

Short Description:


  • Model No: N289-6742ASWAG01-C24
  • Size: 2.89 inch
  • Pixels: 167×42 Dots
  • A.A: 71.446×13.98 mm
  • Outline: 75.44×24.4×2.03 mm
  • Brightness: 80 (Min)cd/m²
  • Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI
  • Driver IC: SSD1322
  • Product Detail

    Product Tags

    General Description

    Display Type OLED
    Brand name WISEVISION
    Size 2.89 inch
    Pixels 167×42 Dots
    Display Mode Passive Matrix
    Active Area (A.A) 71.446×13.98 mm
    Panel Size 75.44×24.4×2.03 mm
    Color White
    Brightness 80 (Min)cd/m²
    Driving Method External supply
    Interface 8-bit 68XX/80XX Parallel, 4-wire SPI
    Duty 1/42
    Pin Number 24
    Driver IC SSD1322
    Voltage 1.65-3.3 V
    Weight TBD
    Operational Temperature -40 ~ +85 °C
    Storage Temperature -40 ~ +85°C

    Product Information

    N289-6742ASWAG01-C24 is a 2.89” COG Graphic OLED display, made of resolution of 167×42 pixels.

    This OLED display module has the outline dimension of 75.44×24.4×2.03 mm and AA size 71.446×13.98 mm; This module is built-in with SSD1322 controller IC; it can be supported parallel, 4-line SPI, and I²C interfaces; the supply voltage of logic is 3.0V (typical value), 1/42 driving duty.

    N289-6742ASWAG01-C24 is a COG structure OLED display, this OLED module is suitable for smart home applications, handheld instruments, intelligent technology devices, automotive, Instrumentation, medical instruments, etc.

    The OLED module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.

    All in all, the N289-6742ASWAG01-C24 OLED panel is a game-changer that takes the display experience to a whole new level.

    With its compact size, high resolution, and exceptional brightness, this OLED panel is ideal for a variety of applications, including smartphones, tablets, digital cameras, and more.

    Its slim profile and advanced connectivity options make it ideal for designers and manufacturers looking to create stylish and innovative devices.

    Enhance your visuals and bring your content to life with the N289-6742ASWAG01-C24 OLED panel.

    289-OLED (1)

    Below Are The Advantages Of This Low-power OLED Display

    1. Thin–No need of backlight, self-emissive;

    2. Wide viewing angle :Free degree;

    3. High Brightness: 90 cd/m²;

    4. High contrast ratio(Dark Room): 2000:1;

    5. High response speed(<2μS);

    6. Wide Operation Temperature;

    7. Lower power consumption.

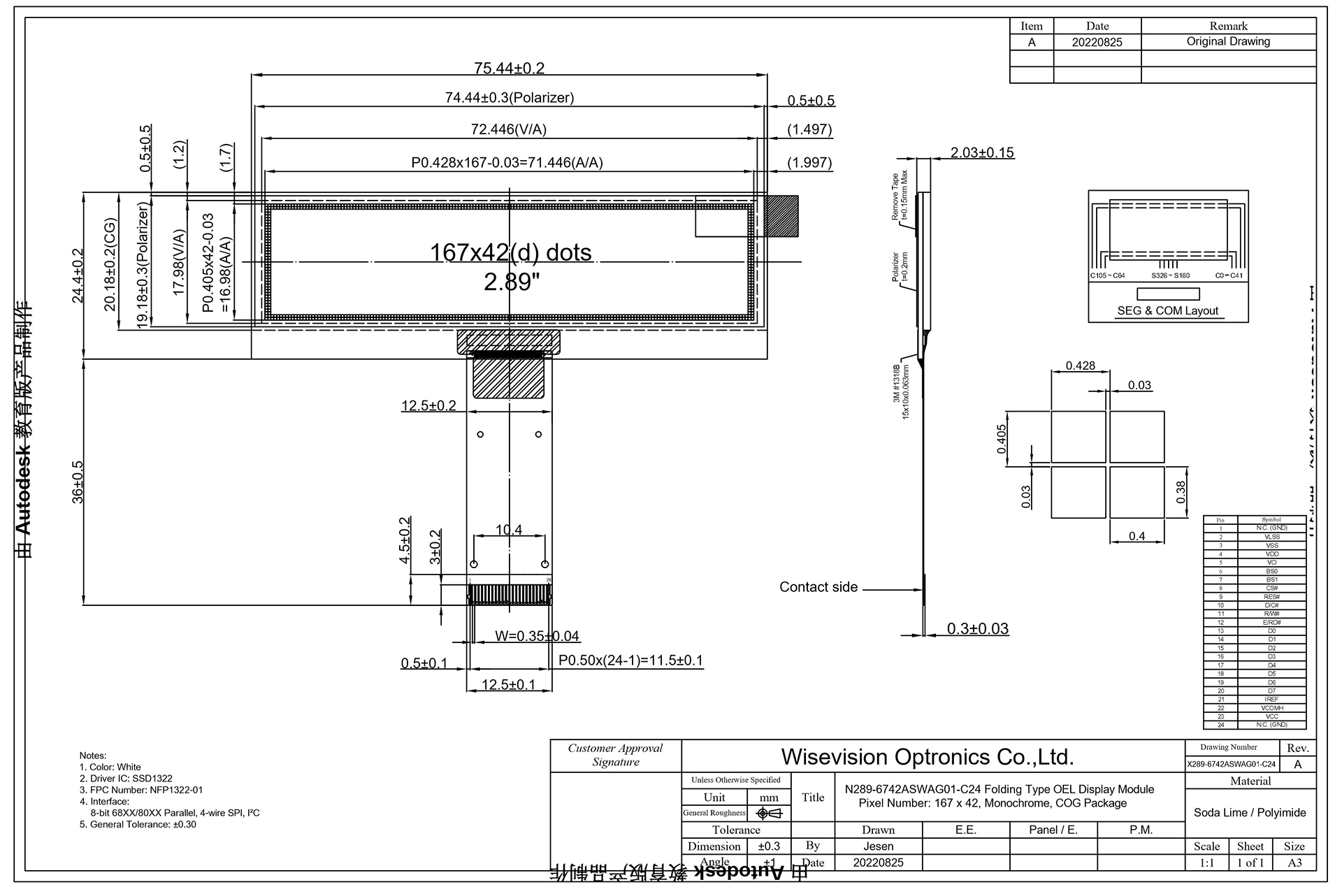

    Mechanical Drawing
