3.12 “ Small 256×64 Dots OLED Display Module Screen
General Description
| Display Type | OLED |
| Brand name | WISEVISION |
| Size | 3.12 inch |
| Pixels | 256×64 Dots |
| Display Mode | Passive Matrix |
| Active Area (A.A) | 76.78×19.18 mm |
| Panel Size | 88×27.8×2.0 mm |
| Color | White/Blue/Yellow |
| Brightness | 60 (Min)cd/m² |
| Driving Method | External supply |
| Interface | Parallel/I²C/4-wireSPI |
| Duty | 1/64 |
| Pin Number | 30 |
| Driver IC | SSD1322 |
| Voltage | 1.65-3.3 V |
| Weight | TBD |
| Operational Temperature | -40 ~ +85 °C |
| Storage Temperature | -40 ~ +85°C |
Product Information

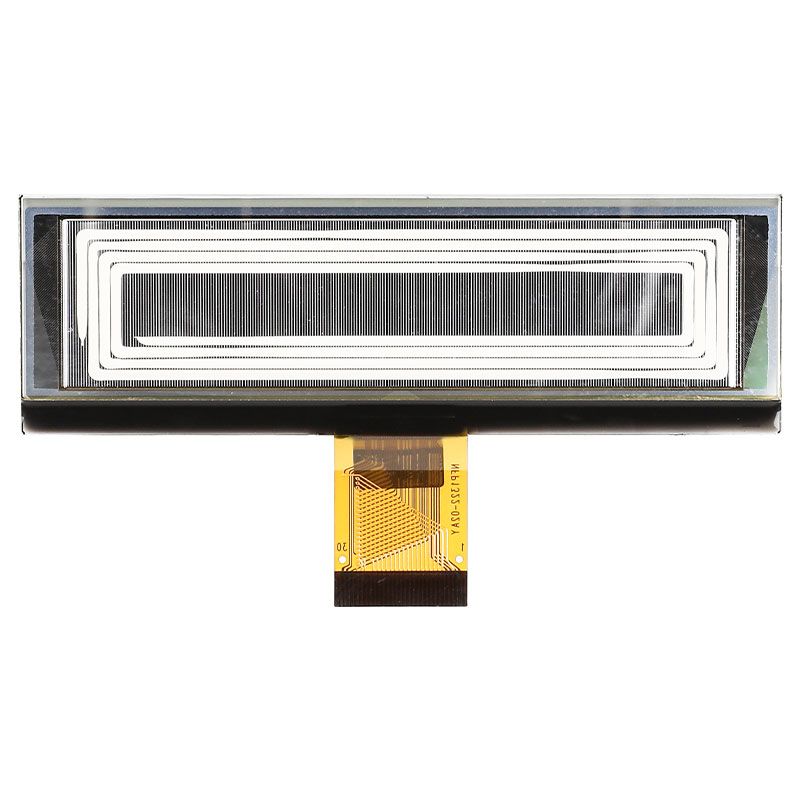

X312-5664ASWDG01-C30 is a 3.12” COG Graphic OLED display, made of resolution of 256×64 pixels.
This OLED display module has the outline dimension of 88×27.8×2.0 mm and AA size 76.78×19.18 mm;
This module is built-in with SSD1322 controller IC; it can be supported parallel, 4-line SPI, and I²C interfaces; the supply voltage of logic is 2.5V (typical value), 1/64 driving duty.
X312-5664ASWDG01-C30 is a COG structure OLED display, this OLED module is suitable for medical applications, control panel, self-checkouts machine, ticket machines, parking meters, etc.
The OLED module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.
Below Are The Advantages Of This Low-power OLED Display
1. Thin–No need of backlight, self-emissive;
2. Wide viewing angle :Free degree;
3. High Brightness: 80 cd/m²;
4. High contrast ratio(Dark Room): 2000:1;
5. High response speed(＜2μS);
6. Wide Operation Temperature;
7. Lower power consumption.

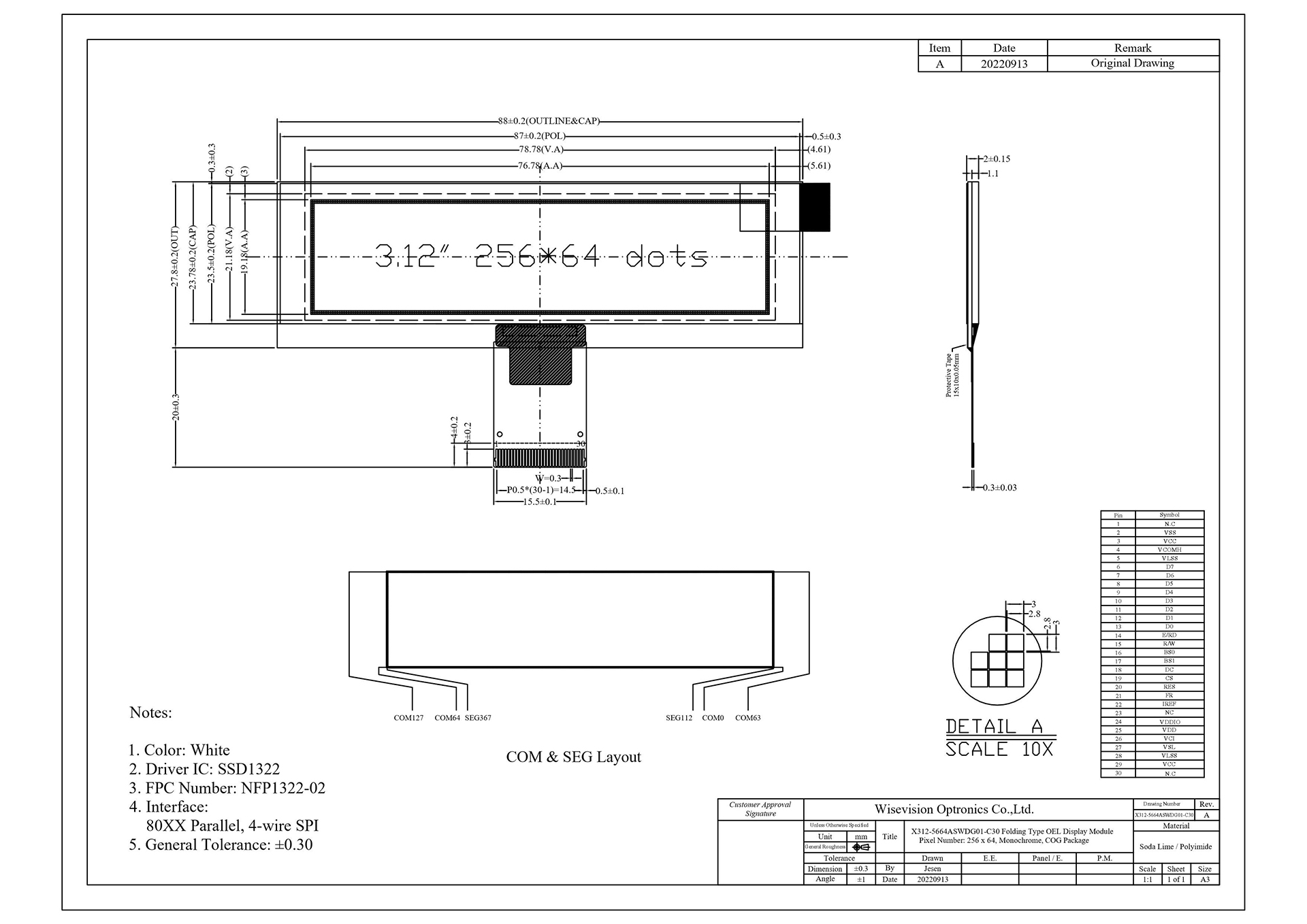

Mechanical Drawing
Product Introduction
Introducing the 3.12-inch 256x64 dot small OLED display module screen - an innovative and state-of-the-art display solution that brings superior visual effects to your fingertips.
With its compact size and impressive pixel density of 256x64 dots, this OLED display module delivers an unparalleled immersive viewing experience. Whether your professional projects require crisp and vibrant graphics or your personal creations require eye-catching visuals, this display is designed to take your content to new heights.
Powered by OLED technology, the module delivers unparalleled color accuracy and contrast, ensuring every image comes to life with stunning precision. High resolution and dense pixel arrangement create sharp and detailed visuals, delivering unparalleled clarity that will leave you in awe.
This OLED display module not only provides superior visual effects, but also has a fast response time, making it ideal for dynamic and fast-paced content. Whether you're playing video games, watching action-packed movies, or designing animations, this display will capture every moment perfectly, ensuring a smooth and seamless experience.
Due to its small form factor, the OLED module is versatile and can be integrated into a variety of devices and applications. Whether you are designing a wearable device that requires a compact display, or a compact consumer electronics product that requires a stunning visual interface, this module is the perfect choice.
Despite its smaller size, this OLED display module does not compromise on durability or reliability. Made from high-quality materials and advanced manufacturing techniques, this screen will stand the test of time and provide consistent, flawless performance for years to come.
This OLED display module is easy to use and install, and also offers flexible connectivity options for seamless integration with your preferred hardware and software. This module has a user-friendly interface suitable for both professional developers and hobbyists.
Experience the future of display technology with a 3.12-inch 256x64 dot small OLED display module screen - the perfect fusion of superior visuals, premium craftsmanship and seamless functionality. Upgrade your projects, enhance your designs and bring your content to life with this superior OLED display module. "
