3.12 “ Small 256×64 Dots OLED Display Module Screen
General Description
| Display Type | OLED |
| Brand name | WISEVISION |
| Size | 3.12 inch |
| Pixels | 256×64 Dots |
| Display Mode | Passive Matrix |
| Active Area (A.A) | 76.78×19.18 mm |
| Panel Size | 88×27.8×2.0 mm |
| Color | White/Blue/Yellow |
| Brightness | 60 (Min)cd/m² |
| Driving Method | External supply |
| Interface | Parallel/4-wire SPI |
| Duty | 1/64 |
| Pin Number | 30 |
| Driver IC | SSD1322UR1(COF) |
| Voltage | 1.65-3.3 V |
| Weight | TBD |
| Operational Temperature | -40 ~ +85 °C |
| Storage Temperature | -40 ~ +85°C |
Product Information

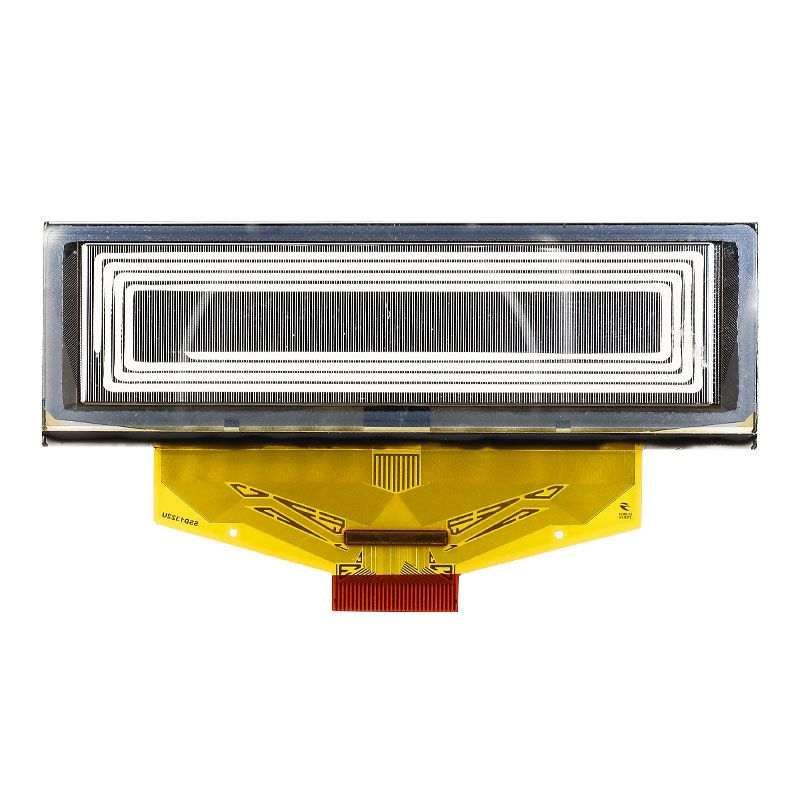

X312-5664ASWDF01-C30 is a 3.12” Graphic OLED display, made of resolution of 256×64 pixels.
This OLED display module has the outline dimension of 88×27.8×2.0 mm and AA size 76.78×19.18 mm;
This module is built-in with SSD1322UR1(COF) controller IC; it can be supported parallel, 4-line SPI, and I²C interfaces; the supply voltage of logic is 2.5V (typical value), 1/64 driving duty.
X312-5664ASWDF01-C30 is a COF structure OLED display, this OLED module is suitable for medical applications, control panel, self-checkouts machine, ticket machines, parking meters, etc.
The OLED module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.
With the X312-5664ASWDF01-C30 PMOLED module and its advanced features, customers can get a superior visual experience.
Its compatibility with the SSD1322 driver IC ensures optimal functionality and performance.
Jiangxi Wisevision Optronics Co., Ltd. Will bring you cutting-edge display solutions to enhance your products and enhance user experience.
Trust us to meet all your OLED module needs and let our expertise drive your success.
Below Are The Advantages Of This Low-power OLED Display
1. Thin–No need of backlight, self-emissive;
2. Wide viewing angle :Free degree;
3. High Brightness: 80 cd/m²;
4. High contrast ratio(Dark Room): 2000:1;
5. High response speed(＜2μS);
6. Wide Operation Temperature;
7. Lower power consumption.

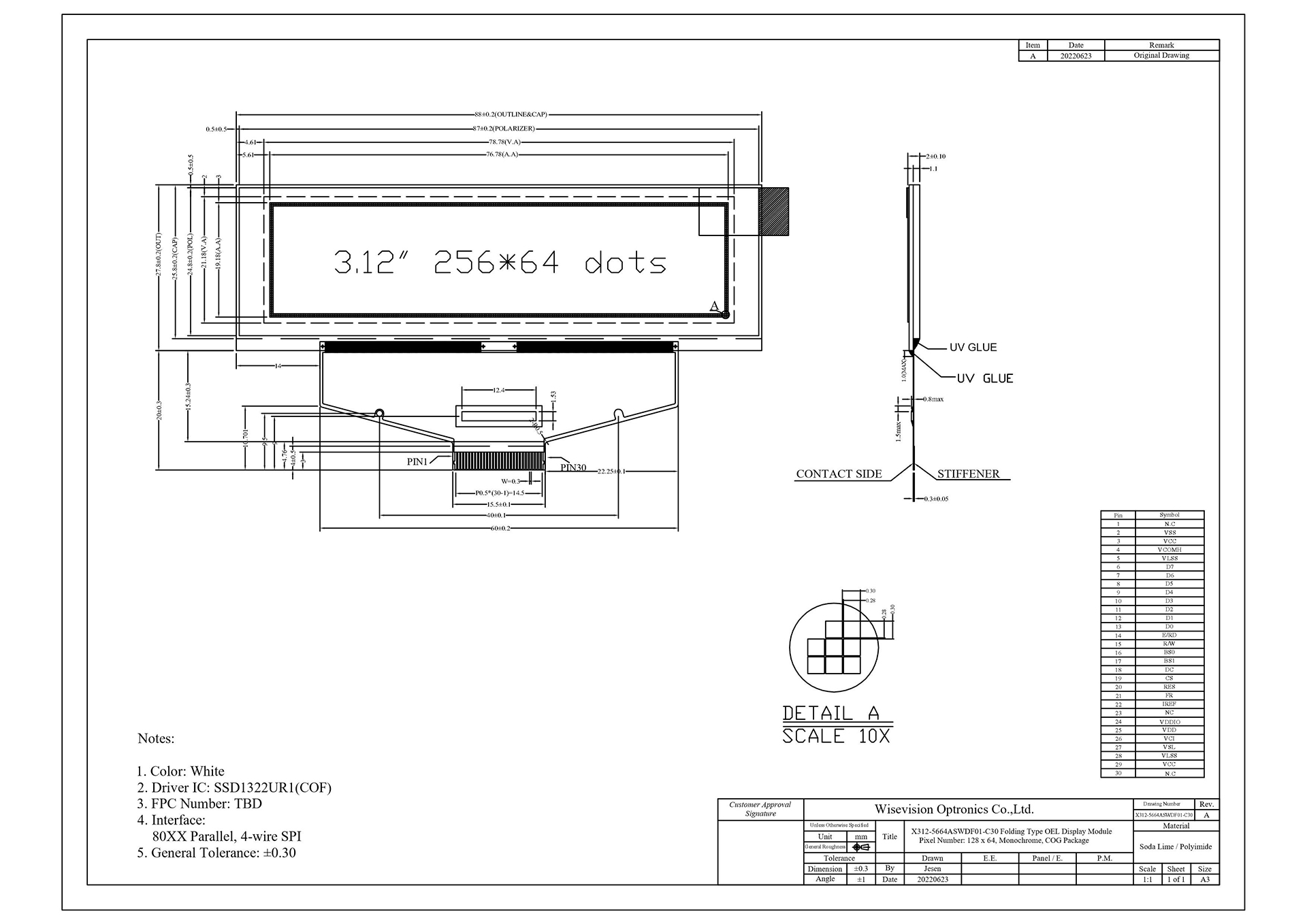

Mechanical Drawing
