3.6 “ Small Size Round 544×506 Dots TFT LCD Display Module Screen

Short Description:


  • Model No: TFT036B002
  • Size: 3.6 inch
  • Pixels: 544×506 Dots
  • A.A: 89.76×83.49 mm
  • Outline: 95.46×91.81×2.30 mm
  • View Direction: IPS/Free
  • Interface: LVDS-DSI
  • Brightness(cd/m²): 400
  • Driver IC: ST72566
  • Touch Panel: Without Touch Panel
  • Product Detail

    Product Tags

    General Description

    Display Type IPS-TFT-LCD
    Brand name WISEVISION
    Size 3.6 inch
    Pixels 544×506 Dots
    View Direction IPS/Free
    Active Area (A.A) 89.76×83.49 mm
    Panel Size 95.46×91.81×2.30 mm
    Color arrangement RGB Vertical stripe
    Color 16.7M
    Brightness 400 (Min)cd/m²
    Interface LVDS-DSI
    Pin Number 15
    Driver IC ST72566
    Backlight Type 8 CHIP-WHITE LED
    Voltage 3.0~3.6 V
    Weight TBD
    Operational Temperature -20 ~ +70 °C
    Storage Temperature -30 ~ +80°C

    Product Information

    TFT036B002 is a circle IPS TFT-LCD screen with a 3.6-inch diameter display with resolution 544×506 pixels. This round TFT display comprises an IPS TFT-LCD panel built with a ST72566 driver IC that can support LVDS-DSI interface.

    TFT036B002 is adopted IPS (In plane Switching) panel, which has the advantage of higher contrast, true black background when the display or pixel is off and wider viewing angle of Left:85 / Right:85 / Up:85/ Down:85 degree (typical), contrast ratio 1,200:1 (typical value), brightness 400 cd/m² (typical value).

    The power supply voltage of LCM is from 3.0V to 3.6V, the typical value of 3.3V. The display module is suitable for compact devices, medical instruments, home automation products, white products, video systems, etc. It can be operating at temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃.

    Experience the future of visual technology with TFT036B002. Its cutting-edge features, superior image quality, and sleek design make it ideal for taking your viewing experience to new heights. Upgrade your device now and discover the TFT036B002 difference.

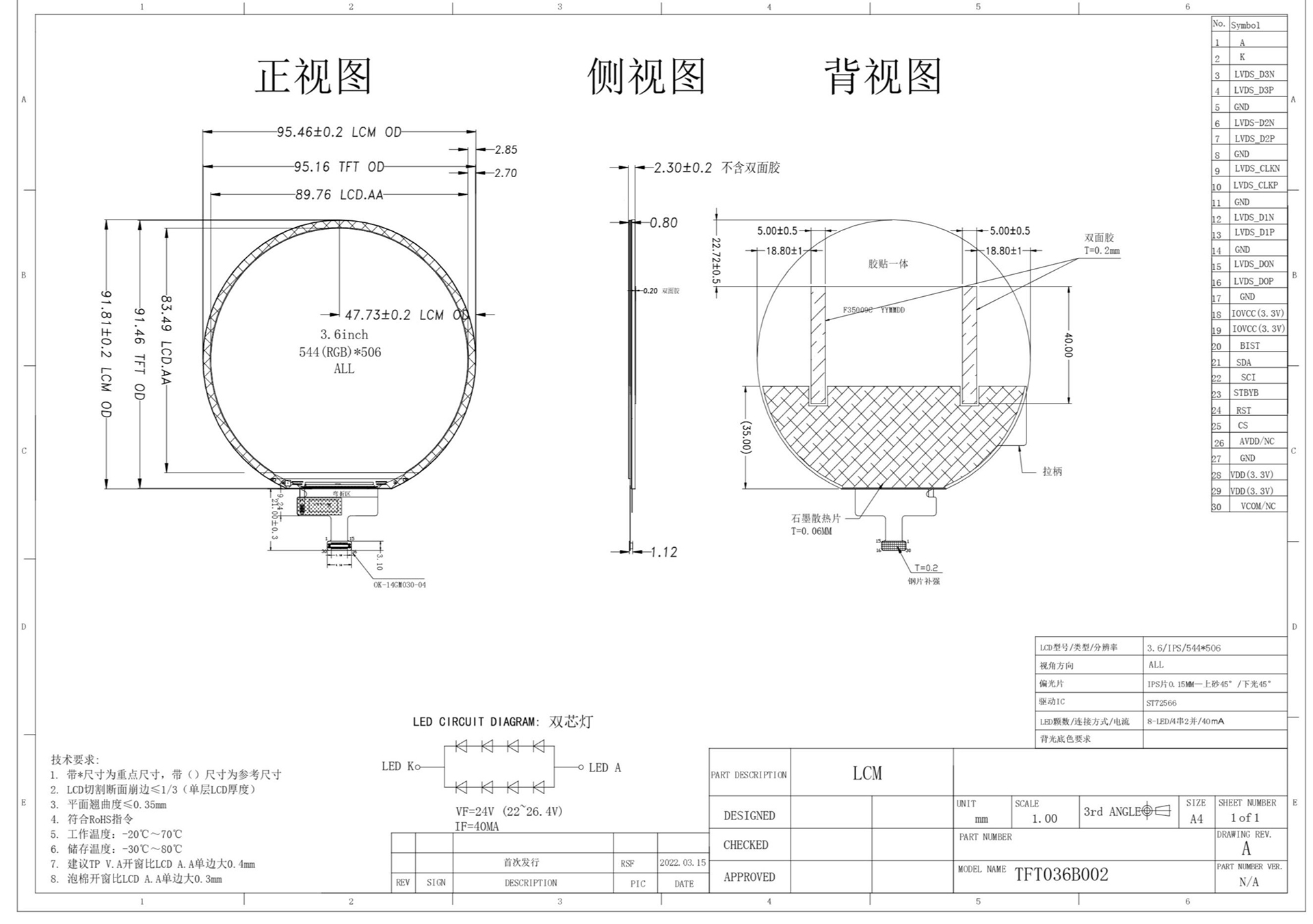

    Mechanical Drawing

    360-TFT5

    Product Information

    The 3.6-inch small-size circular TFT LCD display module screen is built with the most advanced technology to provide excellent performance and durability. Its compact size allows easy integration into a variety of devices without compromising functionality. The high-resolution display ensures every detail is accurately captured, making it ideal for applications where visual clarity is critical.

    Featuring a circular shape, this LCD display module offers a unique and modern design that will make your product stand out from the competition. The interface is user-friendly, making it easy to operate and navigate the different display functions. The module also supports multiple display modes such as full color, grayscale, and monochrome, allowing you to adapt to different application needs.

    Additionally, the 3.6-inch small-sized circular TFT LCD display module screen is designed with durability in mind. It has a sturdy construction that can withstand harsh environments, ensuring its longevity even in challenging conditions. The display also features advanced backlight technology, providing excellent visibility in both low-light and bright environments.

    In addition to its impressive display capabilities, this LCD module features a plug-and-play design for easy installation and configuration. It is compatible with multiple platforms and integrates seamlessly into your existing systems. This versatility makes it a perfect choice for OEMs and developers who want to enhance the visual experience of their products without the hassle of extensive redesigns.

    The 3.6-inch small-size circular TFT LCD module screen is a cutting-edge solution for small-size electronic applications. With its compact size, high-resolution display and advanced features, it's guaranteed to enhance the visual experience of your products. Whether you are designing a smart watch, portable medical device, or any other small electronic product, this LCD display module is the ultimate choice for outstanding image quality and performance. Don't miss out on this game-changing product that will take your creations to the next level. new heights.
