3.95 “ Small Size 480 RGB×480 Dots TFT LCD Display Module Screen
General Description
| Display Type | IPS-TFT-LCD |
| Brand name | WISEVISION |
| Size | 3.95 inch |
| Pixels | 480×480 Dots |
| View Direction | IPS/Free |
| Active Area (A.A) | 36.72×48.96 mm |
| Panel Size | 40.44×57×2 mm |
| Color arrangement | RGB Vertical stripe |
| Color | 262K |
| Brightness | 350 (Min)cd/m² |
| Interface | SPI / MCU/RGB |
| Pin Number | 15 |
| Driver IC | ST7701S |
| Backlight Type | 8 CHIP-WHITE LED |
| Voltage | 2.5~3.3 V |
| Weight | 1.2 g |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |
Product Information
TFT040B039 is a 3.95-inch square IPS TFT-LCD module composed of 480 x 480 pixels.
The module supports RGB interface and adopts IPS panel, with left: 80/right: 80/top: 80/bottom: 80 degrees (typical value) wide viewing angle, contrast 1000:1 (typical value), brightness 350 cd/m² (typical value), bright glass panel, aspect ratio 1:1.
The TFT040B039 module is built-in with ST7701S controller IC, and the interface power supply voltage range is 2.5V~3.3V, with a typical value of 2.8V.
TFT040B039 model has a working temperature range of -20 ℃ to+70 ℃; The storage temperature range is -30 ℃~+80 ℃.
It is very suitable for applications such as medical instruments, handheld devices, security monitoring system.

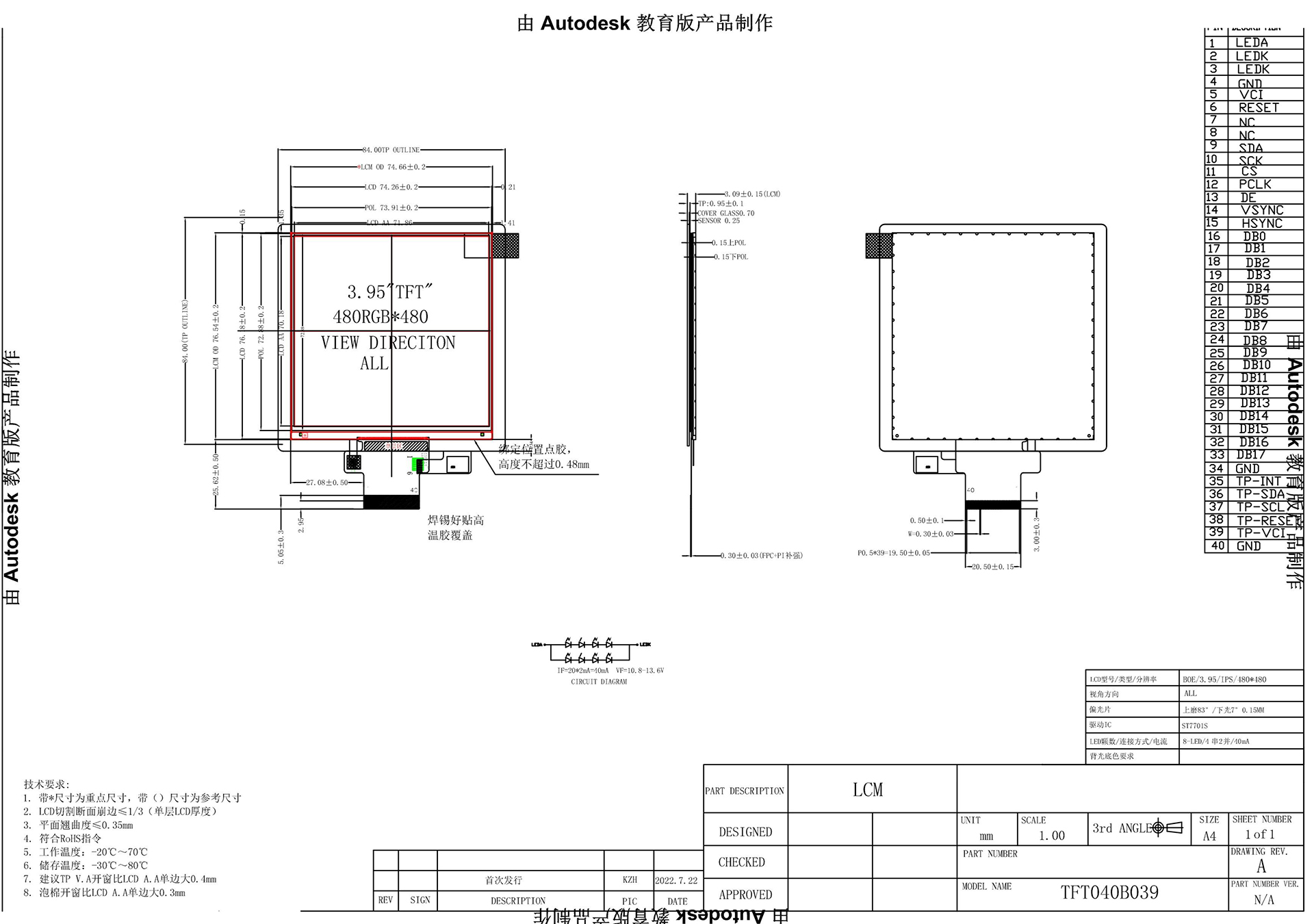

Mechanical Drawing
